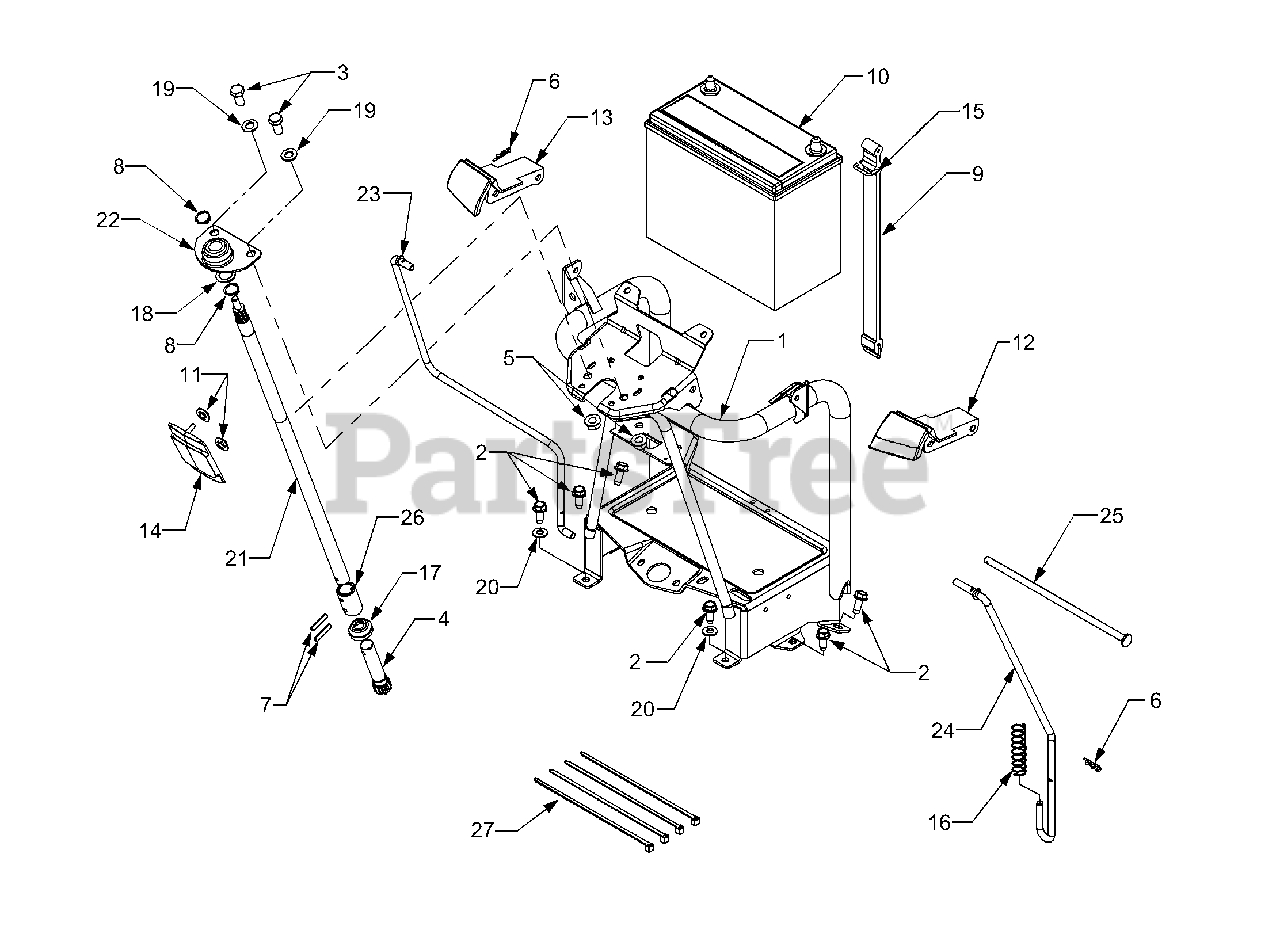

3184 (14A-641L100) - Cub Cadet Garden Tractor (SN: 1K010G & After) Pedestal And Connections Parts Diagram

Garden Tractor

Pedestal And Connections Parts Diagram

  • Title
1

Cub Cadet 603-0386A-0637

Pedestal Assembly

$

$

Not available

2

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0216

Screw, Hex Cap 3/8-16 x .75 GR5

$4.49

$

In Stock, Qty 14

0

4

Cub Cadet 711-1423

Shaft, Lower Steering

$

$

Not available

5

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 715-0120

Pin, Spirol, 3/16 x 1.0

$10.99

$

In Stock, only 1 left!

0

8

Cub Cadet 716-0115

Ring, Retaining, .56 Dia Shaft
(Superseded to 916-0115)

$

$

Not available

9

Cub Cadet 723-0467

Strap, Battery

Note: (Includes Ref No. 15)

$

$

Not available

10

Cub Cadet 725-3255

Battery
(Superseded to 925-3255)

$

$

Not available

11

Cub Cadet 726-3047

Push Nut, .188 Dia.
(Superseded to 926-3047)

$4.49

$

In Stock, only 4 left!

0

12

Cub Cadet 731-3225

Lever, Park Brake

$22.99

$

In Stock, Qty 6

0

13

Cub Cadet 731-3226

Lever, Cruise

$30.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 731-3323

Cover, Fixed Steering

$

$

Not available

15

Cub Cadet 732-0696

Hook, Wire Rectangular

$4.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 732-0870

Spring, Compression, .676 x 2.57
(Superseded to 732-0870A)

$

$

Not available

17

Cub Cadet 735-0269

Boot, Shaft Cover.

$11.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0116

Washer, Flat, .635 x .93 x .06
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

19

Cub Cadet 736-0185

Washer, Flat, .375 x .738 x .063

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0275

Washer, Flat, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 738-3170

Shaft, Upper Steering

$

$

Not available

22

Cub Cadet 741-3111

Bearing, Steering Support

$

$

Not available

23

Cub Cadet 747-3327

Rod, Cruise Control

$

$

Not available

24

Cub Cadet 747-3328

Rod, Parking Brake

$

$

Not available

25

Cub Cadet 747-3354

Rod, Cruise/Brake Pivot

$

$

Not available

26

Cub Cadet 750-1229

Sleeve, Fixed Steering

$

$

Not available

27

Cub Cadet 725-0157

Cable Tie, Harness

$3.99

$

In Stock, Qty 20+

0
