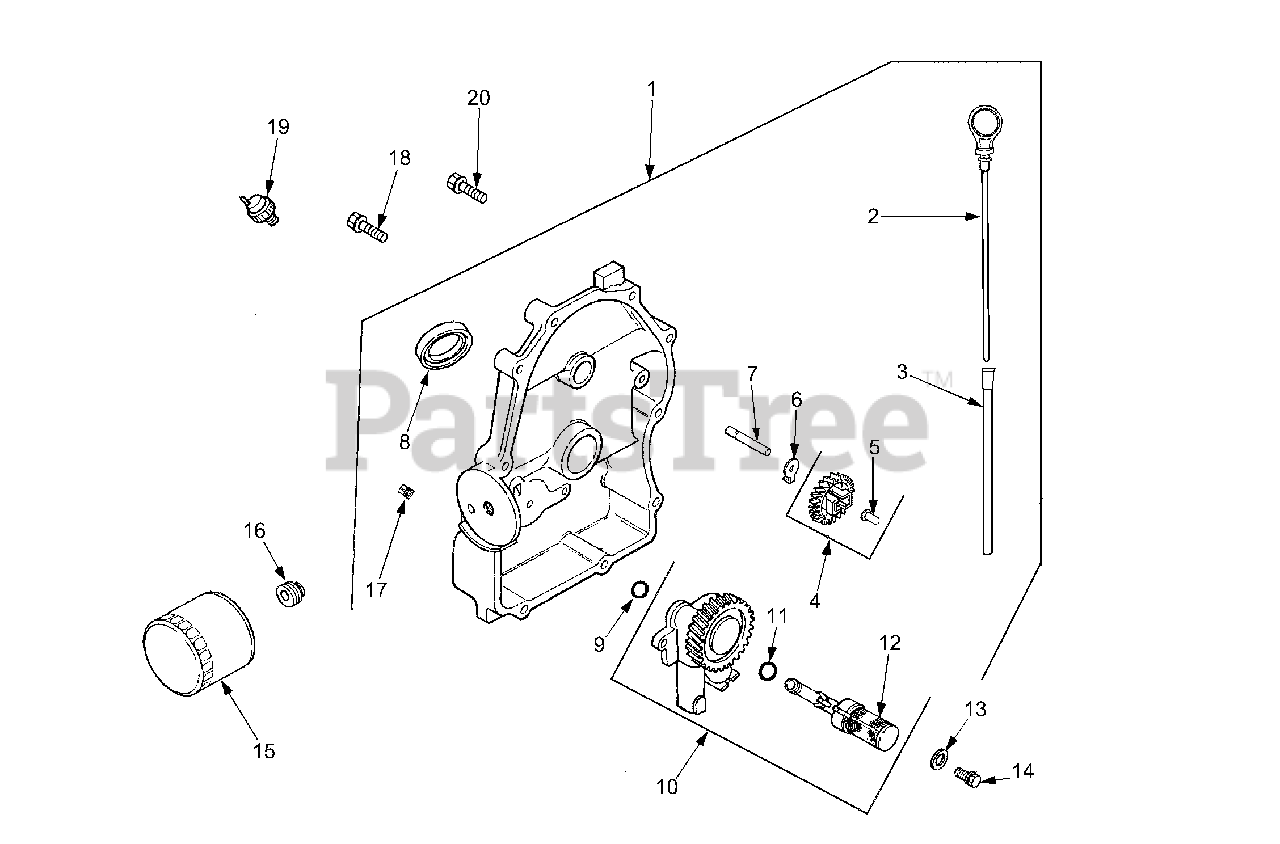

3184 (14A-641L100) - Cub Cadet Garden Tractor (SN: 1K010G & After) Oil Pan/Lubrication Parts Diagram

Garden Tractor

Oil Pan/Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-54-009-07

Plate, Closure Assembly
(Superseded to KH-24-009-214-S)

Note: (Includes 2-12, 17)

$430.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-038-10-S

Dipstick

$12.99

$

In Stock, Qty 5

0

3

Cub Cadet KH-24-755-121-S

Tube, Dipstick

Note: (Includes 2)

$35.99

$

In Stock, Qty 6

0

4

Cub Cadet KH-24-043-12

Kit, Governor Gear

Note: (Includes 5)

$

$

Not available

5

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

6

Cub Cadet KH-52-448-02

Tab, Locking
(Superseded to KH-24-448-01-S)

$2.49

$

In Stock, only 2 left!

0

7

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

8

Cub Cadet KH-52-032-08

Seal, Oil (PTO End)
(Superseded to KH-25-032-06-S)

$10.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-24-153-08

O-Ring

$

$

Not available

10

Cub Cadet KH-24-393-10

Oil Pump Assembly
(Superseded to KH-24-393-53-S)

Note: (Includes 11,12)

$

$

Not available

11

Cub Cadet KH-24-153-01

O-Ring, Oil Pick-Up

$

$

Not available

12

Cub Cadet KH-24-381-04

Pick-Up, Oil

$

$

Not available

13

Cub Cadet KH-M-0631005

Washer, Plain
(Superseded to KH-M-631005)

$

$

Not available

14

Cub Cadet KH-M-0645025

Screw, Hex Flange M6 x 1 x 25
(Superseded to KH-M-645025-S)

$2.49

$

In Stock, only 2 left!

0

15

Cub Cadet KH-12-050-08

Filter, Oil
(Superseded to KH-12-050-01-S)

$13.99

$

In Stock, Qty 20+

0

16

Cub Cadet KH-24-136-01

Nipple, Oil Filter
(Superseded to KH-24-136-09-S)

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-25-139-60-S

Plug, Pipe 1/8"

$3.49

$

In Stock, only 2 left!

0

18

Cub Cadet KH-24-086-16

Screw, Hex Flange M8 x 1.25 x 45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 7

0

19

Cub Cadet KH-25-099-24

Switch, Pressure
(Superseded to KH-25-099-27-S)

$15.99

$

In Stock, only 4 left!

0

20

Cub Cadet KH-24-086-17

Screw, Hex Flange M8 x 1.25 x 45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 7

0
