3184 (14A-641L100) - Cub Cadet Garden Tractor (SN: 1K010G & After) Fender And Running Board Parts Diagram

Garden Tractor

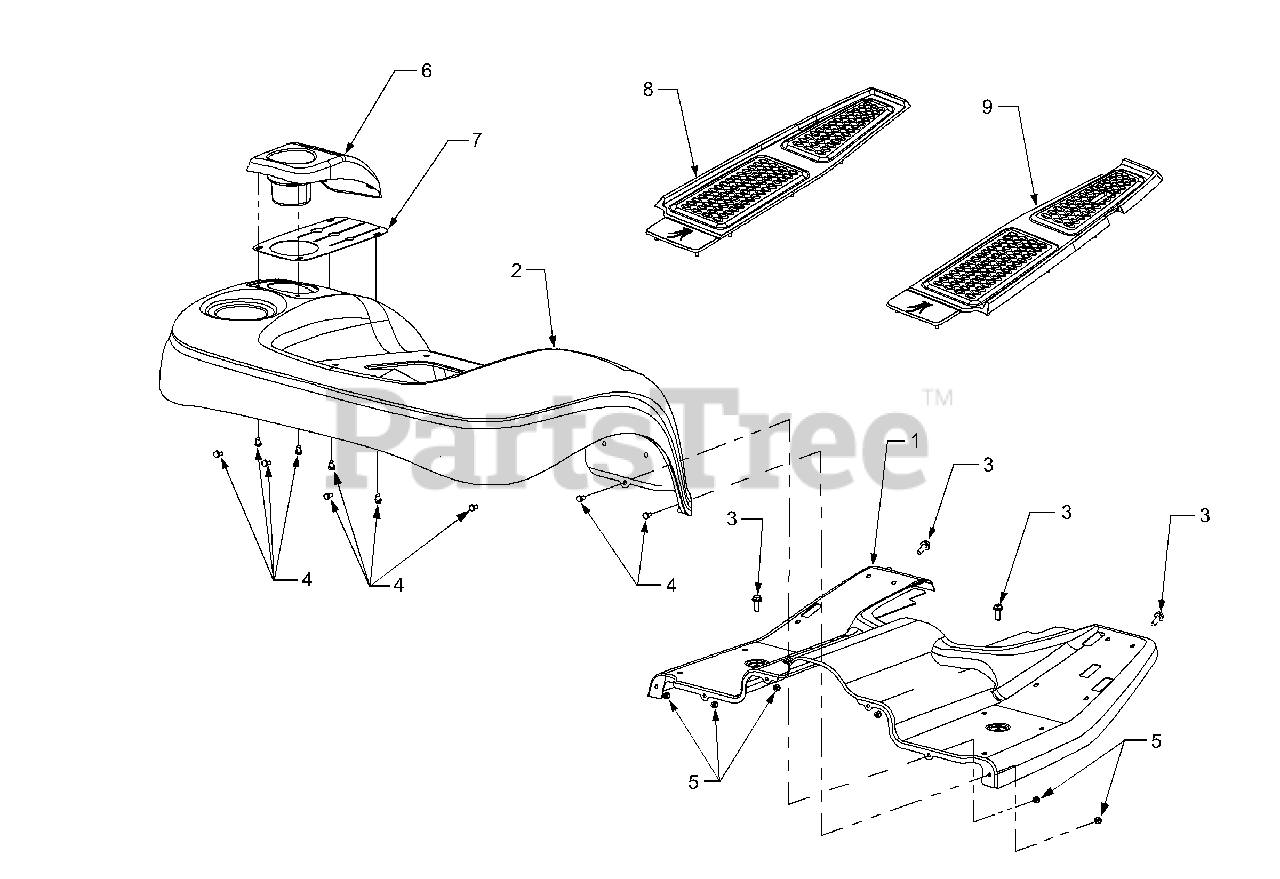

Fender And Running Board Parts Diagram

  • Title

1

Cub Cadet 703-3622-0716

Running Board

$428.99

$

Usually ships in 3-6 days

0

Cub Cadet 777D04383

Graphic, All Shaft Drive

$

$

Not available

Cub Cadet 777I20860

Graphic, Starting Instructions

$

$

Not available

Cub Cadet 777I20859

Graphic, Height Adjustment

$

$

Not available

Cub Cadet 777S30017

Graphic, Warning

$

$

Not available

2

Cub Cadet 703-3512-0716

Fender
(Superseded to 903-3512-0716)

$

$

Not available

Cub Cadet 777D04792

Graphic, 3000 Series
(Superseded to 777D06086)

$

$

Not available

3

Cub Cadet 710-0602

Screw, Hex Wash. Hd. Tapp 5/16-18 x 1.0

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 x .5 GR5

$4.99

$

In Stock, only 1 left!

0

5

Cub Cadet 712-0324

Nut, Hex Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

6

Cub Cadet 731-3239

Cover, Lift Lever

$24.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 731-3253

Flap, Lift Lever

$

$

Not available

8

Cub Cadet 735-0275

Pad. Floor LH.

$59.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 735-0276

Pad. Floor RH

$59.99

$

Usually ships in 3-6 days

0
