3184 (14A-634L100) - Cub Cadet Garden Tractor (SN: 1J310G & Before) Transmission - Differential Parts Diagram

Garden Tractor

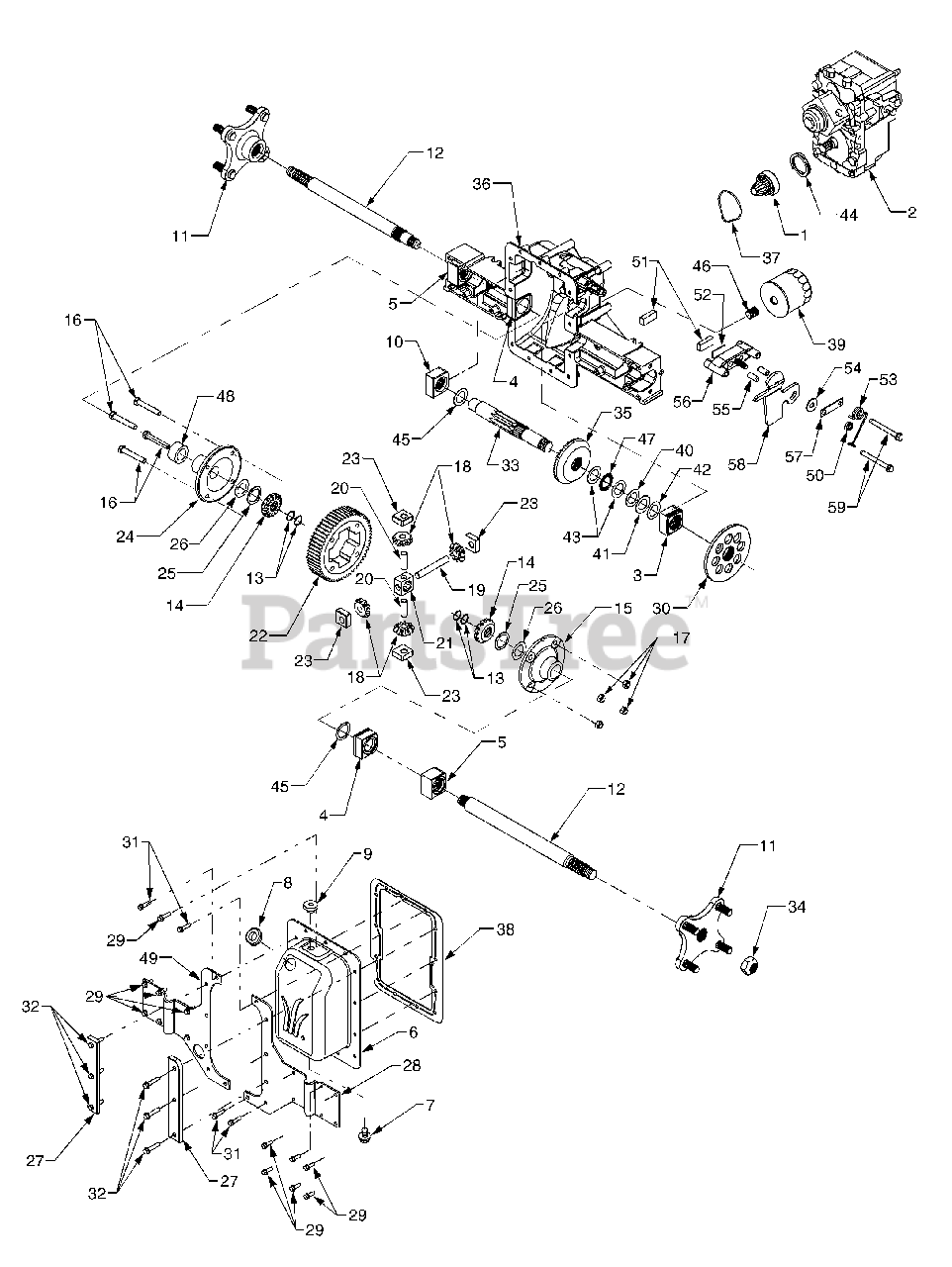

Transmission - Differential Parts Diagram

  • Title

Cub Cadet 618-3221

Transmission Assembly Complete
(Superseded to 918-3221)

Note: DOES NOT include Ref. Nos. 1, 2, 11, 34, 37, 39, 44 and 46.

$

$

Not available

1

Cub Cadet 617-3001

Gear Assembly, Pinion 13T

$288.99

$

Usually ships in 3-6 days

0

Cub Cadet 741-3037

Bearing, Ball
(Superseded to 941-3037)

$41.99

$

In Stock, Qty 14

0

2

Cub Cadet 759-3967

Hydrostatic Transmission Assy. Kit

$

$

Not available

Cub Cadet 618-3214

Hydrostatic Transmission Assy. - with Splined Input Shaft
(Superseded to 918-3214)

Note: NOTE: For components see separate parts breakdown.

$2213.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618-3211

Bearing Block Assembly, Needle

$

$

Not available

4

Cub Cadet 618-3216

Bearing Block Assembly

$

$

Not available

5

Cub Cadet 618-3146

Bearing Block Assembly

$

$

Not available

6

Cub Cadet 618-3203

Cover Assembly, Rear

Note: Includes Ref. No. 7

$

$

Not available

7

Cub Cadet 710-1633

Plug, Drain, M14 x 1.5 x .827

$14.99

$

In Stock, only 2 left!

0

8

Cub Cadet 735-0277

Grommet, Rubber
(Superseded to 735-0277A)

$10.99

$

In Stock, only 2 left!

0

9

Cub Cadet 735-0279

Grommet

$7.49

$

In Stock, only 2 left!

0

10

Cub Cadet 618-3163

Bearing Block Assembly

$

$

Not available

11

Cub Cadet 618-0365

Hub Assembly, Wheel
(Superseded to 618P0579B)

$77.99

$

In Stock, only 3 left!

0

12

Cub Cadet 711-1386

Axle Shaft,

$

$

Not available

13

Cub Cadet 716-0172

Retaining Ring
(Superseded to 916-0172)

$8.49

$

In Stock, only 3 left!

0

14

Cub Cadet 717-1119

Gear, Spur, 14T

$44.99

$

In Stock, only 3 left!

0

15

Cub Cadet 719-3165

Housing, Diff. Cover RH

$

$

Not available

16

Cub Cadet 710-0331

Hex Cap Screw, 3/8-24 x 2.25 GR5

$6.99

$

In Stock, Qty 7

0

17

Cub Cadet 712-3054

Nut, Hex Lock, 3/8-24

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 717-1120

Gear, Differential 10T

$32.99

$

In Stock, only 4 left!

0

19

Cub Cadet 717-1173

Shaft, Cross, .5 x 3.485

$38.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 717-1178

Shaft, Cross, Special

$28.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 717-1180

Differential Pinion Block

$33.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 717-3466

Gear, Spur 60T

$280.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 718-3101

Block, Thrust Miter

$13.99

$

In Stock, only 2 left!

0

24

Cub Cadet 719-3164

Housing, Differential Cover LH

$

$

Not available

25

Cub Cadet 736-0420

Washer, Flat, 1.0 x 1.56 x .040
(Superseded to 936-0420)

$

$

Not available

26

Cub Cadet 736-0424

Washer, Flat, 1.0 x 1.56 x .020
(Superseded to 936-0424)

$6.99

$

In Stock, only 3 left!

0

27

Cub Cadet 703-3188A

Block, Transmission Cover

$

$

Not available

28

Cub Cadet 603-0701

Plate, Trans. Support RH

$

$

Not available

29

Cub Cadet 710-0642

Screw, Hex Wash. Hd. Tapp 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 761-0215

Disc, Brake

$20.99

$

In Stock, only 1 left!

0

31

Cub Cadet 710-0788

Screw, Hex Wash. Hd. Tapp 1/4-20 x 1.0

$7.49

$

In Stock, only 2 left!

0

32

Cub Cadet 710-0809

Screw, Hex Wash. Hd. Tapp 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

33

Cub Cadet 711-1385

Shaft, Output 9T
(Superseded to 711-1385A)

$180.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 712-1329

Nut, Lock, 3/4-16

$12.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 717-3449

Gear, Bevel 54T

$427.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 719-3150A

Housing, Differential

$

$

Not available

37

Cub Cadet 721-0261

O-Ring, 2.75 x .103

$9.99

$

In Stock, only 1 left!

0

38

Cub Cadet 721-0467

Gasket
(Superseded to 721P0467)

$49.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 723-3014

Filter, Oil
(Superseded to 923-3014)

$20.99

$

In Stock, Qty 20+

0

40

Cub Cadet 736-0423

Washer, Flat Shim, 1.0 x 1.56 x .010

$

$

Not available

41

Cub Cadet 736-0424

Washer, Flat Shim, 1.0 x 1.56 x .020
(Superseded to 936-0424)

$6.99

$

In Stock, only 3 left!

0

42

Cub Cadet 736-0431

Washer, Flat Shim, 1.0 x 1.56 x .015
(Superseded to 936-0431)

$

$

Not available

43

Cub Cadet 736-0615

Washer, Thrust, 1.007 x 1.542 x .03

$8.99

$

In Stock, only 2 left!

0

44

Cub Cadet 736-0619

Washer, Spring

$18.99

$

In Stock, only 1 left!

0

45

Cub Cadet 736-3046A

Washer, Flat, 1.01 x 1.86 x .060

$8.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 737-3022

Fitting, Filter Nipple
(Superseded to 937-3022)

$15.99

$

In Stock, only 1 left!

0

47

Cub Cadet 741-3083

Bearing, Needle Thrust

$16.99

$

In Stock, only 1 left!

0

48

Cub Cadet 750-3254

Spacer, Axle, 1.0 x 1.665 x .71

$

$

Not available

49

Cub Cadet 603-0699

Plate, Trans. Support LH

$

$

Not available

50

Cub Cadet 712-0273

Nut, Hex Insert Lock, 5/16-24
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 717-0678

Pad, Brake
(Superseded to 917-0678)

$7.49

$

In Stock, only 3 left!

0

52

Cub Cadet 717-0682

Plate, Puck
(Superseded to 917-0682)

$9.99

$

In Stock, Qty 7

0

53

Cub Cadet 732-0925

Spring, Torsion

$9.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 736-0371

Washer, Flat, .343 x .88 x .062

$4.49

$

In Stock, only 3 left!

0

55

Cub Cadet 741-0343

Pin, Brake Actuator

$10.99

$

In Stock, Qty 7

0

56

Cub Cadet 761-0207A

Yoke, Brake

$40.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 761-0208

Bracket, Brake Anti-Rotation

$7.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 761-3074

Arm, Brake Actuator

$24.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 710-1206

Screw, Hex Wash. Hd. Tapp 1/4-20 x 2.375

$7.49

$

In Stock, Qty 6

0

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz. Tube

$70.99

$

Usually ships in 3-6 days

0

Cub Cadet 737-3120

Drive System Fluid Plus - Quart
(Superseded to 490-000-C051)

Note: (Transmission Oil Capacity 4.5 Qts.)

$21.99

$

In Stock, Qty 20+

0

Cub Cadet 737-3121

Drive System Fluid Plus - Gallon

Note: (Transmission Oil Capacity 4.5 Qts.)

$77.99

$

In Stock, only 2 left!

0
