31823 (832) - Toro 32" Snow Thrower (SN: 006000001 - 006999999) (1976) TRACTION ASSEMBLY Parts Diagram

32" Snow Thrower

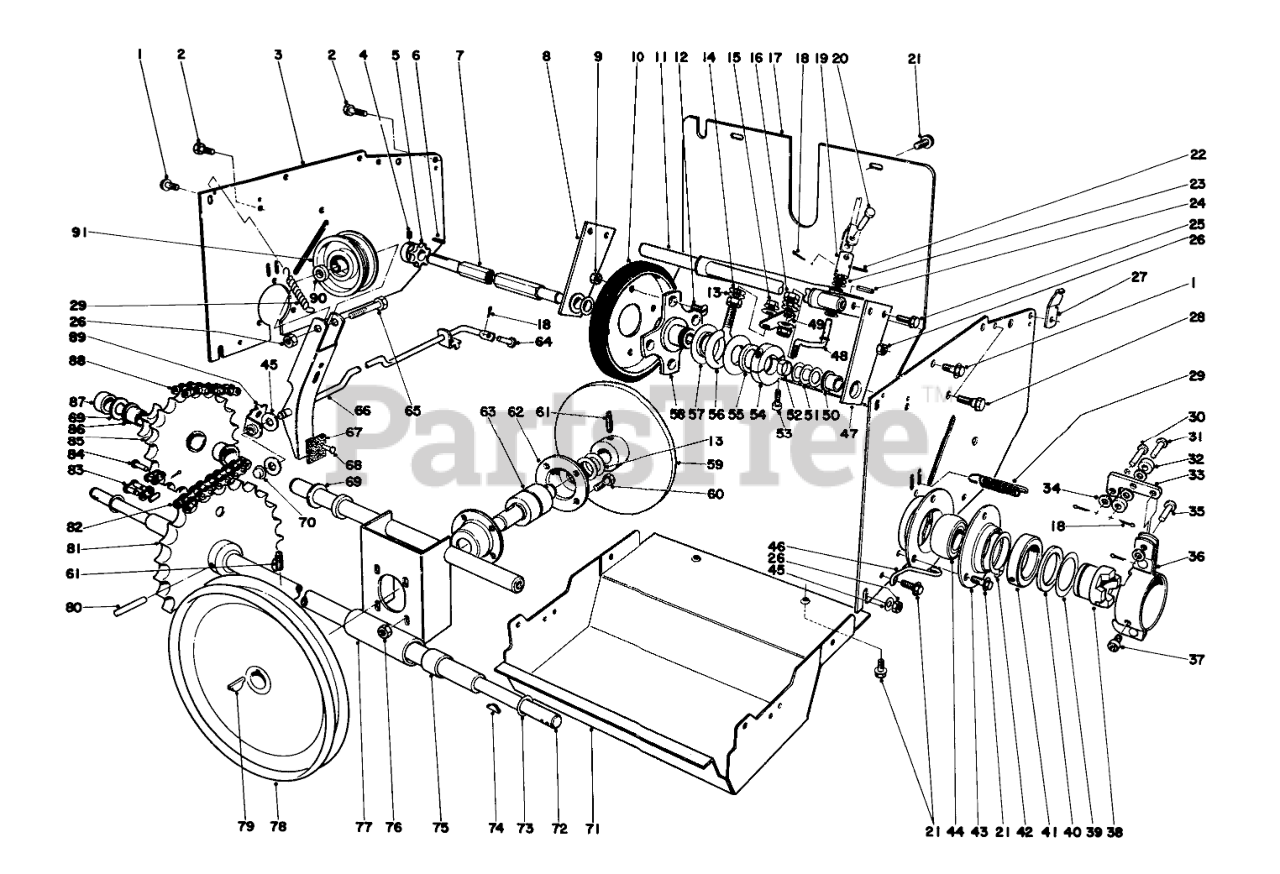

TRACTION ASSEMBLY Parts Diagram

  • Title

1

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

2

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

3

Toro 22-7990

Side Plate Drive

$

$

Not available

4

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

5

Toro 5-9820

SPROCKET

$100.99

$

Usually ships in 3-6 days

0

6

Toro 34168

Key

$

$

Currently unavailable

7

Toro 11-8940

FRICTION WHEEL SHAFT

$

$

Not available

8

Toro 11-8040

Hex Shaft Mount (Incl. Ref. #50)

$107.99

$

Usually ships in 3-6 days

0

9

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

10

Toro 3-5461

Disc
(Superseded to 40-8170)

$85.99

$

In Stock, only 4 left!

0

11

Toro 11-8010

Bracket Dead Shaft

$

$

Not available

12

Toro 32108-94

5/16-18X5/8 FLT HD MS

$

$

Not available

13

Toro 325645

Washer

$

$

Currently unavailable

14

Toro 3290-301

WASHER-SPRING
(Superseded to 121-4605)

$4.49

$

In Stock, only 1 left!

0

15

Toro 32128-12

NUT-LOCK, FLANGE

$1.99

$

Usually ships in 3-6 days

0

16

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

17

Toro 8-7950

REAR COVER R

$135.99

$

Usually ships in 3-6 days

0

18

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

19

Toro 11-8070

U JOINT TUBE

$

$

Not available

20

Toro 283-31

CLEVIS PIN

$

$

Not available

21

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 7

0

22

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

23

Toro 3-6712

Spacer

$

$

Not available

24

Toro 32121-11

PIN-ROLL

$0.99

$

In Stock, only 2 left!

0

25

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

26

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

27

Toro 22-8000

HANDLE MTG BRKT

$

$

Not available

28

Toro 11-8140

SHOULDER SCREW

$

$

Not available

29

Toro 10-3890

EXTENSION SPRING

$27.99

$

Usually ships in 3-6 days

0

30

Toro 283-29

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

31

Toro 283-17

PIN-CLEVIS

$6.49

$

Usually ships in 3-6 days

0

32

Toro 10-3910

CLUTCH ROLLER

$

$

Not available

33

Toro 20-1050

CLUTCH CAM ARM

$18.99

$

Usually ships in 3-6 days

0

34

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

35

Toro 283-16

PIN-CLEVIS

$7.49

$

Usually ships in 3-6 days

0

36

Toro 20-2290

CLUTCH MT BRKT ASM

$

$

Not available

37

Toro 327442

Hex Socket Capscrew

$

$

Currently unavailable

38

Toro 20-2870

Clutch Wheel

$

$

Not available

39

Toro 10-3980

THRUST WASHER

$

$

Not available

40

Toro 256-214

THRUST BEARING

$

$

Not available

41

Toro 10-3860

CLUTCH MOUNT COLLAR

$

$

Not available

42

Toro 32151-35

RING-RETAINING, EXTERNAL

$10.99

$

Usually ships in 3-6 days

0

43

Toro 20-1020

BEARING FLANGE
(Superseded to 57-8050)

$236.99

$

Usually ships in 3-6 days

0

44

Toro 20-1010

BEARING
(Superseded to 57-8280)

$11.99

$

In Stock, only 1 left!

0

45

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

46

Toro 11-0610

Clutch Retainer
(Superseded to 41-8570)

$

$

Not available

47

Toro 11-8030

Hex Shaft Mount(Incl. Ref. #50)
(Superseded to 26-6330)

$

$

Not available

48

Toro 11-8090

CONNECTION ROD

$

$

Not available

49

Toro 11-8060

SHIFT ROD PIVOT
(Superseded to 33113-020)

$0.99

$

In Stock, Qty 10

0

50

Toro 256-219

BUSHING

$9.49

$

In Stock, only 1 left!

0

51

Toro 5-7570

WASHER-FLAT

$8.49

$

Usually ships in 3-6 days

0

52

Toro 11-3180

SPLIT SPACER

$

$

Not available

53

Toro 3274-26

SCREW-HSH

$2.49

$

Usually ships in 3-6 days

0

54

Toro 204610

Collar

$

$

Currently unavailable

55

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

56

Toro 11-8050

SLIDER RING COLLAR
(Superseded to 78-1790)

$63.99

$

Usually ships in 3-6 days

0

57

Toro 11-8080

SLIDER RING

$

$

Not available

58

Toro 20-3310

TRACTION DISC HUB

$

$

Not available

59

Toro 234970

Friction Plate

$

$

Currently unavailable

60

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

61

Toro 32424

Set Screw

$

$

Currently unavailable

62

Toro 10-0070

HOUSING BEARING

$

$

Not available

63

Toro 234950

Friction Plate Shaft

$

$

Currently unavailable

64

Toro 283-1

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

65

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

66

Toro 25-5360

Idler (Incl. Ref. #67-68)

$

$

Not available

67

Toro 20-3100

BRAKE PAD
(Superseded to 66-8050)

$

$

Not available

68

Toro 3295-23

.185 DIA X .375 RT +

$11.99

$

Usually ships in 3-6 days

0

69

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

70

Toro 3290-383

PUSH NUT
(Superseded to 93-3236)

$

$

Not available

71

Toro 11-7140

LOWER SHIELD R

$

$

Not available

72

Toro 8-8760

Axle Shaft

$

$

Not available

73

Toro 3-0737

WASHER

$9.49

$

In Stock, only 3 left!

0

74

Toro 3257-19

1/4X1-1/16 HI-PRO KEY

$

$

Not available

75

Toro 256-232

BUSHING

$

$

Not available

76

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

77

Toro 25-5190

Bulkhead (Incl. Ref. #75)

$

$

Not available

78

Toro 5-7410

Pulley

$

$

Not available

79

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

80

Toro 3285-11

PIN-GROOVED

$2.49

$

In Stock, only 1 left!

0

81

Toro 8-8770

Sprocket

$

$

Not available

82

Toro 8-8810

Chain Lower

$

$

Not available

83

Toro 27104

Connecting Link

$

$

Not available

84

Toro 2710-10

1/4 OFFSET LINK

$

$

Not available

85

Toro 5-7070

Sprocket (Incl. Ref. #86)

$

$

Not available

86

Toro 256-215

3/4ID X 3/4LG BSHG

$

$

Not available

87

Toro 23-7250

SPACER-IDLER

$

$

Not available

88

Toro 5-9430

1/4 X 42 CHAIN W/LINK

$157.99

$

Usually ships in 3-6 days

0

89

Toro 20-2940

Bracket-Clutch

$

$

Not available

90

Toro 20-0010

Spacer

$

$

Not available

91

Toro 34244

Idler Pulley

$

$

Currently unavailable
