31823 (832) - Toro 32" Snow Thrower (SN: 006000001 - 006999999) (1976) HANDLE ASSEMBLY Parts Diagram

32" Snow Thrower

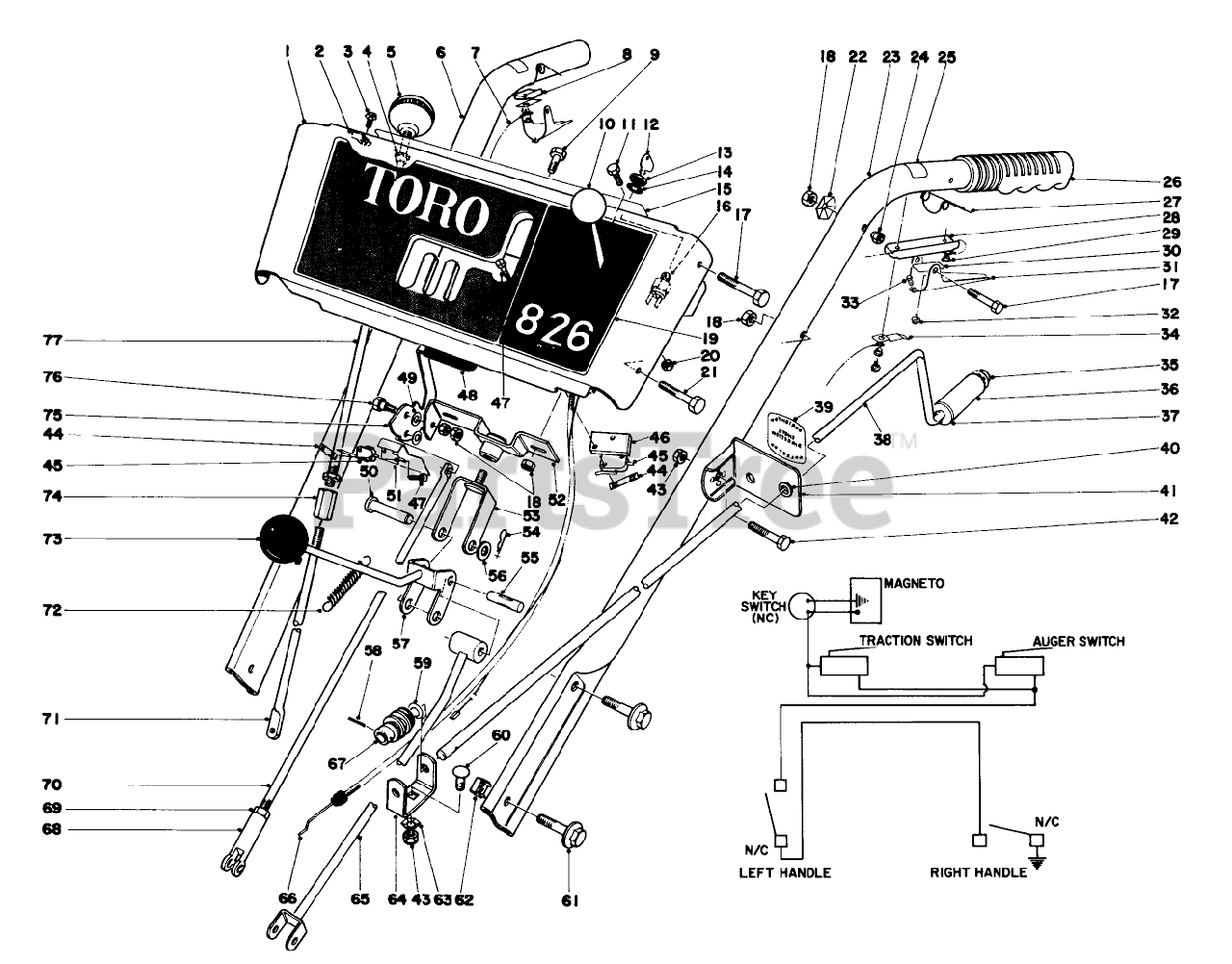

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 6-3719

Escutcheon Plate (Incl. Ref. #15 & 19) (Model 31763)
(Superseded to 8-1559)

$

$

Not available

Toro 6-3729

Escutcheon Plate (Incl. Ref. #15 & 19) (Model 31823)

Note: Not illustrated

$

$

Not available

2

Toro 20-2810

PLASTIC CLIP

$

$

Not available

3

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 25S249

Nyliner Bushing

$

$

Currently unavailable

5

Toro 233-10

KNOB-LEVER

$64.99

$

Usually ships in 3-6 days

0

6

Toro 25-5570

Handle Right

$

$

Not available

7

Toro 25-5520

Wire Harness

$

$

Not available

8

Toro 17-5680

Insulator

$

$

Not available

9

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

11

Toro 32140-99

HEX HEAD SEMS 10-24X1/2

$

$

Not available

12

Toro 218-487

Ket (set of 2)

$

$

Not available

13

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

14

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

15

Toro 22-8170

Decal Escutcheon Back
(Superseded to 29-6330)

$

$

Not available

16

Toro 25-6420

Switch
(Superseded to 29-5560)

$17.99

$

In Stock, Qty 11

0

17

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

19

Toro 25-5390

Decal Escutcheon (Model 31763)
(Superseded to 29-6310)

$91.99

$

Usually ships in 3-6 days

0

Toro 25-5400

Decal Escutcheon (Model 31823)
(Superseded to 37-0290)

Note: Not illustrated

$

$

Not available

20

Toro 32146-18

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

21

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

22

Toro 3290-257

Washer

$

$

Not available

23

Toro 25-5160

Handle L.H.

$

$

Not available

24

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

25

Toro 25-6490

Decal Safety Interlock
(Superseded to 29-6360)

$

$

Not available

26

Toro 6-0450

Grip Handle
(Superseded to 74-1380)

$

$

Not available

27

Toro 17-5720

INTERLOCK SPRING

$

$

Not available

28

Toro 20-2110

Insulator

$

$

Not available

29

Toro 17-5700

WASHER INSULATOR

$

$

Not available

30

Toro 17-5690

INTERLOCK CONTACT

$38.99

$

Usually ships in 3-6 days

0

31

Toro 17-5710

Safety Lever

$

$

Not available

32

Toro 32104-75

Screw
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 20+

0

33

Toro 3290-358

1/4 PLASTIC RIVET

$

$

Not available

34

Toro 17-6510

CONTACT BRACKET

$

$

Not available

35

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

36

Toro 20-2060

CHUTE CONTROL GRIP

$

$

Not available

37

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

Toro 8-8570

ROD CHUTE CONTROL

$

$

Not available

39

Toro 25-3990

Decal Chute Direction
(Superseded to 29-6370)

$

$

Not available

40

Toro 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 20+

0

41

Toro 6-3069

Bracket Chute Control Mounting (Incl. Ref. #39 & 40)
(Superseded to 12-7739)

$

$

Not available

42

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

43

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

44

Toro 3290-354

NUT-SPEED

$10.99

$

Usually ships in 3-6 days

0

45

Toro 12-3320

MICRO SWITCH

$71.99

$

In Stock, only 1 left!

0

46

Toro 22-7950

SWITCH MTG PAD

$

$

Not available

47

Toro 3290-313

SCREW-SPH

$7.49

$

Usually ships in 3-6 days

0

48

Toro 11-8970

AUGER CLUTCH HND GRIP

$

$

Not available

49

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

50

Toro 283-5

PIN-CLEVIS

$12.99

$

Usually ships in 3-6 days

0

51

Toro 22-9300

SWITCH BRKT

$

$

Not available

52

Toro 8-7930

SWIVEL BLOCK WA

$

$

Not available

53

Toro 8-7910

Pivot Bracket
(Superseded to 29-6490)

$

$

Not available

54

Toro 3290-322

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

55

Toro 3284-2

3/8 X 1-1/4 ROL

$

$

Not available

56

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

57

Toro 20-3050

Rod Shift
(Superseded to 26-9370)

$

$

Not available

58

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

59

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

60

Toro 3230-15

SCREW-CARR

$1.99

$

In Stock, only 4 left!

0

61

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

62

Toro 3290-370

Retained Nut
(Superseded to 3290-433)

$

$

Not available

63

Toro 3290-238

WASHER-LOCK

$3.99

$

Usually ships in 3-6 days

0

64

Toro 11-7110

WORM BRACKET
(Superseded to 117110-01)

$

$

Not available

65

Toro 11-8100

Trunnion

$

$

Not available

66

Toro 8-7790

Throttle Contrl

$

$

Not available

67

Toro 8-8600

GEAR-WORM, CHUTE

$137.99

$

Usually ships in 3-6 days

0

68

Toro 5-0865

Clevis
(Superseded to 39-4640)

$62.99

$

Usually ships in 3-6 days

0

69

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

70

Toro 20-2310

DRAG LINK

$

$

Not available

71

Toro 22-7970

LOWER WHL CLUTCH ROD

$55.99

$

Usually ships in 3-6 days

0

72

Toro 8-9900

CONT ROD SPRING 0

$

$

Not available

73

Toro 233-21

KNOB

$13.99

$

Usually ships in 3-6 days

0

74

Toro 22-7940

WHL ROD COUPLING

$36.99

$

Usually ships in 3-6 days

0

75

Toro 17-6620

Auger Clutch Handle

$

$

Not available

76

Toro 11-9030

SCREW-SHOULDER

$7.49

$

Usually ships in 3-6 days

0

77

Toro 22-7980

Rod Wheel Clutch

$

$

Not available

Toro 12-8100

Snow Cab
(Superseded to 42-3380)

Note: Optional equipment

$587.99

$

Usually ships in 3-6 days

0
