31823 (832) - Toro 32" Snow Thrower (SN: 005000001 - 005999999) (1975) AUGER ASSEMBLY (MODEL NO. 31823) Parts Diagram

32" Snow Thrower

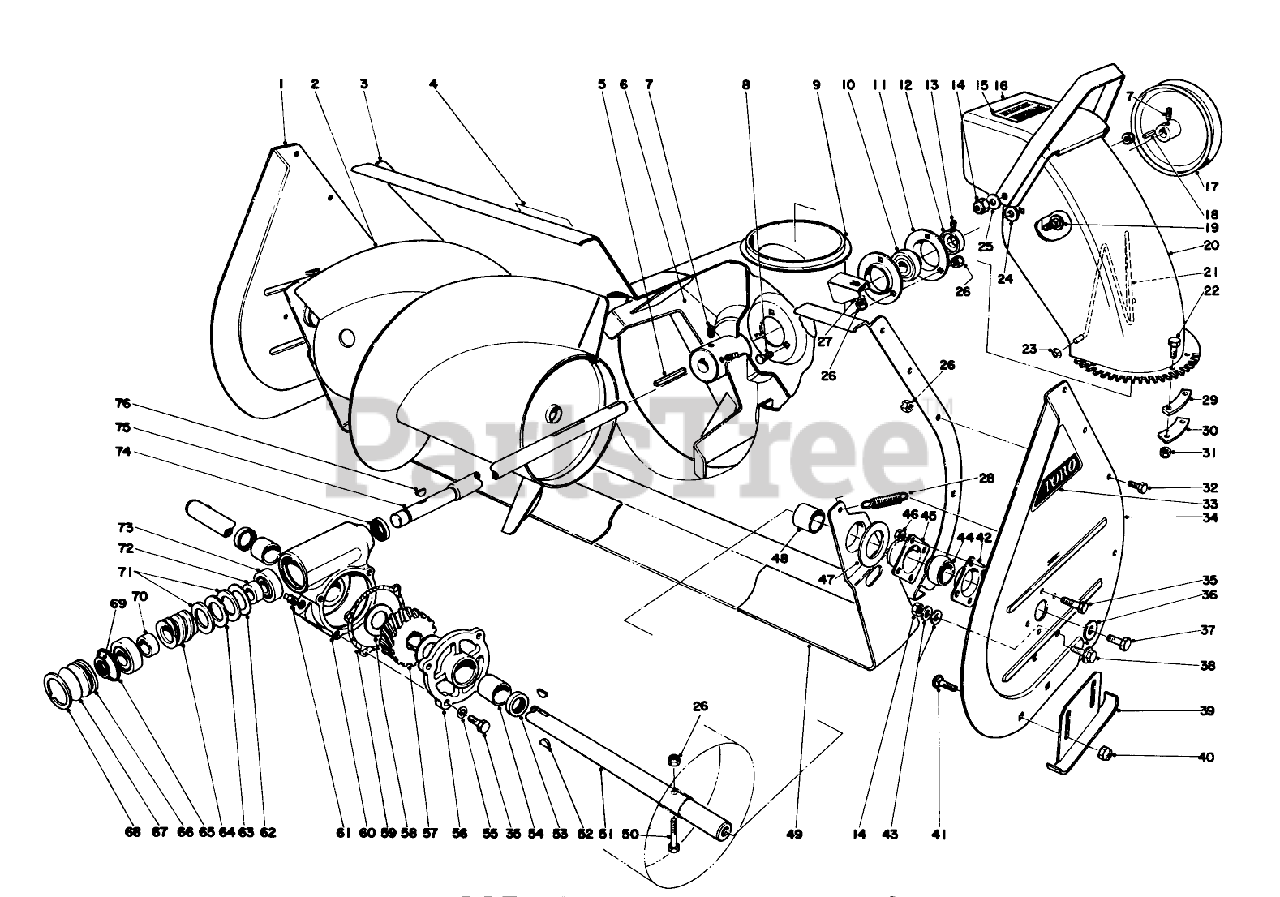

AUGER ASSEMBLY (MODEL NO. 31823) Parts Diagram

  • Title

1

Toro 8-8450

Side Plate
(Superseded to 39-6120)

$

$

Not available

2

Toro 11-6920

Auger R.H.

$

$

Not available

Toro 11-6910

Auger L.H.

Note: Not illustrated

$

$

Not available

3

Toro 5-8709

Auger Housing (Incl. Ref. #4)

$

$

Not available

4

Toro 22-8130

Decal
(Superseded to 94-2568)

$11.99

$

In Stock, only 3 left!

0

5

Toro 6-8590

KEY

$13.99

$

Usually ships in 3-6 days

0

6

Toro 19-8890

IMPELLER ASM
(Superseded to 19-8890-03)

$731.99

$

Usually ships in 3-6 days

0

7

Toro 32424

Set Screw

$

$

Currently unavailable

8

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

9

Toro 5-7250

SUPPORT B

$

$

Not available

10

Toro 251-224

BALL BRG W/COLLAR

$63.99

$

Usually ships in 3-6 days

0

11

Toro 251-229

BRG FLANGE

$49.99

$

In Stock, only 1 left!

0

12

Toro 251-231

EXT LOCKING COLLAR

$40.99

$

In Stock, only 1 left!

0

13

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

14

Toro 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, Qty 12

0

15

Toro 22-8730

CHUTE WARNING DECAL

$

$

Not available

16

Toro 5-8589

Deflector (Incl. Ref. #15)
(Superseded to 11-7120-01)

$127.99

$

Usually ships in 3-6 days

0

17

Toro 5-7400

1/2 X 9.5 DIA PULLEY

$

$

Not available

18

Toro 3-6857

SQUARE KEY

$19.99

$

Usually ships in 3-6 days

0

19

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 6

0

20

Toro 8-9130

Upper Chute

$

$

Not available

21

Toro 12-2040

WIRE-CHUTE

$

$

Not available

22

Toro 3290-359

SCREW-HWH

$

$

Not available

23

Toro 3290-326

NUT-PUSH

$5.49

$

Usually ships in 3-6 days

0

24

Toro 204320

Rubber Washer

$

$

Currently unavailable

25

Toro 3290-340

WASHER-BELLEVILLE

$8.49

$

In Stock, Qty 8

0

26

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

27

Toro 3290-238

WASHER-LOCK

$3.99

$

Usually ships in 3-6 days

0

28

Toro 5-7290

SPRING-TENSION

$29.99

$

In Stock, only 1 left!

0

29

Toro 6-5570

UPPER CHUTE TAB

$

$

Not available

30

Toro 6-5560

CHUTE TAB SPACER

$

$

Not available

31

Toro 32146-18

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

32

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

33

Toro 17-6500

AUGER SIDE PLT DECAL

$

$

Not available

34

Toro 8-8440

Side Plate L. H.
(Superseded to 39-6130)

$

$

Not available

35

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 3-0750

WASHER

$9.49

$

In Stock, only 2 left!

0

37

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

38

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

39

Toro 8-8460

Skid
(Superseded to 20-2840-01)

$44.99

$

In Stock, Qty 9

0

40

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

41

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 6

0

42

Toro 20-1000

BEARING-FLANGE, REAR

$12.99

$

In Stock, Qty 9

0

43

Toro 32564

Washer

$

$

Currently unavailable

44

Toro 20-0980

BEARING

$23.99

$

In Stock, Qty 13

0

45

Toro 20-0990

BEARING-FLANGE, FRONT

$12.99

$

In Stock, Qty 9

0

46

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 19

0

47

Toro 20-0300

SCRAPER BLADE SPACER

$10.99

$

Usually ships in 3-6 days

0

48

Toro 19-91

50 Spacer

$

$

Currently unavailable

49

Toro 19-9160

SCRAPER BLADE 32" R

$334.99

$

Usually ships in 3-6 days

0

50

Toro 17-7030

Auger Bolt
(Superseded to 322-12)

$2.49

$

In Stock, Qty 9

0

51

Toro 11-7010

32 AUGER SHAFT

$

$

Not available

52

Toro 3257-33

KEY-WOODRUFF

$2.49

$

Usually ships in 3-6 days

0

53

Toro 7-0045

SEAL-OIL

$18.99

$

In Stock, only 2 left!

0

54

Toro 256-237

BUSHING

$17.99

$

In Stock, only 1 left!

0

55

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

56

Toro 5-7120

Gear Box Cover (Incl. Ref. #53 & 54)

$

$

Not available

57

Toro 5-7180

GEAR-WORM, 27T

$172.99

$

Usually ships in 3-6 days

0

58

Toro 252-71

WASHER-THRUST

$20.99

$

In Stock, only 3 left!

0

59

Toro 5-7110

Gasket

$

$

Not available

60

Toro 23-7930

Gear Box (Incl. Ref. #53-54 & 72)

$

$

Not available

61

Toro 281-1

PLUG-PIPE, SQH

$5.99

$

Usually ships in 3-6 days

0

62

Toro 252-85

Thrust Race

$

$

Not available

63

Toro 252-84

Thrust Bearing

$

$

Not available

64

Toro 5-7170

GEAR

$123.99

$

In Stock, only 3 left!

0

65

Toro 237-71

O-RING

$9.99

$

Usually ships in 3-6 days

0

66

Toro 7-0017

Plug

$

$

Not available

67

Toro 11-2120

SHIM

$

$

Not available

68

Toro 7-0018

INTRNL RETAINING RING

$

$

Not available

69

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, Qty 20+

0

70

Toro 8-9000

Spacer

$

$

Not available

71

Toro 252-86

Thrust Race

$

$

Not available

72

Toro 23-9090

Spacer

$

$

Not available

73

Toro 251-207

.750 BALL BEARING

$

$

Not available

74

Toro 253-59

SEAL-OIL

$27.99

$

Usually ships in 3-6 days

0

75

Toro 23-7950

WORM SHAFT

$

$

Not available

76

Toro 3257-23

KEY-WOODRUFF

$7.99

$

In Stock, Qty 13

0

Toro 23-7920

Gear Case Assembly Complete
(Superseded to 25-5280)

Note: Not illustrated

$

$

Not available

Toro 20-2850

Skid
(Superseded to 20-2840-01)

Note: Optional equipment

$44.99

$

In Stock, Qty 9

0

Toro 20-0650

Drift Breaker Kit

Note: Optional equipment

$

$

Not available
