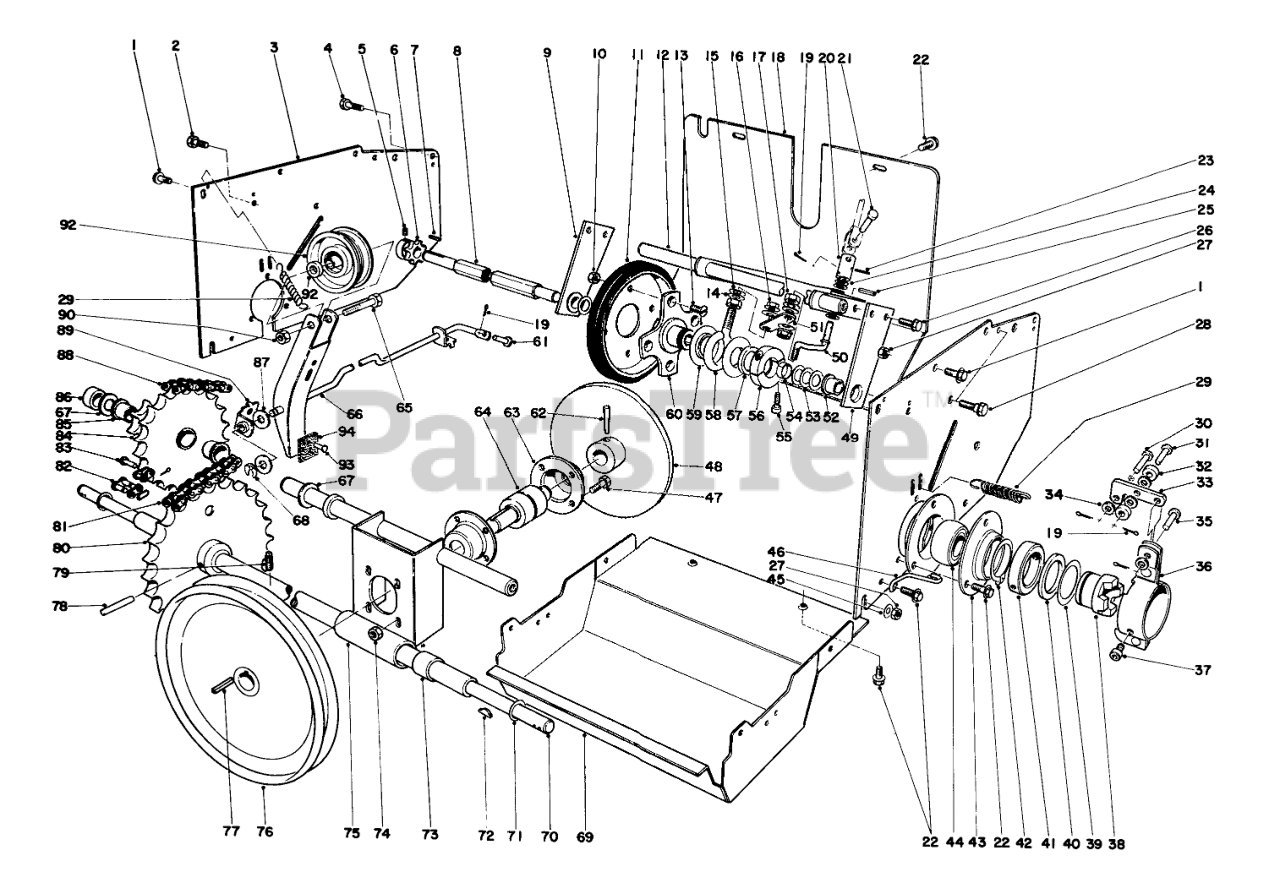

31823 (832) - Toro 32" Snow Thrower (SN: 004000001 - 004999999) (1974) TRACTION ASSEMBLY Parts Diagram

32" Snow Thrower

TRACTION ASSEMBLY Parts Diagram

  • Title

1

Toro 32341

Hex Flange Screw

$

$

Currently unavailable

2

Toro 3210498

Self-Tapping Screw

$

$

Currently unavailable

3

Toro 20-2320

Drive Side Plate
(Superseded to 22-7990)

$

$

Not available

4

Toro 32104-6

SCREW-HH, TAP

$4.49

$

Usually ships in 3-6 days

0

5

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

6

Toro 5-9820

SPROCKET

$100.99

$

Usually ships in 3-6 days

0

7

Toro 3-6168

KEY

$12.99

$

In Stock, only 2 left!

0

8

Toro 11-8940

FRICTION WHEEL SHAFT

$

$

Not available

9

Toro 11-8040

Hex Shaft Mount R.H. (Incl. Ref. 52)

$107.99

$

Usually ships in 3-6 days

0

10

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

11

Toro 3-5461

Disc
(Superseded to 40-8170)

$85.99

$

In Stock, only 3 left!

0

12

Toro 11-8010

Bracket Dead Shaft

$

$

Not available

13

Toro 32108-94

5/16-18X5/8 FLT HD MS

$

$

Not available

14

Toro 3290-301

WASHER-SPRING
(Superseded to 121-4605)

$4.49

$

In Stock, only 1 left!

0

15

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, only 3 left!

0

16

Toro 32128-12

NUT-LOCK, FLANGE

$1.99

$

Usually ships in 3-6 days

0

17

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

18

Toro 8-7950

REAR COVER R

$135.99

$

Usually ships in 3-6 days

0

19

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

20

Toro 11-8070

U JOINT TUBE

$

$

Not available

21

Toro 283-31

CLEVIS PIN

$

$

Not available

22

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

23

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

24

Toro 3-6712

Spacer

$

$

Not available

25

Toro 32121-11

PIN-ROLL

$0.99

$

In Stock, only 2 left!

0

26

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

27

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

28

Toro 11-8140

SHOULDER SCREW

$

$

Not available

29

Toro 10-3890

EXTENSION SPRING

$27.99

$

Usually ships in 3-6 days

0

30

Toro 283-29

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

31

Toro 283-17

PIN-CLEVIS

$6.49

$

Usually ships in 3-6 days

0

32

Toro 10-3910

CLUTCH ROLLER

$

$

Not available

33

Toro 20-1050

CLUTCH CAM ARM

$18.99

$

Usually ships in 3-6 days

0

34

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

35

Toro 283-16

PIN-CLEVIS

$7.49

$

Usually ships in 3-6 days

0

36

Toro 20-2290

CLUTCH MT BRKT ASM

$

$

Not available

37

Toro 3274-42

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

38

Toro 20-2870

Clutch Wheel

$

$

Not available

39

Toro 10-3980

THRUST WASHER

$

$

Not available

40

Toro 256-214

THRUST BEARING

$

$

Not available

41

Toro 10-3860

CLUTCH MOUNT COLLAR

$

$

Not available

42

Toro 32151-35

RING-RETAINING, EXTERNAL

$10.99

$

Usually ships in 3-6 days

0

43

Toro 20-1020

BEARING FLANGE
(Superseded to 57-8050)

$236.99

$

Usually ships in 3-6 days

0

44

Toro 20-1010

BEARING
(Superseded to 57-8280)

$11.99

$

In Stock, only 1 left!

0

45

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

46

Toro 11-0610

Clutch Retainer
(Superseded to 41-8570)

$

$

Not available

47

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

48

Toro 11-7940

FRICTION PLT WA

$

$

Currently unavailable

49

Toro 11-8030

Hex Shaft Mount L.H. (Incl. Ref. 52)
(Superseded to 26-6330)

$

$

Not available

50

Toro 11-8090

CONNECTION ROD

$

$

Not available

51

Toro 11-8060

SHIFT ROD PIVOT
(Superseded to 33113-020)

$0.99

$

In Stock, Qty 10

0

52

Toro 256-219

BUSHING

$9.49

$

In Stock, only 1 left!

0

53

Toro 5-7570

WASHER-FLAT

$8.49

$

Usually ships in 3-6 days

0

54

Toro 11-3180

SPLIT SPACER

$

$

Not available

55

Toro 327426

Hex Socket Capscrew

$

$

Currently unavailable

56

Toro 20-4610

ColIar

$

$

Not available

57

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, Qty 6

0

58

Toro 11-8050

SLIDER RING COLLAR
(Superseded to 78-1790)

$63.99

$

Usually ships in 3-6 days

0

59

Toro 11-8080

SLIDER RING

$

$

Not available

60

Toro 20-3310

TRACTION DISC HUB

$

$

Not available

61

Toro 283-1

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

62

Toro 3285-11

PIN-GROOVED

$2.49

$

In Stock, only 1 left!

0

63

Toro 10-0070

HOUSING BEARING

$

$

Not available

64

Toro 8-8680

Friction Plate Shaft

$

$

Not available

65

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

66

Toro 5-9979

Auger Idler & Brake Assembly (Incl. Ref. 93-94)
(Superseded to 25-5360)

$

$

Not available

67

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0

68

Toro 32151-43

RING-CLIP

$9.99

$

Usually ships in 3-6 days

0

69

Toro 11-7140

LOWER SHIELD R

$

$

Not available

70

Toro 8-8760

Axle Shaft

$

$

Not available

71

Toro 3-0737

WASHER

$9.49

$

In Stock, only 3 left!

0

72

Toro 3257-19

1/4X1-1/16 HI-PRO KEY

$

$

Not available

73

Toro 256-232

BUSHING

$

$

Not available

74

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

75

Toro 5-8299

Bulkhead (Incl. Ref. 73)
(Superseded to 25-5190)

$

$

Not available

76

Toro 5-7410

Pulley

$

$

Not available

77

Toro 3-6168

KEY

$12.99

$

In Stock, only 2 left!

0

78

Toro 3285-11

PIN-GROOVED

$2.49

$

In Stock, only 1 left!

0

79

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, Qty 11

0

80

Toro 8-8770

Sprocket

$

$

Not available

81

Toro 8-8810

Chain Lower

$

$

Not available

82

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

83

Toro 2710-10

1/4 OFFSET LINK

$

$

Not available

84

Toro 5-7070

Sprocket (Incl. Ref. 85)

$

$

Not available

85

Toro 256-215

3/4ID X 3/4LG BSHG

$

$

Not available

86

Toro 20-4580

Idler Spacer
(Superseded to 23-7250)

$

$

Not available

87

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

88

Toro 5-9430

1/4 X 42 CHAIN W/LINK

$157.99

$

Usually ships in 3-6 days

0

89

Toro 20-2940

Bracket-Clutch

$

$

Not available

90

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

91

Toro 20-0010

Spacer

$

$

Not available

92

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

93

Toro 3295-23

.185 DIA X .375 RT +

$11.99

$

Usually ships in 3-6 days

0

94

Toro 20-3100

BRAKE PAD
(Superseded to 66-8050)

$

$

Not available

Toro 5-9959

Loose Parts

Note: Not illustrated

$

$

Currently unavailable

Toro 59051

Grader Blade Optional

Note: Not illustrated

$

$

Currently unavailable

Toro 12-8100

Snow Cab
(Superseded to 42-3380)

Note: Not illustrated

$587.99

$

Usually ships in 3-6 days

0

Toro 12-9900

Sweeper Optional

Note: Not illustrated

$

$

Currently unavailable
