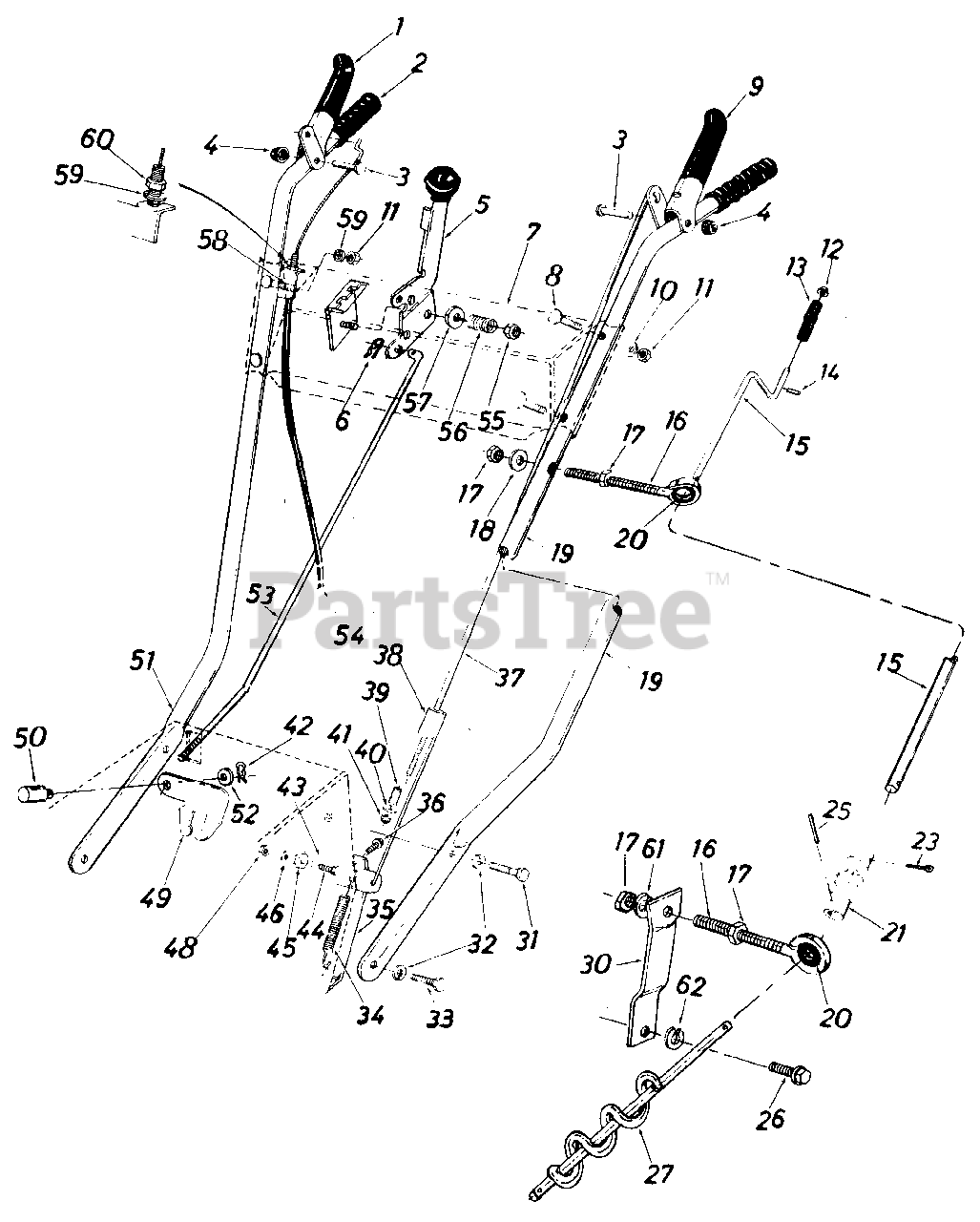

318-225-000 - MTD Snow Thrower (1988) Parts, Snow Thrower Parts Diagram

Snow Thrower

Parts, Snow Thrower Parts Diagram

  • Title

1

MTD 05507

Drive Clutch Grip Ass'y.

Note: (R.H.)

$

$

Currently unavailable

2

MTD 720-0204

Grip

$13.99

$

Usually ships in 3-6 days

0

3

MTD 711-0415

Clevis Pin .375" Dia.

$4.99

$

In Stock, Qty 19

0

4

MTD 726-0110

Push Cap .375" Rod-Black
(Superseded to 926-0100)

$

$

Not available

5

MTD 05805

Shifting Handle Ass'y.

$

$

Not available

6

MTD 714-0104

Int. Coter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

7

MTD 784-5231

Handle Panel Ass'y.

$

$

Currently unavailable

8

MTD 710-0458

Carriage Bolt 5/16-18 x 1.75 Lg.

$4.49

$

In Stock, only 4 left!

0

9

MTD 05506

Auger Clutch Grip Ass y.

Note: (L.H.)

$

$

Not available

10

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

MTD 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, only 3 left!

0

13

MTD 720-0201

Black Knob
(Superseded to 720-0201A)

$10.99

$

In Stock, only 4 left!

0

14

MTD 715-0138

Roll Pin 1/8" Dia.
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

15

MTD 747-0438

Chute Crank .375" Dia. x 34.5" Lg.

$

$

Not available

16

MTD 747-0481

Eye Bolt 5/16-18 x 3.0" Lg.

$

$

Not available

17

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0242

Bell-Wash. .34" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 749-0203

Handle-L.H.

$

$

Not available

20

MTD 741-0475

Grommet
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

21

MTD 784-5149

Joint Brkt. Ass'y.
(Superseded to 684-04350)

$29.99

$

In Stock, only 4 left!

0

23

MTD 714-0111

Coter Pin 3/32" Dia. x 1.00"

$4.99

$

In Stock, Qty 13

0

25

MTD 715-0129

Spring Pin Roll 3/32" Dia. x .50" Lg.

$4.99

$

In Stock, only 1 left!

0

26

MTD 710-0623

Hex Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

27

MTD 784-5064

Chute Crank Ass'y.R.H. 10" Lg.

$

$

Not available

30

MTD 784-5063

Chute Crank Supt. Plate 1.25" x 4.12" Lg.

$

$

Not available

31

MTD 710-0623

Hex Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

32

MTD 736-0105

Bell-Wash. .44" I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

33

MTD 710-0623

Hex Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

34

MTD 732-0320

Extension Spring .38" O.D. x 3.25" Lg.
(Superseded to 932-0320)

$10.99

$

In Stock, only 1 left!

0

35

MTD 05790

Frame Cover

$

$

Currently unavailable

36

MTD 710-0599

Hex Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

37

MTD 747-0154

Clutch Rod .214" Dia. x 32.0" Lg.

$

$

Not available

38

MTD 05567

Auger Clutch Rod Ass'y.

$

$

Currently unavailable

39

MTD 732-0337

Compression Spring .39" O.D. x .75" Lg.

$

$

Not available

40

MTD 736-0173

Fl-Wash. .28" I.D. x .751" O.D.

$4.49

$

In Stock, only 4 left!

0

41

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

42

MTD 714-0507

Coter Pin 3132" Dia. x .75 Lg.

$4.49

$

In Stock, only 2 left!

0

43

MTD 05559

Clutch Bracket

$

$

Currently unavailable

44

MTD 710-0322

Hex Sems Bolt 5/16-18 x 1.0" Lg.

$

$

Not available

45

MTD 748-0233

Shoulder Spacer

$

$

Currently unavailable

46

MTD 736-0231

Fl-Wash. .34" I.D. x 1.12" O.D.

$4.99

$

In Stock, Qty 11

0

48

MTD 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

49

MTD 05962

Shifting Bracket

$

$

Currently unavailable

50

MTD 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

51

MTD 749-0204

Handle-R.H.

$

$

Not available

52

MTD 736-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 1 left!

0

53

MTD 747-0671

Shifting Rod

$

$

Not available

54

MTD 746-0374

Drive Clutch Control Cable
(Superseded to 946-0374)

$55.99

$

Usually ships in 3-6 days

0

55

MTD 712-0116

Hex Ins. Jam L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

56

MTD 732-0193

Compression Spring .60" O.D. x .88" Lg.

$4.99

$

In Stock, Qty 6

0

57

MTD 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

58

MTD 05554

Cable Support Brkt.

$

$

Currently unavailable

59

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

60

MTD 712-0256

Hex Jam Nut 5/16-24 Thd.

$

$

Not available

61

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

62

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0
