317E980I000 - MTD Snow Thrower (1997) Frame Assembly Parts Diagram

Snow Thrower

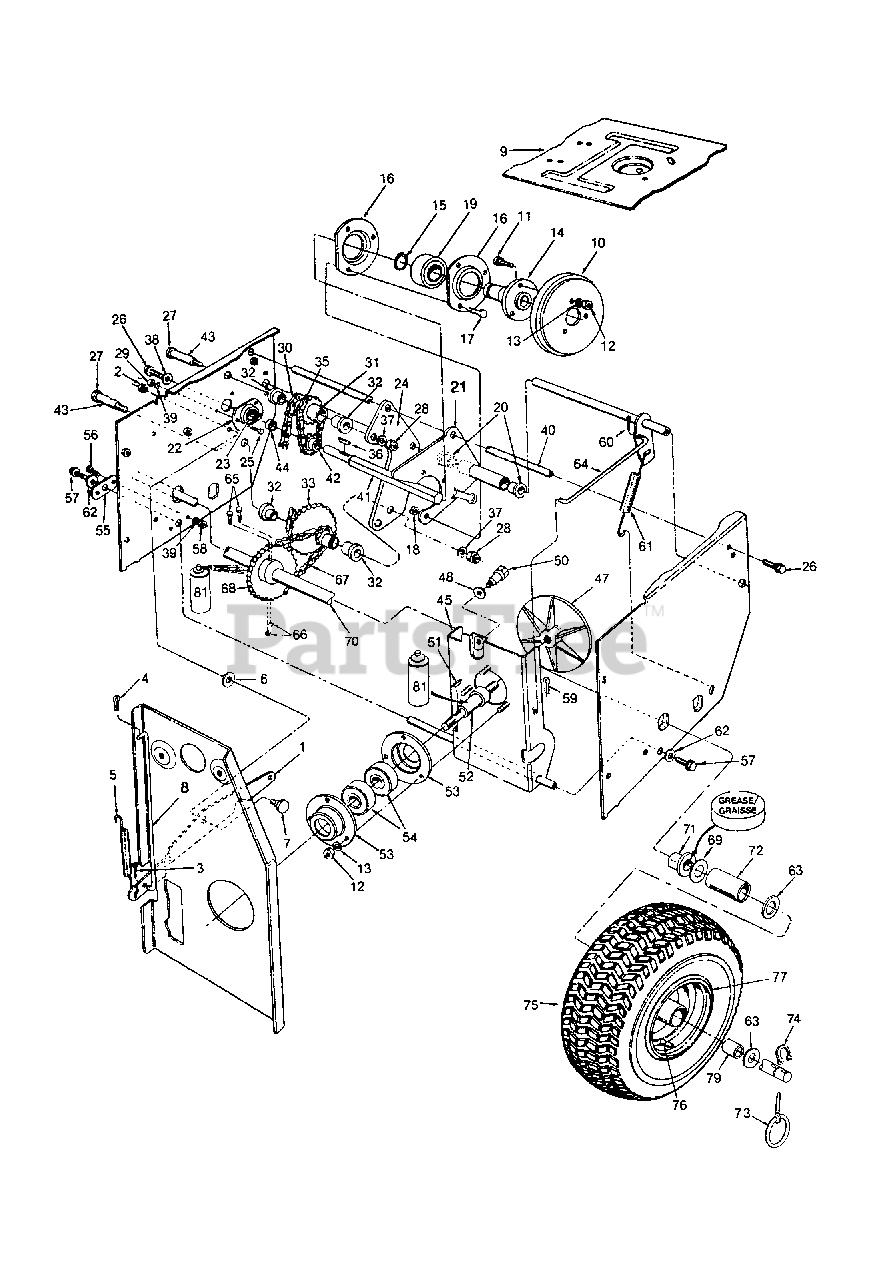

Frame Assembly Parts Diagram

  • Title

1

MTD 05518

Auger Clutch Bracket

$

$

Not available

2

MTD 712-0375

Hex Cent. L-Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

3

MTD 714-0104

Int. Cotter Pin 5/16 Dia.

$4.49

$

In Stock, Qty 20+

0

4

MTD 714-0507

Cotter Pin 3/32 x .75

$4.49

$

In Stock, only 2 left!

0

5

MTD 732-0303

Brake Return Ext. Spring 3.18" Lg.
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 12

0

6

MTD 736-0219

Bell-Wash. .406 I.D. x 1.130 O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

7

MTD 738-0281

Shoulder Scr. .625 Dia. x .170

$10.99

$

In Stock, only 1 left!

0

8

MTD 747-0149

Auger Clutch Rod

$

$

Currently unavailable

9

MTD 784-5568A

Frame Assembly

Variations

MTD 784-5568A-0637

No Longer Available FRAME ASM - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 05080A

Friction Wheel Ass'y.
(Superseded to 05080AP)

$30.99

$

In Stock, Qty 12

0

11

MTD 710-0198

Hex Sems Scr. 5/16-18 x .75
(Superseded to 910-0198)

$

$

Not available

12

MTD 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0119

L-Wash. 5/16 I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

MTD 748-0281

Friction Wheel Adapter Plate

$

$

Not available

15

MTD 716-0102

Snap Ring for 1.0" Shaft

$5.49

$

In Stock, Qty 20+

0

16

MTD 05794

Bearing Housing-52 MM

$

$

Not available

17

MTD 710-0195

Hex Scr. 1/4-28 x .625" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

18

MTD 712-0898

Hex Ins. Jam L-Nut 1/4-28

$

$

Currently unavailable

19

MTD 741-0301

Bearing-25 MM
(Superseded to 941-0301)

$53.99

$

In Stock, only 4 left!

0

20

MTD 748-0184

Flange Bearing .63 I.D.

$7.49

$

Usually ships in 3-6 days

0

21

MTD 784-5137

Sliding Linkage Bracket Ass'y.

$

$

Not available

22

MTD 05034A

Bearing Housing

$

$

Not available

23

MTD 741-0133

Ball Bearing .5 I.D. x 1.99 O.D. x .44

$35.99

$

Usually ships in 3-6 days

0

24

MTD 05520

Chain Support Bracket

Variations

MTD 05520-0637

No Longer Available BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$

25

MTD 710-0258

Hex Screw 1/4-20 x .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

26

MTD 710-0538

Hex L-Bolt 5/16-18 x .62

$4.49

$

In Stock, Qty 9

0

27

MTD 710-0629

Hex Screw 3/8-24 x 2.75

$

$

Not available

28

MTD 712-0116

Hex Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

29

MTD 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

30

MTD 713-0130

#420 Chain 1/2 Pitch x 44 Links

$

$

Not available

31

MTD 713-0193

Sprocket Hub Ass'y. 9 & 14 Teeth
(Superseded to 913-0193)

$81.99

$

Usually ships in 3-6 days

0

32

MTD 748-0184

Flange Bearing .63 I.D.

$7.49

$

Usually ships in 3-6 days

0

33

MTD 713-0194

Sprocket Hub Ass'y.-9 & 32 Teeth
(Superseded to 913-0194)

$153.99

$

In Stock, only 1 left!

0

35

MTD 713-0235

#41 Chain .50 Pitch x 20 Links-Endless

$

$

Not available

36

MTD 714-0129

#4 Hi-Pro Key 3/32 x 5/8
(Superseded to 914-0129)

$

$

Not available

37

MTD 736-0217

Lock Washer Heavy 3/8" I.D.

$4.49

$

In Stock, Qty 9

0

38

MTD 736-0242

Bell-Washer .345 I.D. x .88 O.D. x .08

$4.49

$

In Stock, Qty 20+

0

39

MTD 736-0329

L-Wash. 1/4 I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

40

MTD 738-0278

Sliding Support Axle

$

$

Not available

41

MTD 738-0280

Hex Shaft

$

$

Not available

42

MTD 748-0204

Center Sprocket-8 Teeth

$

$

Not available

43

MTD 750-0275

Sprocket Hub Tubing 3/8 I.D. x 5/8 O.D. x 1.

$

$

Not available

44

MTD 750-0277

Spacer .51 I.D. x .69 O.D. x .44

$

$

Not available

45

MTD 05497

Drive Plate Mounting Brkt. Ass'y.

Variations

MTD 05497-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

47

MTD 717-0302

Aluminum Drive Plate
(Superseded to 917-0302)

$82.99

$

In Stock, only 1 left!

0

48

MTD 736-0105

Bell-Washer .400 I.D. x .88 O.D. x .06

$4.49

$

In Stock, Qty 20+

0

50

MTD 738-0144

Shoulder Screw .498 Dia. x 1.64 Lg.
(Superseded to 938-0144)

$

$

Not available

51

MTD 714-0388

No. 61 Hi-Pro Key 3/16 x 5/8
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 5

0

52

MTD 738-0279

Drive Plate Spindle

$57.99

$

Usually ships in 3-6 days

0

53

MTD 08253B

Brg. Housing 1.65" I.D.

$19.99

$

In Stock, only 1 left!

0

54

MTD 741-0919

Ball Bearing .787 I.D. x 1.85 O.D. x .56
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

55

MTD 05523

Pivot Axle Bracket

$

$

Not available

56

MTD 710-0258

Hex Screw 1/4-20 x .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

57

MTD 710-0538

Hex L-Bolt 5/16-18 x .62

$4.49

$

In Stock, Qty 9

0

58

UNKNOWN

$

$

Not available

59

MTD 714-0104

Int. Cotter Pin 5/16 Dia.

$4.49

$

In Stock, Qty 20+

0

60

MTD 714-0507

Cotter Pin 3/32 x .75

$4.49

$

In Stock, only 2 left!

0

61

MTD 732-0121

Idler Extension Spring
(Superseded to 932-0121)

$14.99

$

In Stock, only 1 left!

0

62

MTD 736-0159

Fl-Washer .344 I.D. x .875 O.D.

$4.49

$

In Stock, Qty 20+

0

63

MTD 736-0163

Fl-Washer 1.03 I.D. x 1.62 O.D. x .03

$4.49

$

In Stock, Qty 20+

0

64

MTD 747-0150

Drive Clutch Rod .31 Dia. x 7.38

$

$

Not available

65

MTD 710-0380

Hex Screw 5/16-18 x 1.75
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 15

0

66

MTD 712-0429

Hex Ins. L-Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

67

MTD 713-0215

Chain #420 .50 Pitch x 38 Links

$

$

Not available

68

MTD 713-0320

Sprocket Hub Ass'y.-28 Teeth

$

$

Currently unavailable

69

MTD 736-0163

Fl-Washer 1.03 I.D. x 1.62 O.D. x .03

$4.49

$

In Stock, Qty 20+

0

70

MTD 738-0962

Free Wheel Axle 1.0 x 28.03 Lg. (28")

$

$

Not available

MTD 738-0807

Free Wheel Axle 1.0 x 32.2" Lg. (30")

$

$

Not available

MTD 738-0549

Free Wheeling Axle 1.0 x 31.25" Lg. (33")

$

$

Not available

71

MTD 741-0192

Flange Bearing W/Flats
(Superseded to 941-0170)

$19.99

$

In Stock, only 4 left!

0

72

MTD 750-0299

Axle Sleeve

$

$

Not available

73

MTD 714-0151A

Klick Pin

$41.99

$

Usually ships in 3-6 days

0

74

MTD 716-0102

Snap Ring for 1.0" Shaft

$5.49

$

In Stock, Qty 20+

0

75

MTD 734-1526

Wheel Ass'y. Comp.

$

$

Not available

MTD 734-1525

Tire Only

$162.99

$

In Stock, only 2 left!

0

76

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

77

MTD 09262

Rim Only

$

$

Not available

79

MTD 741-0246

Bearing 1.0 I.D. x 1.127 O.D. x 1.00

$14.99

$

In Stock, only 4 left!

0

81

Chain Lube-Belray 6 in 1 or Equivalent

$

$

Not available
