317E762F013 - Select Series Snow Thrower (1997) (Price Costco) Handle Assembly Parts Diagram

Snow Thrower

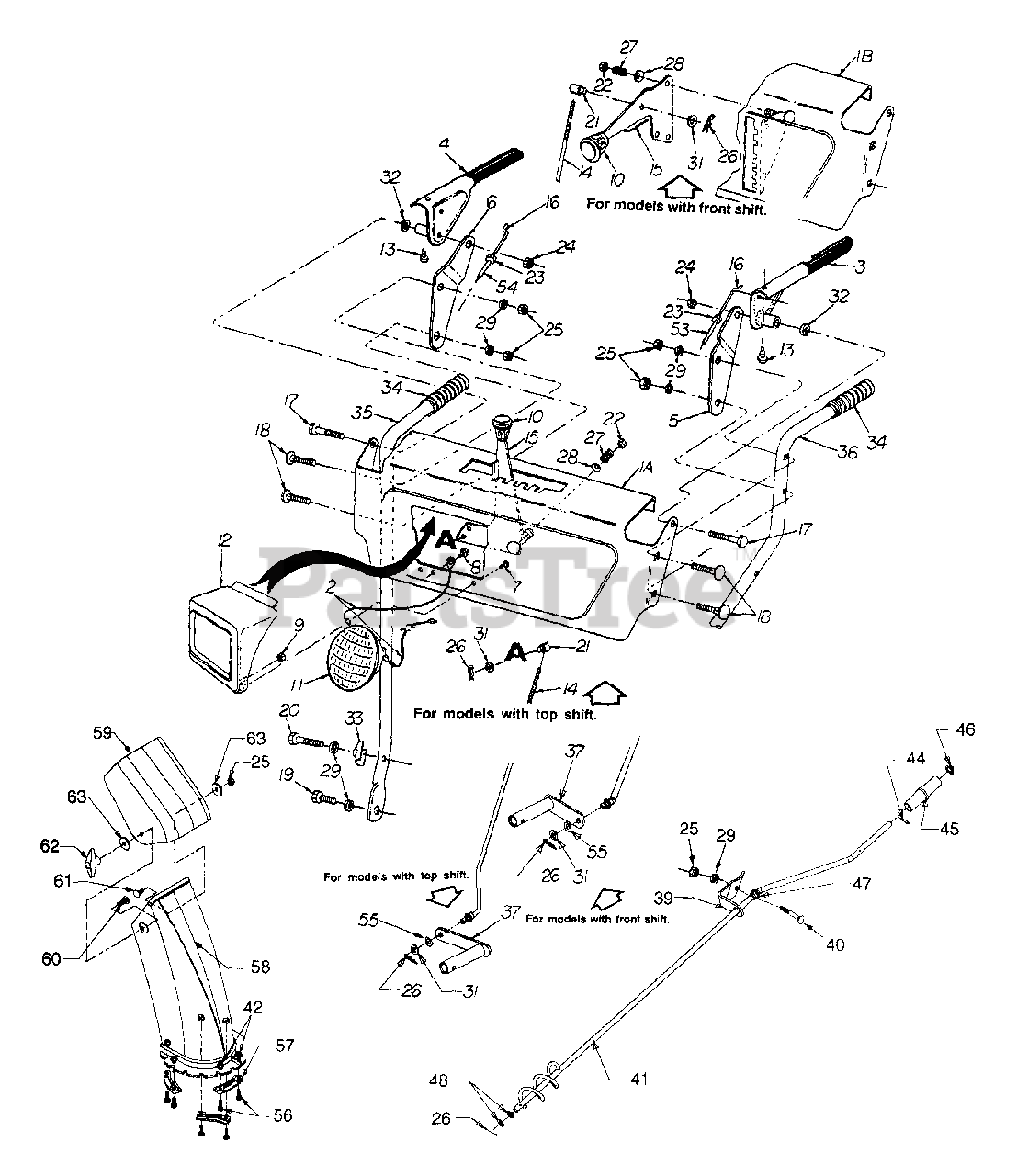

Handle Assembly Parts Diagram

  • Title

1A

MTD 605-5002

Control Panel Ass'y.

Note: Top Shift

Variations

MTD 605-5002-0480

No Longer Available PANEL HAND - BRILLIANT GREEN (0480)

$

$

Not available

MTD 605-5002-0637

No Longer Available PANEL HAND - POWDER BLACK (0637)

$

$

Not available

MTD 605-5002-0638

No Longer Available PANEL HAND - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 605-5002-0640

No Longer Available PANEL HAND - CO-OP GREEN (0640)

$

$

Not available

MTD 605-5002-0687

No Longer Available PANEL HAND - PINE GREEN (0687)

$

$

Not available

$

$

1B

MTD 605-5000

Control Panel Ass'y.

Note: Front Shift

Variations

MTD 605-5000-0483

No Longer Available PANEL HNDL - CHARCOAL GRAY (0483)

$

$

Not available

MTD 605-5000-0638

No Longer Available PANEL HNDL - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 605-5000-0665

No Longer Available PANEL HNDL - YARDMAN GREEN (0665)

$

$

Not available

$

$

2

MTD 629-0058

Wire Harness
(Superseded to 929-0058B)

Note: Top Shift

$

$

Not available

3

MTD 705-5233

Clutch Lever LH
(Superseded to 705-5233A)

$

$

Not available

4

MTD 705-5234

Clutch Lever RH
(Superseded to 705-5234A)

$46.99

$

Usually ships in 3-6 days

0

5

MTD 705-5275

Clutch Grip Bracket - LH

Variations

MTD 705-5275-0637

No Longer Available BRACKET-LH PNL SUP - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 705-5274

Clutch Grip Bracket - RH
(Superseded to 705-5274-0637)

Variations

MTD 705-5274-0637

No Longer Available BRACKET-RH PNL SUP - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 710-0779A

Truss Mach.-Tap Scr. #10 x .50

Note: Top Shift

$4.49

$

In Stock, Qty 12

0

8

MTD 710-0898

Hex B-Tap Scr. 1/4-28 x .25" Lg.

Note: Top Shift

$

$

Currently unavailable

9

MTD 712-0415

Self Threading Nut .25

Note: Top Shift

$5.49

$

In Stock, only 3 left!

0

10

MTD 720-0232

Ball Knob
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

11

MTD 725-1300

Sealed Beam 18 Watt
(Superseded to 925-1300)

Note: Top Shift

$

$

Not available

12

MTD 731-1317

Headlight Bezel

Note: Top Shift

$

$

Not available

13

MTD 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

14

MTD 747-0921

Shift Rod

$

$

Not available

15

MTD 784-5619

Shift Handle
(Superseded to 753-05395)

$

$

Not available

16

MTD 746-0778

"Z" Fitting
(Superseded to 946-0778)

$10.99

$

In Stock, Qty 5

0

17

MTD 710-0116

Hex Scr. 5/16-18 x 2.00
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

18

MTD 710-0262

Carriage Bolt 5/16-18 x 1.50

$3.99

$

In Stock, Qty 12

0

19

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-3180

Hex Screw 5/16-18 x 1.75" Lg.

$5.49

$

In Stock, Qty 14

0

21

MTD 711-0677

Adjustment Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

22

MTD 712-0116

Hex Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

23

MTD 712-0121

Hex Nut 10-24

$4.49

$

In Stock, Qty 20+

0

24

MTD 712-0429

Hex L-Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

25

MTD 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

MTD 714-0104

Int. Cotter Pin 5/16 Dia.

$4.49

$

In Stock, Qty 20+

0

27

MTD 732-0193

Compression Spring .38 ID x .88 Lg.

$4.99

$

In Stock, Qty 6

0

28

MTD 736-0105

Bell-Wash. .400 ID x .88 OD x .06

$4.49

$

In Stock, Qty 20+

0

29

MTD 736-0119

L-Wash. 5/16 ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

MTD 736-0264

Flat Washer .34 ID x .63 OD

$6.99

$

In Stock, only 1 left!

0

32

MTD 750-1032

Spacer

$4.99

$

Usually ships in 3-6 days

0

33

MTD 784-5599

Handle Tab
(Superseded to 984-5599)

$4.49

$

In Stock, Qty 20+

0

34

MTD 720-0274

Grip

$11.99

$

In Stock, only 2 left!

0

35

MTD 749-0910A

Handle RH Black
(Superseded to 749-0910C-0637)

Variations

MTD 749-0910A-0637

HANDLE-RH - POWDER BLACK (0637)

$

$

Not available

$

$

36

MTD 749-0911A

Handle LH Black

Variations

MTD 749-0911A-0637

No Longer Available HANDLE-LH - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 684-0008

Shift Arm Assembly
(Superseded to 684-0008A-0637)

Variations

MTD 684-0008-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

MTD 684-0008-0638

Shift Arm Assembly - MTD/TROY-BILT RED (0638)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

39

MTD 784-5678

Chute Crank Brkt.

Variations

MTD 784-5678-0637

No Longer Available BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 710-0442

Hex Bolt 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, only 2 left!

0

41

MTD 684-0022

Chute Crank Ass'y.
(Superseded to 984-0022)

$99.99

$

In Stock, only 3 left!

0

42

MTD 712-3027

Hex Flange Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 18

0

44

MTD 715-0138

Roll Pin .125 Dia. x .62
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

45

MTD 720-0201A

Knob - Chute Crank

$10.99

$

In Stock, only 4 left!

0

46

MTD 726-0100

Cap Speed Nut 3/8" Rod

$4.49

$

In Stock, only 1 left!

0

47

MTD 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

48

MTD 736-0140

Flat Washer .385 ID x .62 OD x .06

$7.49

$

In Stock, Qty 7

0

53

MTD 746-0897

Auger Clutch Cable (w/"Z" Fitting)
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

54

MTD 746-0898

Drive Clutch Cable (w/"Z" Fitting)
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 20+

0

55

MTD 736-0271

Spring Wash. .317" I.D. x .625" O.D.
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

56

MTD 710-3015

Hex Bolt 1/4-20 x .75" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

57

MTD 731-0851A

Chute Keeper

$4.49

$

In Stock, Qty 20+

0

58

MTD 731-1300A

Lower Chute
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

59

MTD 731-0921

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, only 4 left!

0

60

MTD 710-0276

Carriage Bolt 5/16-18 x 1" Lg.

$3.99

$

In Stock, Qty 11

0

61

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

62

MTD 720-0284

Knob

$6.99

$

In Stock, Qty 20+

0

63

MTD 736-0231

Fl-Wash. .34" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 11

0
