31763 (826) - Toro 26" Snow Thrower (SN: 005000001 - 005999999) (1975) WHEEL ASSEMBLY Parts Diagram

26" Snow Thrower

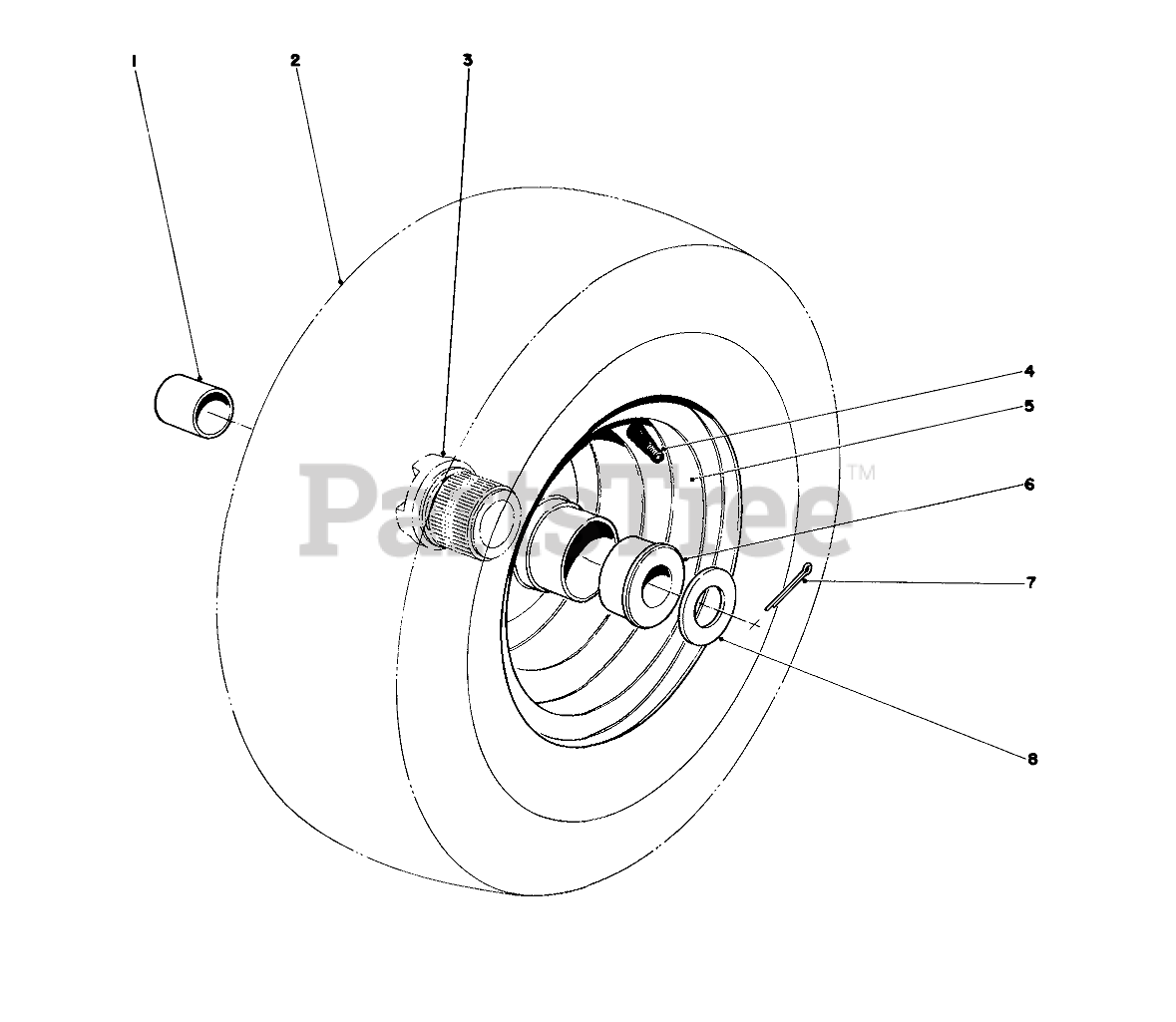

WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 256-205

.877ID X .750LG BSHG

$

$

Not available

2

Toro 231-78

TIRE

$

$

Not available

Toro 231-61

Tire-Tubeless

Note: Not illustrated

$

$

Not available

3

Toro 12-1130

JAW HUB

$

$

Not available

4

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

5

Toro 17-6610

Rim

$

$

Not available

Toro 12-1670

Wheel Rim (Model #31823) (Incl. Ref. #3)
(Superseded to 26-9870)

Note: Not illustrated

$

$

Not available

6

Toro 256-212

Bushing

$

$

Not available

7

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

8

Toro 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 1 left!

0

Toro 17-7620

Tire Chains Optional

Note: Optional equipment

$

$

Not available

Toro 22-8080

Tire Chains set(Model #31823 only)

Note: Optional equipment

$

$

Currently unavailable
