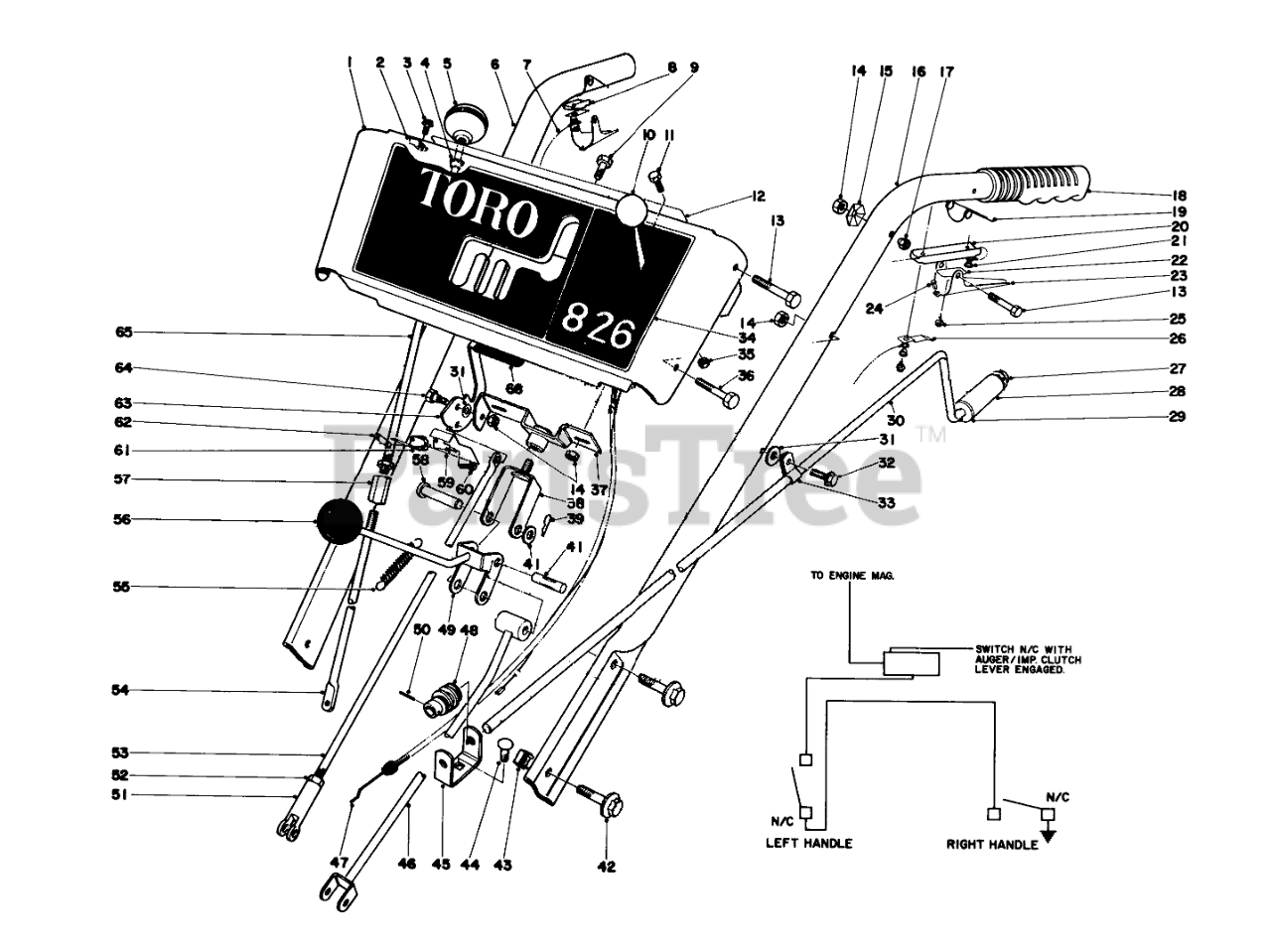

31763 (826) - Toro 26" Snow Thrower (SN: 005000001 - 005999999) (1975) HANDLE ASSEMBLY Parts Diagram

26" Snow Thrower

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 6-1859

Escutcheon Plate (Incl. Ref. #12 & 34) (Model #31823 Only)

$

$

Currently unavailable

Toro 6-1869

Escutcheon Plate (Incl. Ref. #12 & 34) (Model #31823 Only)

Note: Not illustrated

$

$

Not available

2

Toro 20-2810

PLASTIC CLIP

$

$

Not available

3

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 256-240

NYLINER #6LI-FF TYPE 7

$9.49

$

Usually ships in 3-6 days

0

5

Toro 233-10

KNOB-LEVER

$64.99

$

Usually ships in 3-6 days

0

6

Toro 20-1040

Handle Right

$

$

Currently unavailable

7

Toro 20-2120

WIRE HARNESS

$

$

Not available

8

Toro 17-5680

Insulator

$

$

Not available

9

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

11

Toro 32140-99

HEX HEAD SEMS 10-24X1/2

$

$

Not available

12

Toro 11-8390

Decal

$

$

Not available

13

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 321524

Nut

$

$

Currently unavailable

15

Toro 3290-257

Washer

$

$

Not available

16

Toro 20-1030

Handle Left
(Superseded to 59-0730)

$

$

Not available

17

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

18

Toro 6-0450

Grip Handle
(Superseded to 74-1380)

$

$

Not available

19

Toro 17-5720

INTERLOCK SPRING

$

$

Not available

20

Toro 20-2110

Insulator

$

$

Not available

21

Toro 17-5700

WASHER INSULATOR

$

$

Not available

22

Toro 17-5690

INTERLOCK CONTACT

$38.99

$

Usually ships in 3-6 days

0

23

Toro 17-5710

Safety Lever

$

$

Not available

24

Toro 3290-358

1/4 PLASTIC RIVET

$

$

Not available

25

Toro 32104-75

Screw
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 20+

0

26

Toro 17-6510

CONTACT BRACKET

$

$

Not available

27

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

28

Toro 20-2060

CHUTE CONTROL GRIP

$

$

Not available

29

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 8-8570

ROD CHUTE CONTROL

$

$

Not available

31

Toro 73256-23

Washer

$

$

Currently unavailable

32

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

33

Toro 2412-10

R-CLAMP

$3.99

$

Usually ships in 3-6 days

0

34

Toro 22-8180

Decal-Escutcheon (Model #31763)
(Superseded to 29-6310)

$91.99

$

Usually ships in 3-6 days

0

Toro 022-8190

Decal-Escutcheon (Model #31823)

Note: Not illustrated

$

$

Currently unavailable

35

Toro 32146-18

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

36

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

37

Toro 8-7930

SWIVEL BLOCK WA

$

$

Not available

38

Toro 8-7910

Pivot Bracket
(Superseded to 29-6490)

$

$

Not available

39

Toro 3290-322

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

40

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

41

Toro 3284-2

3/8 X 1-1/4 ROL

$

$

Not available

42

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

43

Toro 3290-370

Retained Nut
(Superseded to 3290-433)

$

$

Not available

44

Toro 3230-15

SCREW-CARR

$1.99

$

In Stock, only 4 left!

0

45

Toro 11-7110

WORM BRACKET
(Superseded to 117110-01)

$

$

Not available

46

Toro 11-8100

Trunnion

$

$

Not available

47

Toro 8-7790

Throttle Contrl

$

$

Not available

48

Toro 8-8600

GEAR-WORM, CHUTE

$137.99

$

Usually ships in 3-6 days

0

49

Toro 20-3050

Rod Shift
(Superseded to 26-9370)

$

$

Not available

50

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

51

Toro 5-0865

Clevis
(Superseded to 39-4640)

$62.99

$

Usually ships in 3-6 days

0

52

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

53

Toro 20-2310

DRAG LINK

$

$

Not available

54

Toro 22-7970

LOWER WHL CLUTCH ROD

$55.99

$

Usually ships in 3-6 days

0

55

Toro 8-9900

CONT ROD SPRING 0

$

$

Not available

56

Toro 233-21

KNOB

$13.99

$

Usually ships in 3-6 days

0

57

Toro 22-7940

WHL ROD COUPLING

$36.99

$

Usually ships in 3-6 days

0

58

Toro 283-5

PIN-CLEVIS

$12.99

$

Usually ships in 3-6 days

0

59

Toro 22-9300

SWITCH BRKT

$

$

Not available

60

Toro 3290-3133

Pan Hd. Machine Screw

$

$

Currently unavailable

61

Toro 12-3320

MICRO SWITCH

$71.99

$

In Stock, only 1 left!

0

62

Toro 3290-354

NUT-SPEED

$10.99

$

Usually ships in 3-6 days

0

63

Toro 17-6620

Auger Clutch Handle

$

$

Not available

64

Toro 11-9030

SCREW-SHOULDER

$7.49

$

Usually ships in 3-6 days

0

65

Toro 22-7980

Rod Wheel Clutch

$

$

Not available

66

Toro 11-8970

AUGER CLUTCH HND GRIP

$

$

Not available

Toro 12-8100

Snow Cab
(Superseded to 42-3380)

Note: Optional equipment

$587.99

$

Usually ships in 3-6 days

0

Toro 5-9959

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
