31763 (826) - Toro 26" Snow Thrower (SN: 005000001 - 005999999) (1975) ENGINE ASSEMBLY Parts Diagram

26" Snow Thrower

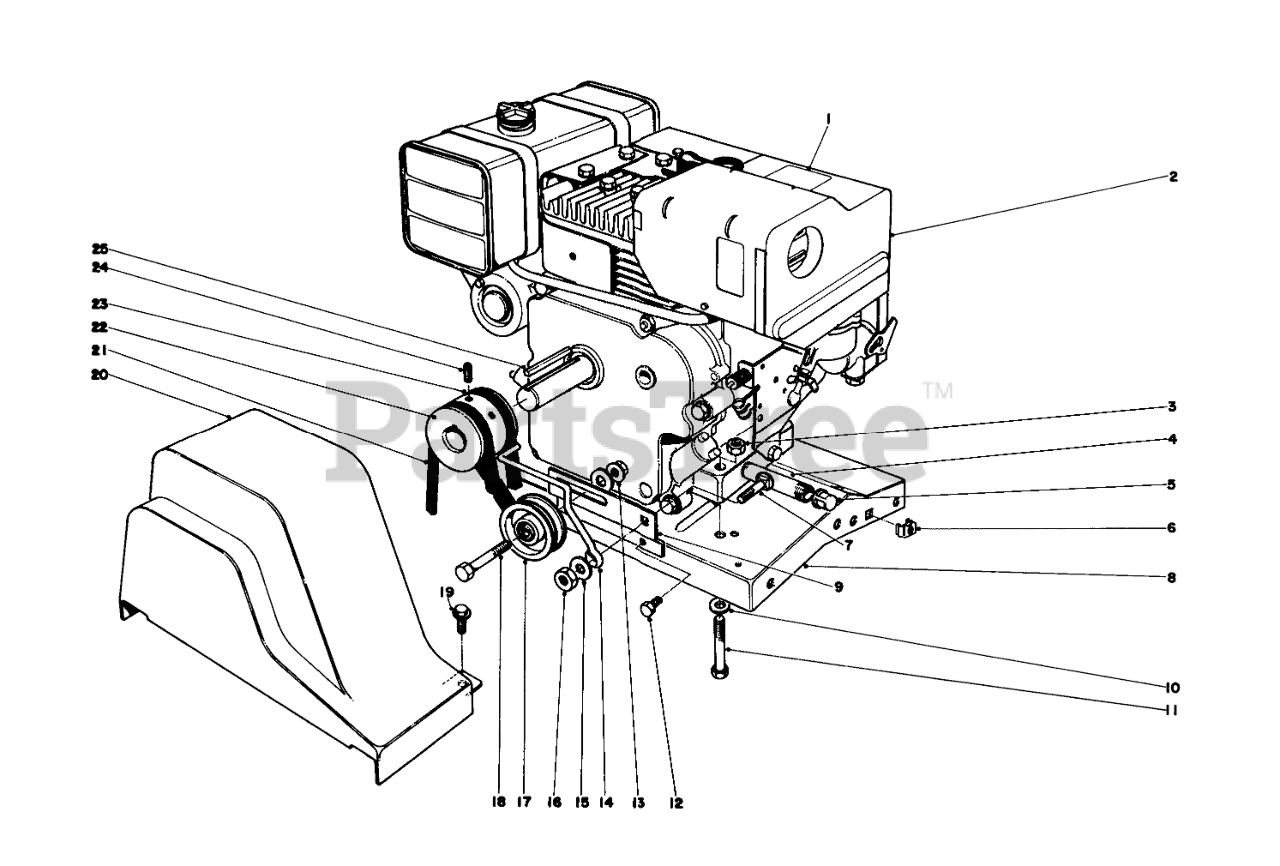

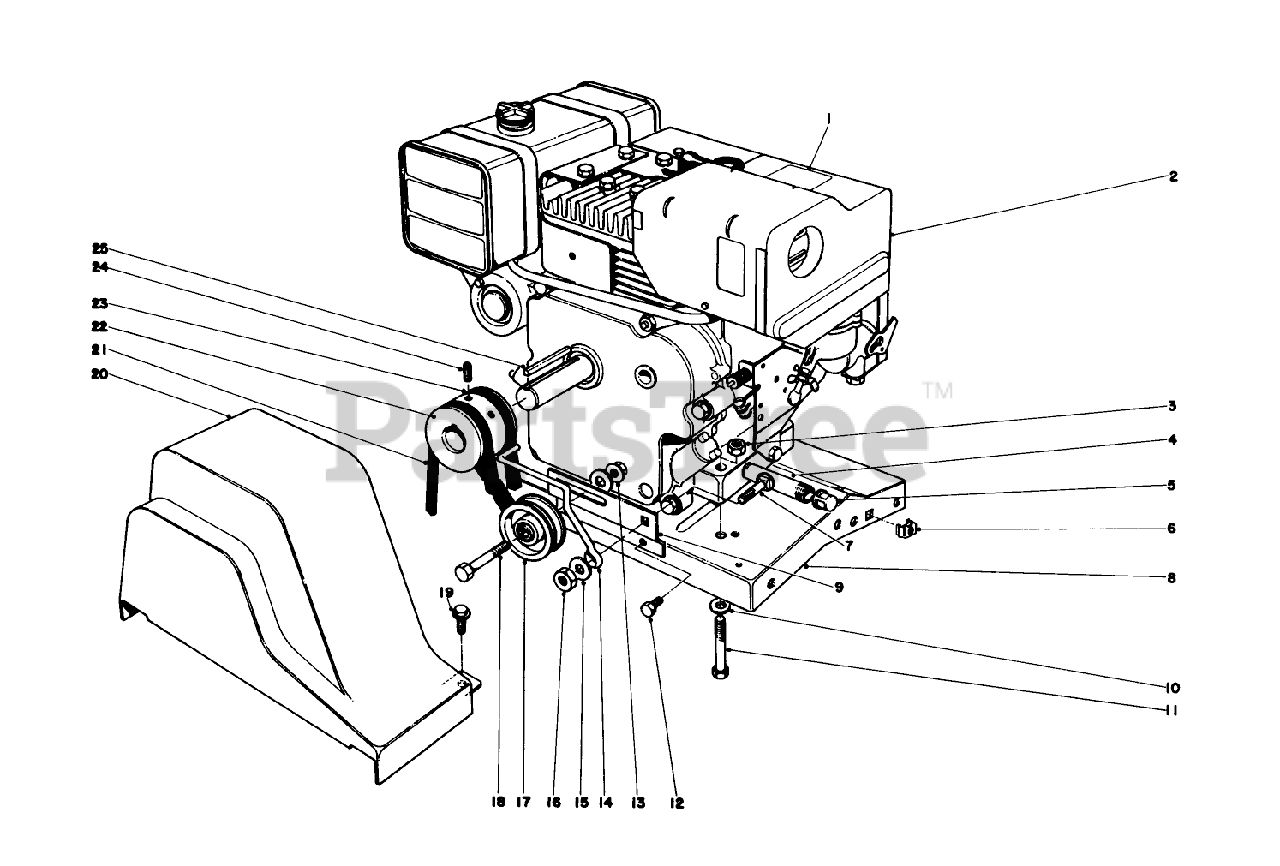

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 22-9990

Decal Instruction

$

$

Currently unavailable

2

Toro 221-444

Engine

$

$

Currently unavailable

3

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

4

Toro 289-20

NIPPLE-PIPE

$

$

Not available

5

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

6

Toro 3290-370

Retained Nut
(Superseded to 3290-433)

$

$

Not available

7

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

8

Toro 22-8020

Engine Base

$

$

Not available

9

Toro 22-7960

Belt Idler Bracket
(Superseded to 41-8580)

$

$

Not available

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

12

Toro 32104-6

SCREW-HH, TAP

$3.99

$

Usually ships in 3-6 days

0

13

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

14

Toro 8-8830

BELT GUIDE

$

$

Not available

15

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

16

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

17

Toro 34244

Idler Pulley

$

$

Currently unavailable

18

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 9

0

20

Toro 17-6550

BELT GUARD

$

$

Not available

21

Toro 17-0850

V-Belt
(Superseded to 26-9670)

$25.99

$

In Stock, only 2 left!

0

22

Toro 11-9110

Pulley
(Superseded to 21-4100)

$

$

Not available

23

Toro 174540

V-Belt

$

$

Currently unavailable

24

Toro 3246-14

Screw-Set
(Superseded to 3246-3)

$12.99

$

Usually ships in 3-6 days

0

25

Toro 5-0930

KEY

$14.99

$

Usually ships in 3-6 days

0

Toro 20-7200

Starter Motor Kit U.S.

Note: Optional equipment

$

$

Currently unavailable

Toro 234420

Starter Motor Kit Canada

Note: Optional equipment

$

$

Not available
