31727 (726) - Toro 26" Snow Thrower (SN: 001000001 - 001999999) (1971) WHEEL ASSEMBLY Parts Diagram

26" Snow Thrower

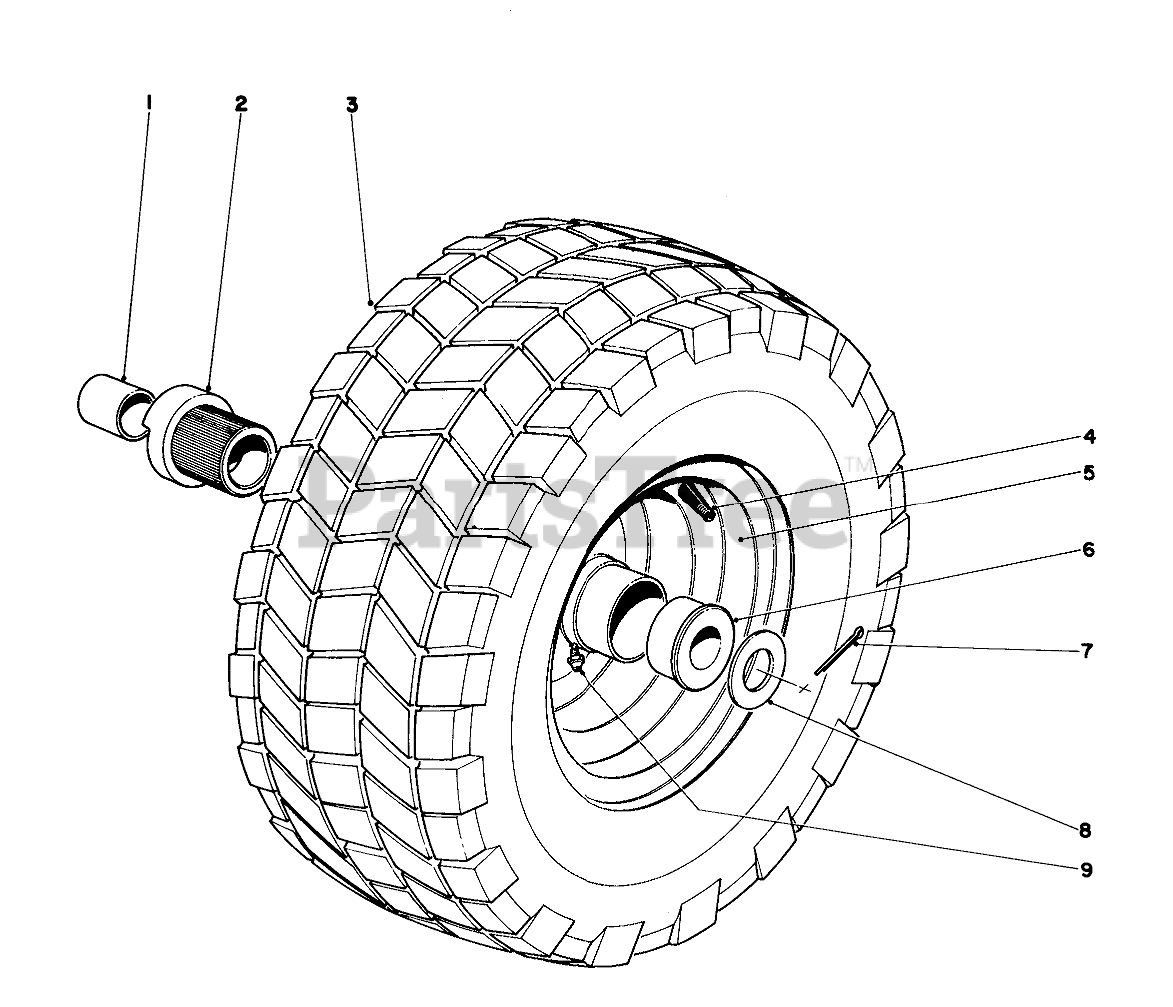

WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 256-217

BUSHING

$

$

Not available

2

Toro 8-8520

Hub Jaw
(Superseded to 12-1130)

$

$

Not available

3

Toro 231-49

Tire
(Superseded to 231-115)

$96.99

$

Usually ships in 3-6 days

0

Toro 231-61

Tire-Tubeless

Note: Not illustrated

$

$

Not available

4

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

5

Toro 241-109

Wheel Rim

$

$

Not available

Toro 241-112

Wheel Assy. Model #31832 (Incl. Ref. No. 2)

Note: Not illustrated

$

$

Currently unavailable

6

Toro 256-212

Bushing

$

$

Not available

7

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

8

Toro 3-8664

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

9

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

Toro 5-0149

Tire Chains (Optional)
(Superseded to 11-0410)

Note: Not illustrated

$

$

Not available

Toro 10-3200

Tire Chains (8 HP)

Note: Not illustrated

$

$

Currently unavailable
