31720x51A - Murray 31" Lawn Tractor (1997) Mower Housing Parts Diagram

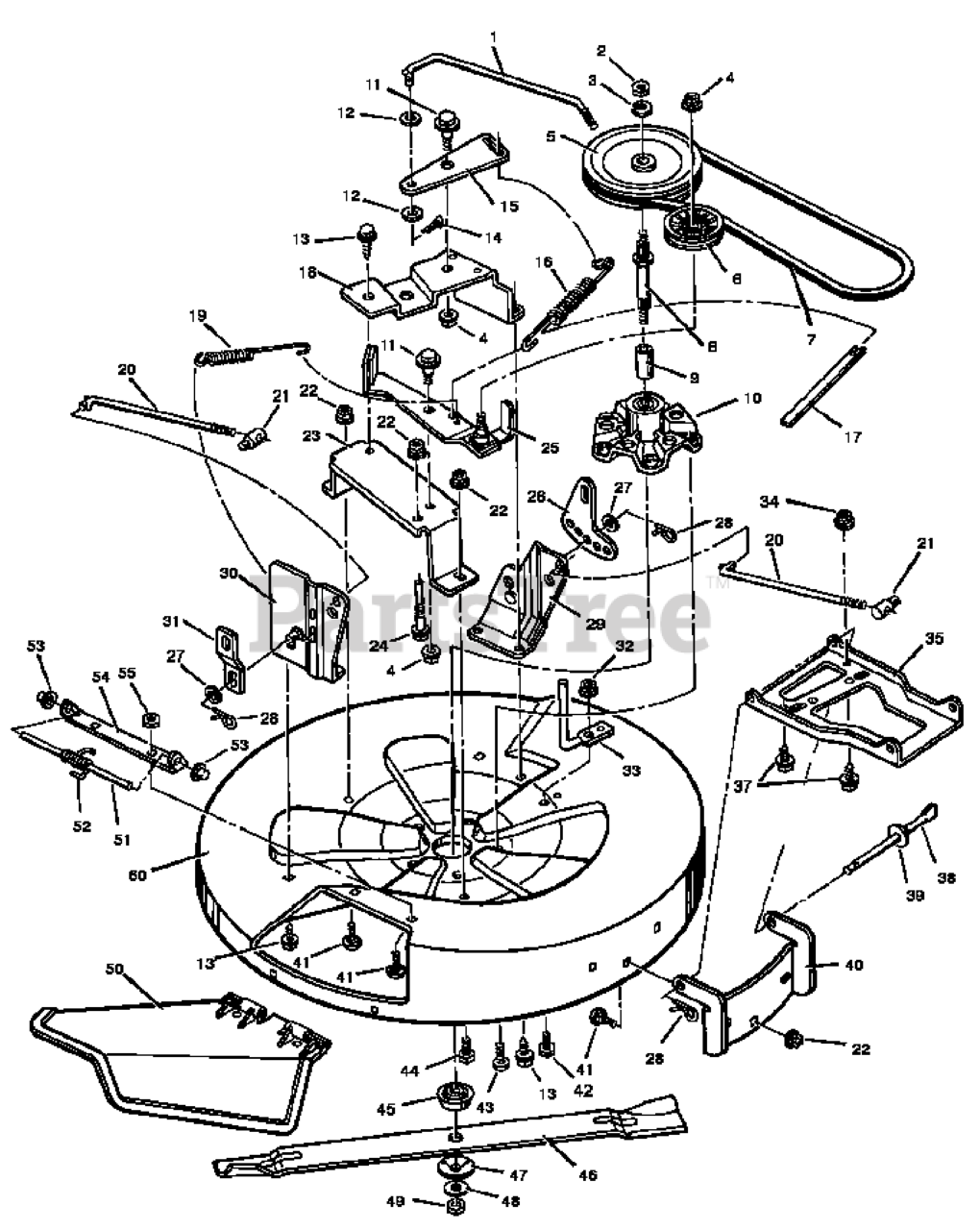

31" Lawn Tractor

Mower Housing Parts Diagram

  • Title

1

Murray 092283 Z

Rod, PTO

$

$

Currently unavailable

2

Murray 15X100MA

Locknut

$3.99

$

In Stock, Qty 10

0

3

Murray 018X33MA

Lockwasher

$4.49

$

Usually ships in 2-12 days

0

4

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

5

Murray 091951

Pulley, Splined

$

$

Currently unavailable

6

Murray 091801

Pulley, Idler
(Superseded to 091801MA)

$24.99

$

In Stock, Qty 8

0

7

Murray 037X74MA

Belt, Mower Drive

$36.99

$

Usually ships in 2-12 days

0

8

Murray 091922MA

Mandrel
(Superseded to 491922MA)

$22.99

$

In Stock, only 1 left!

0

9

Murray 091903MA

Spacer

$5.49

$

Usually ships in 2-12 days

0

10

Murray 055962

Housing, Mandrel

$76.99

$

In Stock, only 2 left!

0

11

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 6

0

12

Murray 017X46 Z

Washer

$

$

Currently unavailable

13

Murray 26X249MA

Screw

$

$

Not available

14

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

15

Murray 92209E701

Bracket, Pivot

$

$

Currently unavailable

16

Murray 165X91MA

Spring, Extension

$85.99

$

Usually ships in 2-12 days

0

17

Murray 092163MA

Indicator, Plastic

$6.99

$

Usually ships in 2-12 days

0

18

Murray 92208E701

Support, Pivot Bracket

$

$

Currently unavailable

19

Murray 165X90MA

Spring, Extension

$11.99

$

Usually ships in 2-12 days

0

20

Murray 091748 Z

Rod, Adjusting

$

$

Currently unavailable

21

Murray 092131

Nut, Adjustable

$

$

Not available

22

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

23

Murray 92211E701

Support, Idler Arm

$

$

Currently unavailable

24

Murray 020619MA

Guide, Belt

$4.49

$

Usually ships in 2-12 days

0

25

Murray 092221

Arm Assembly, Idler

$

$

Currently unavailable

26

Murray 091741E701MA

Plate, Adjusting

$17.99

$

Usually ships in 2-12 days

0

27

Murray 17X103 Z

Washer

$

$

Currently unavailable

28

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

29

Murray 92207E701

Bracket Assembly, Left Lifter

$

$

Currently unavailable

30

Murray 92205E701

Bracket Assembly, Right Lifter

$

$

Currently unavailable

31

Murray 092064E701MA

Link

$5.99

$

Usually ships in 2-12 days

0

32

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

33

Murray 91797E701

Guide, Belt

$

$

Currently unavailable

34

Murray 015X62

Nut, Hex

$

$

Currently unavailable

35

Murray 092202E701

Hanger, Front

$

$

Currently unavailable

37

Murray 0025X4MA

Screw

$1.99

$

Usually ships in 2-12 days

0

38

Murray 092273 Z

Rod, Hanger

$

$

Currently unavailable

39

Murray 017X57MA

Washer

$4.49

$

Usually ships in 2-12 days

0

40

Murray 92203E701

Bracket, Front Hanger

$

$

Currently unavailable

41

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

42

Murray 001X85MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

43

Murray 26X216MA

Screw

$6.99

$

In Stock, Qty 5

0

44

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

45

Murray 092466MA

Adapter, Blade

$9.99

$

In Stock, only 1 left!

0

46

Murray 055793E701MA

Blade

$

$

Not available

47

Murray 17X166MA

Washer, Belleville

$13.99

$

In Stock, Qty 18

0

48

Murray 17X165MA

Washer

$16.99

$

In Stock, only 4 left!

0

49

Murray 15X100MA

Nut, Hex

$3.99

$

In Stock, Qty 10

0

50

Murray 055971MA

Deflector, Chute

$

$

Not available

51

Murray 021197 Z

Rod, Deflector

$

$

Currently unavailable

52

Murray 0166X4MA

Spring - Torsional

$6.49

$

In Stock, Qty 9

0

53

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

54

Murray 56213E701

Hinge, Deflector

$5.99

$

Usually ships in 2-12 days

0

55

Murray 015X43MA

Locknut
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

57

Murray 002X64MA

Bolt, Carriage

$4.49

$

In Stock, only 1 left!

0

58

Murray 014X83

Wingnut

$

$

Currently unavailable

60

UNKNOWN

$

$

Not available

--

Murray 403344

Mower Housing, Complete

Note: (Includes Ref. No's. 1-60)

$

$

Currently unavailable
