31720x11B - Murray 31" Lawn Tractor (2000) Engine Mount Parts Diagram

31" Lawn Tractor

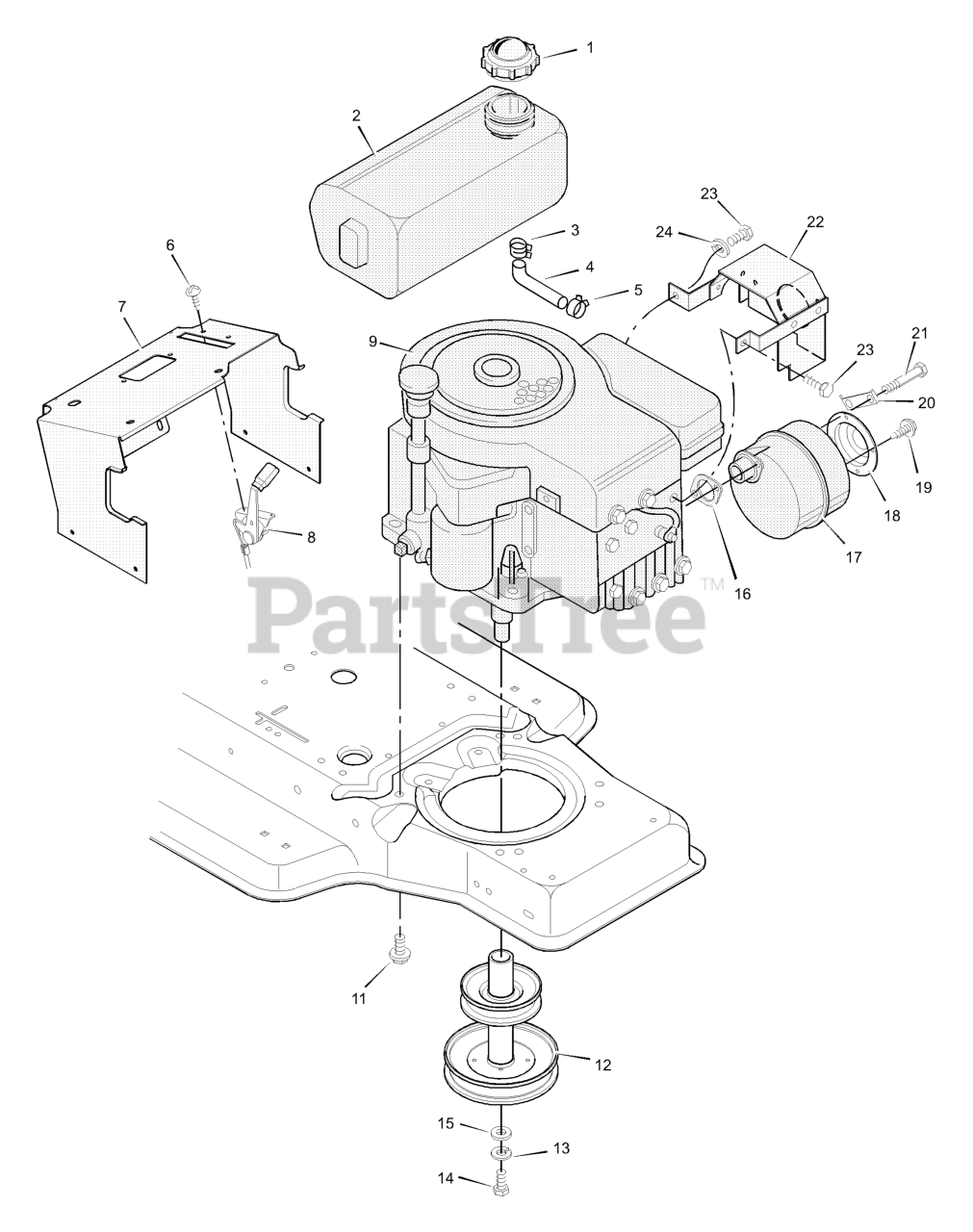

Engine Mount Parts Diagram

  • Title

1

Murray 092317MA

Fuel Cap

$10.99

$

In Stock, Qty 7

0

2

Murray 092342

Fuel Tank

$

$

Currently unavailable

3

Murray 095197MA

Hose Clamp
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

4

Murray 023717

Fuel Line

$7.99

$

In Stock, Qty 20+

0

5

Murray 095197MA

Hose Clamp
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

6

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

7

Murray 92331E700

Support, Dash

$

$

Not available

8

Murray 092371MA

Throttle Control

$37.99

$

Usually ships in 2-12 days

0

9

Engine *

$

$

Not available

11

Murray 0025X7MA

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

12

Murray 092318 Z

Stack Pulley Assembly

$

$

Currently unavailable

13

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, Qty 11

0

14

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, Qty 15

0

15

Murray 17X170MA

Washer

$

$

Not available

16

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

17

Murray 091271

Muffler

$52.99

$

In Stock, only 1 left!

0

18

Murray 094099 Z

Deflector, Muffler

$

$

Currently unavailable

19

Murray 26X208MA

Screw

$3.99

$

Usually ships in 2-12 days

0

20

Murray 092378MA

Lock, Screw

$5.49

$

In Stock, Qty 9

0

21

Murray 01X134MA

Bolt

$10.99

$

Usually ships in 2-12 days

0

22

Murray 092381SE

Shield, Heat

$

$

Currently unavailable

23

Murray 0025X2MA

Bolt
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

24

Murray 018X32MA

Washer

$3.49

$

Usually ships in 2-12 days

0
