316E660G000 - Yard Machines Snow Thrower (1996) Wheel Assembly Parts Diagram

Snow Thrower

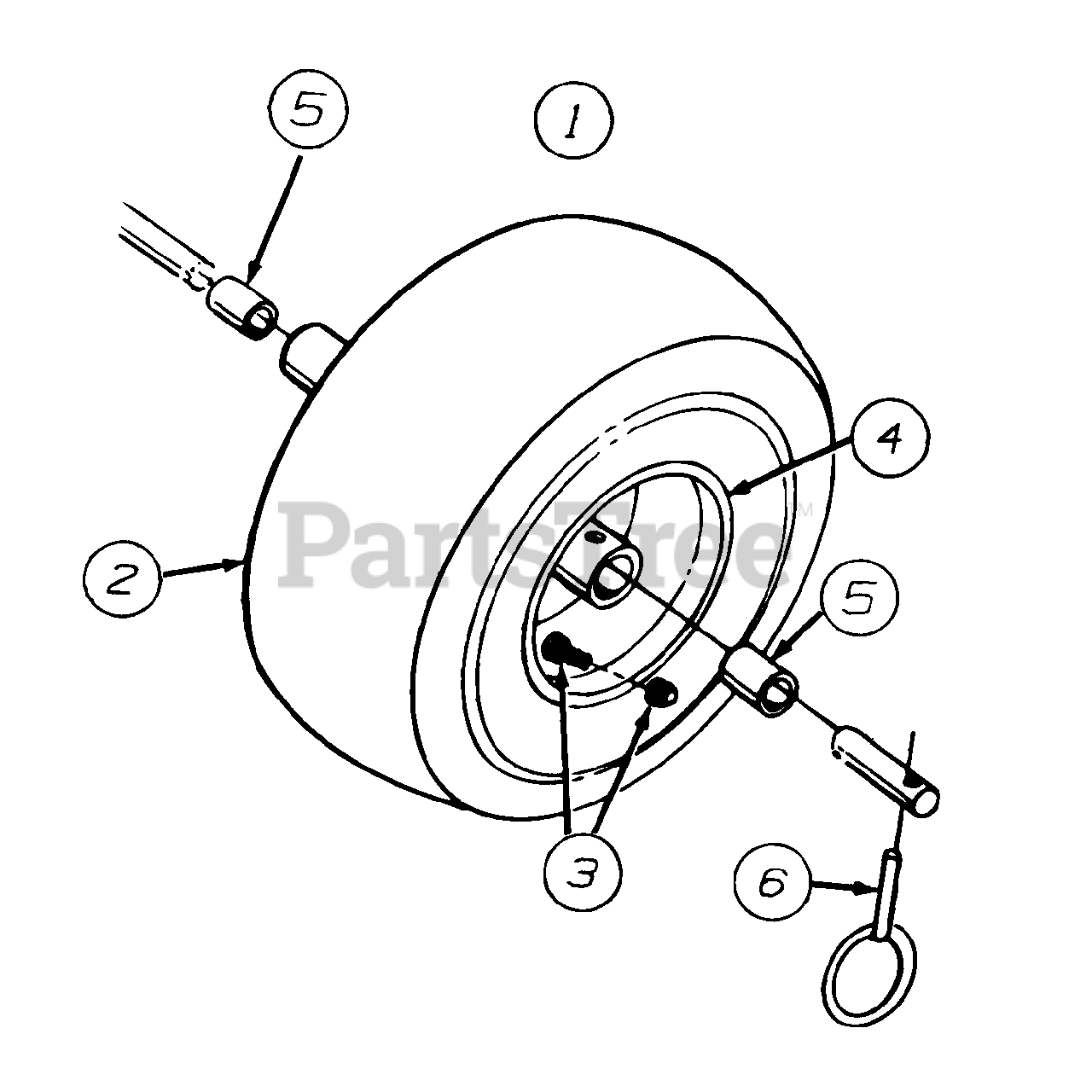

Wheel Assembly Parts Diagram

  • Title

1

MTD 734-1712

16 x 6.5 Wheel Ass'y Complete

Variations

MTD 734-1712-0911

WHEEL ASM-COMP - Carlisle Gray (0911)

$

$

Not available

MTD 734-1712-0931

No Longer Available - Carlisle Beige (0931)

$

$

Not available

MTD 734-1712-0941

No Longer Available WHL ASM 1 - Carlisle Yellow (0941)

$

$

Not available

$

$

2

MTD 734-1525

16 x 6.5 Tire Only

$162.99

$

In Stock, only 2 left!

0

3

MTD 734-0255

16 x 6.5 Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

4

MTD 734-1711

16 x 6.5 Rim Only

Variations

MTD 734-1711-0499

No Longer Available WHEEL-RIM - CUB BEIGE (0499)

$

$

Not available

MTD 734-1711-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 734-1711-0662

No Longer Available WHEEL RIM - OYSTER GRAY (0662)

$

$

Not available

MTD 734-1711-0674

No Longer Available WHEEL-RIM - YARDMAN YELLOW (0674)

$

$

Not available

MTD 734-1711-0688

No Longer Available WHEEL RIM - SPRING GREEN (0688)

$

$

Not available

$

$

5

MTD 741-0401

16 x 6.5 Sleeve Bearing
(Superseded to 941-0401)

$7.49

$

In Stock, Qty 12

0

6

MTD 714-0143

16 x 6.5 Klick Pin
(Superseded to 714-0143A)

$6.49

$

In Stock, Qty 7

0
