316E162-401 - Yard-Man Snow Thrower (1996) Cover & Dash Parts Diagram

Snow Thrower

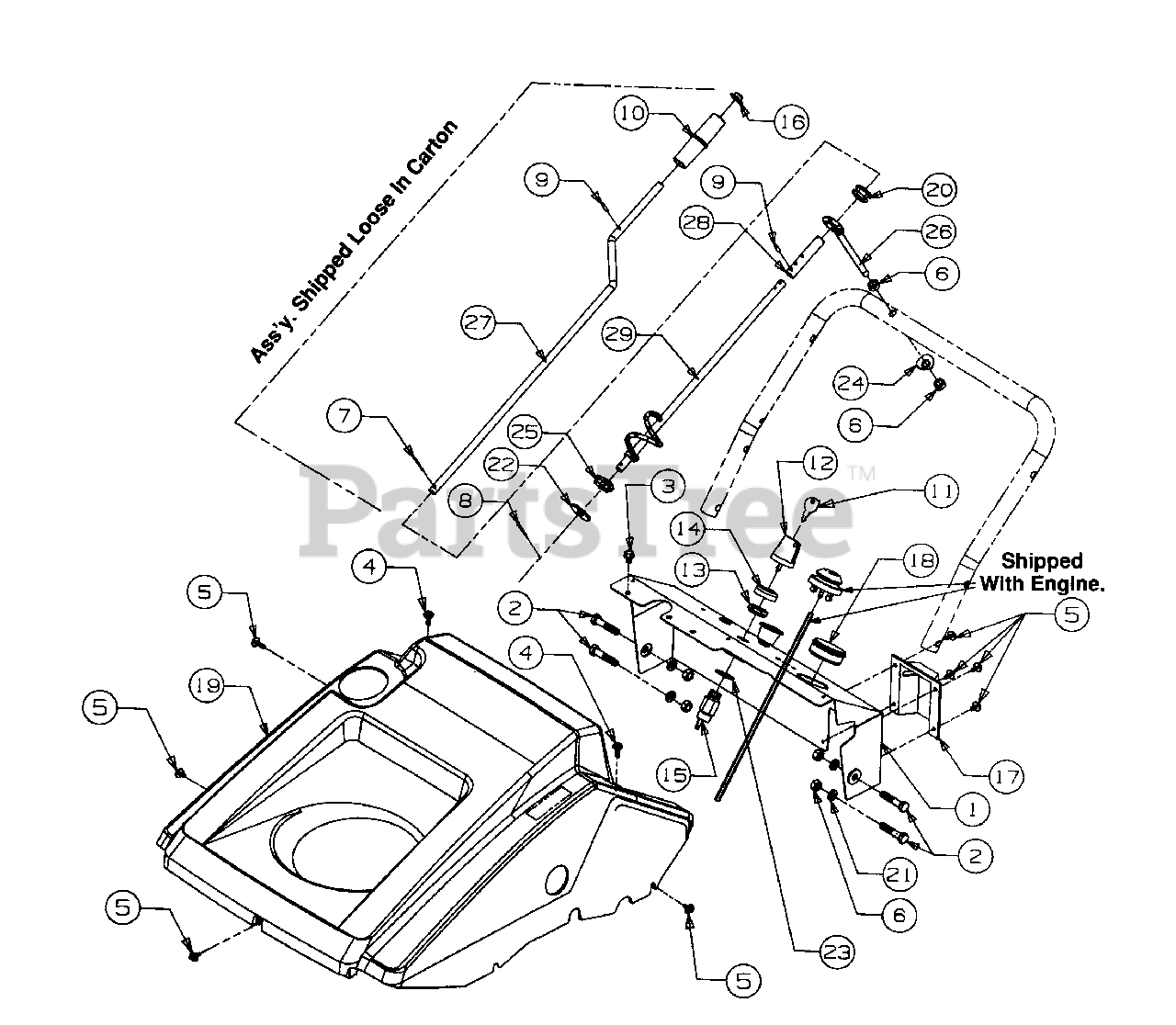

Cover & Dash Parts Diagram

  • Title
1

$

$

Not available

2

MTD 710-0442

Screw - Hex Cap
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0653

Screw - Hex Washer

$4.49

$

In Stock, Qty 8

0

4

MTD 710-1003

Screw - Hex
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

5

MTD 710-1268

Screw - Hex

$4.49

$

In Stock, only 2 left!

0

6

MTD 712-0267

Nut - Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

MTD 714-0111

Pin - Cotter

$4.99

$

In Stock, Qty 13

0

8

MTD 714-0507

Pin - Cotter

$4.49

$

In Stock, only 2 left!

0

9

MTD 715-0138

Pin - Roll
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

10

$10.99

$

In Stock, Qty 5

0

11

MTD 725-0201

Key - Ignition
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

12

MTD 725-1341B

Key - Ignition with Logo

$10.99

$

In Stock, only 1 left!

0

13

MTD 725-1346

Nut - Ignition Switch
(Superseded to 925-1346)

$

$

Not available

14

MTD 725-1347

Cover - Ignition Switch

$4.99

$

In Stock, only 1 left!

0

15

MTD 725-1425

Switch - Key
(Superseded to 925-1425)

$35.99

$

In Stock, Qty 6

0

16

MTD 726-0100

Cap - Push

$4.49

$

In Stock, only 1 left!

0

17

MTD 731-1089

Cover - Choke

$

$

Not available

18

MTD 731-1133

Plug - Insert
(Superseded to 731-1133C)

$

$

Not available

19

MTD 731-1550

Shroud - Yellow

$

$

Not available

20

MTD 735-0234

Grommet - Rubber

$5.49

$

In Stock, only 2 left!

0

21

MTD 736-0119

Washer - Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

MTD 736-0133

Washer - Flat

$5.49

$

In Stock, Qty 7

0

23

MTD 736-0225

Washer - Lock Internal

$4.49

$

In Stock, only 2 left!

0

24

MTD 736-0451

Washer - Saddle

$4.49

$

In Stock, Qty 11

0

25

MTD 741-0403

Bushing - Hex

$

$

Not available

26

MTD 747-0697

Eyebolt - Chute Crank

$8.49

$

In Stock, only 1 left!

0

27

MTD 747-0737

Crank - Chute Upper
(Superseded to 747-0737-0637)

Variations

MTD 747-0737-0637

Upper Chute Crank Black - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

28

MTD 750-0785

Spacer
(Superseded to 950-0785)

$32.99

$

Usually ships in 3-6 days

0

29

MTD 784-5497

Crank - Chute Lower

$

$

Not available
