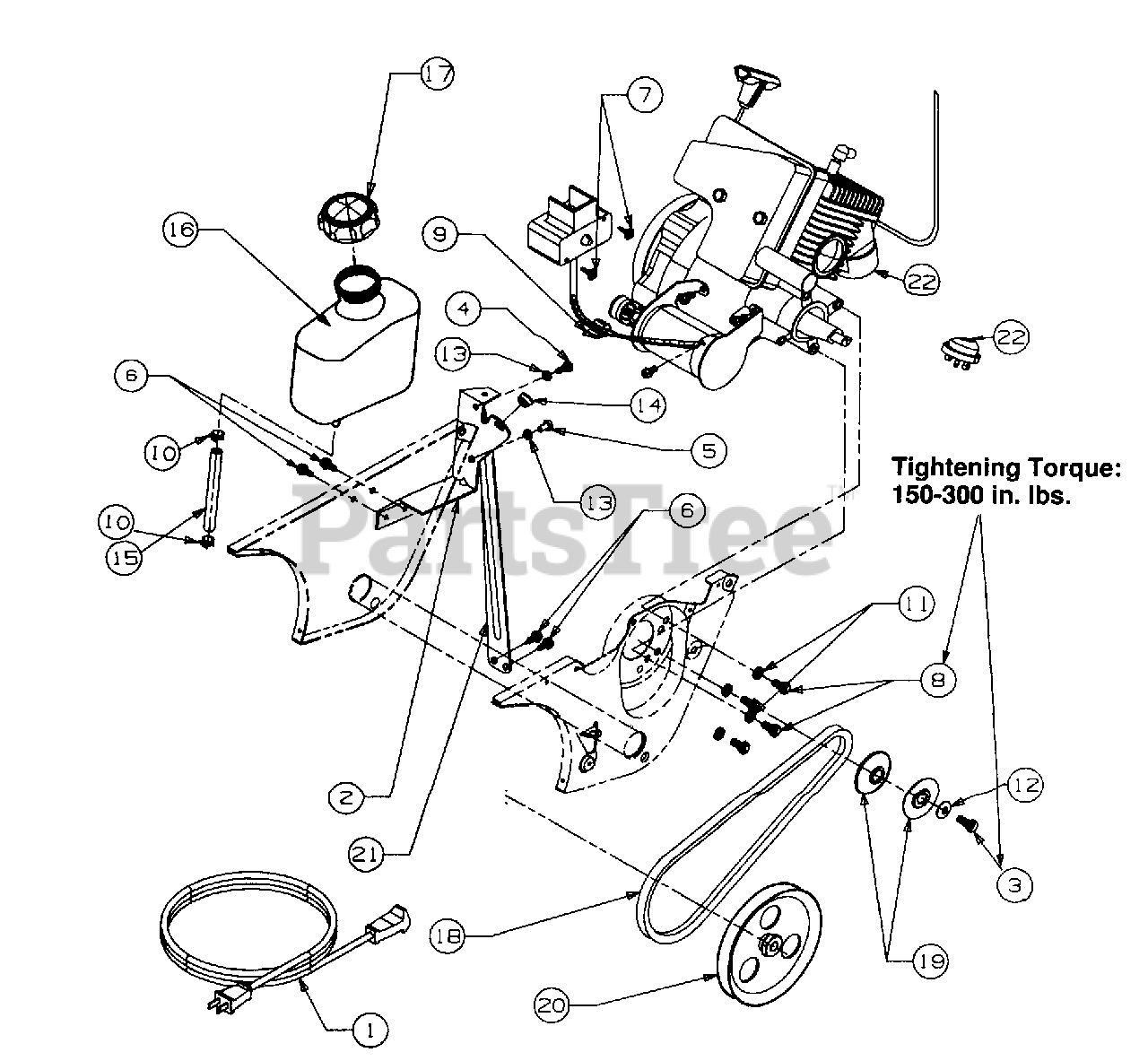

316E150-302 - MTD Snow Thrower (1996) (Builder's Square) Engine & V-Belt Parts Diagram

Snow Thrower

Engine & V-Belt Parts Diagram

  • Title

1

MTD 629-0236

Cord - Extension 110V3M 2 Prong

$

$

Not available

2

MTD 705-5139

Bracket - Support Fuel Tank

$

$

Not available

3

MTD 710-0157

Screw - Hex Cap

$4.49

$

In Stock, Qty 18

0

4

MTD 710-0258

Screw - Hex Cap
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-0289

Screw - Hex
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

6

MTD 710-0896

Screw - Washer

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-1003

Screw - Hex
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

8

MTD 710-3025

Screw - Hex Cap

$3.99

$

In Stock, Qty 8

0

9

MTD 726-0152

Clamp - Mounting

$

$

Not available

10

MTD 726-0205

Clamp - Hose

$3.99

$

In Stock, Qty 18

0

11

MTD 736-0119

Washer - Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 736-0242

Washer - Bell

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0329

Washer - Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

14

MTD 741-0475

Bushing - Plastic
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

15

MTD 751-0535-16

Hose - Fuel Line 16"
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

16

MTD 751-0540

Tank - Fuel 2 Qt.
(Superseded to 751-0540A)

$

$

Not available

17

MTD 751-0603

Cap - Fuel
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

18

MTD 754-0101A

V-Belt
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

19

MTD 756-0416B

V-Pulley Half
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

20

MTD 756-0475

Pulley

$79.99

$

Usually ships in 3-6 days

0

21

MTD 784-5603

Brace - Fuel Tank

Variations

MTD 784-5603-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

22

UNKNOWN

Note: Obtain from Engine Manufacturer

$

$

Not available
