31677 (724) - Toro 24" Snow Thrower (SN: 005000001 - 005999999) (1975) REWIND STARTER NO. 590473 (5 & 7 H.P. SNOWTHROWER MODEL NOS. 31625 AND 31677) Parts Diagram

24" Snow Thrower

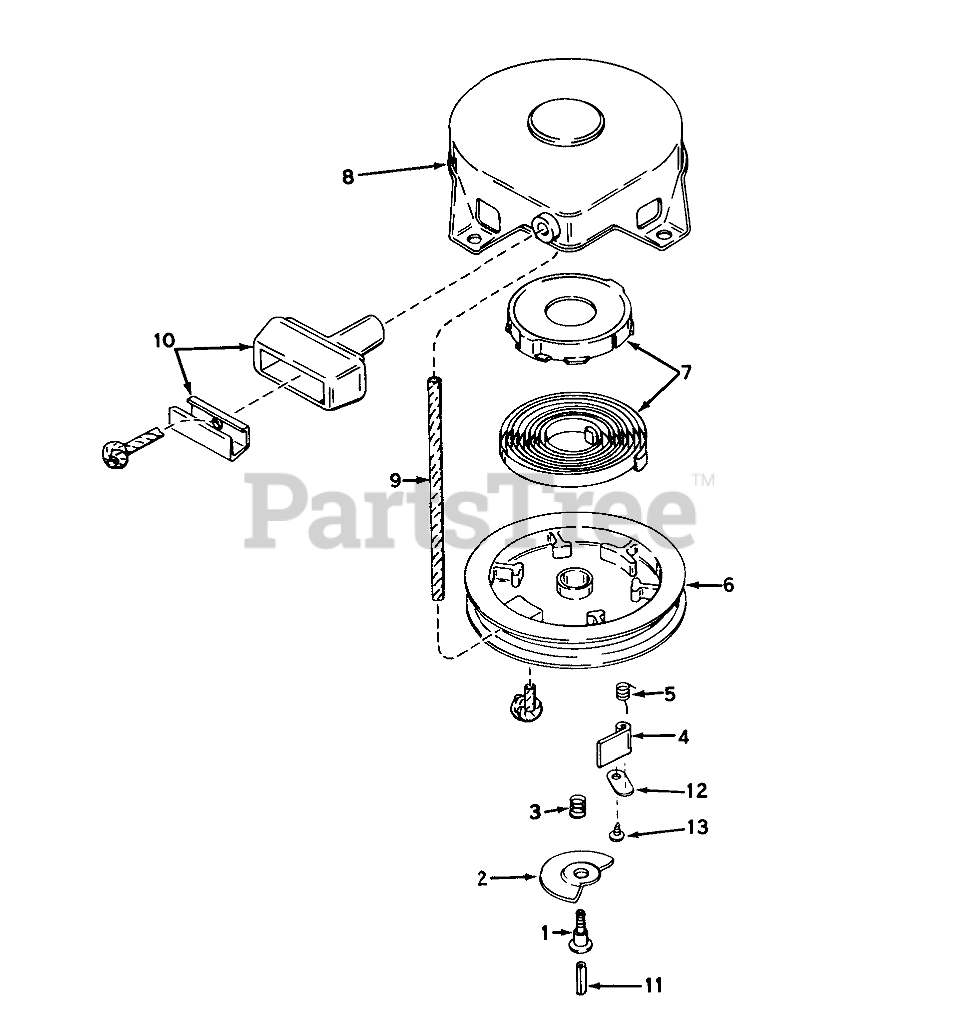

REWIND STARTER NO. 590473 (5 & 7 H.P. SNOWTHROWER MODEL NOS. 31625 AND 31677) Parts Diagram

  • Title
1

Tecumseh 590409

Screw
(Superseded to 590409A)

$3.99

$

In Stock, only 1 left!

0

2

Tecumseh 590474

Cam-Dog

$

$

Not available

3

Tecumseh 590411

Spring-Brake

$3.49

$

In Stock, only 3 left!

0

4

Tecumseh 590148

Dog-Starter

$3.49

$

In Stock, Qty 7

0

5

Tecumseh 590475

Spring-Dog

$3.99

$

In Stock, only 1 left!

0

6

$

$

Not available

7

Tecumseh 590414

Spring & Keeper Assy

$14.99

$

Usually ships in 3-12 days

0

8

Tecumseh 590415

STARTER HOUSING ASSY
(Superseded to 590536)

$

$

Not available

9

Tecumseh 590386

Rope Starter
(Superseded to 590535)

$9.49

$

In Stock, Qty 12

0

10

Tecumseh 590387

Assy., Starter

$3.99

$

In Stock, only 1 left!

0

11

Tecumseh 590459

Centering

$

$

Not available

12

Tecumseh 590476

Retainer-Dog

$5.99

$

In Stock, only 2 left!

0

13

$1.99

$

In Stock, only 3 left!

0
