31677 (724) - Toro 24" Snow Thrower (SN: 005000001 - 005999999) (1975) HANDLE ASSEMBLY Parts Diagram

24" Snow Thrower

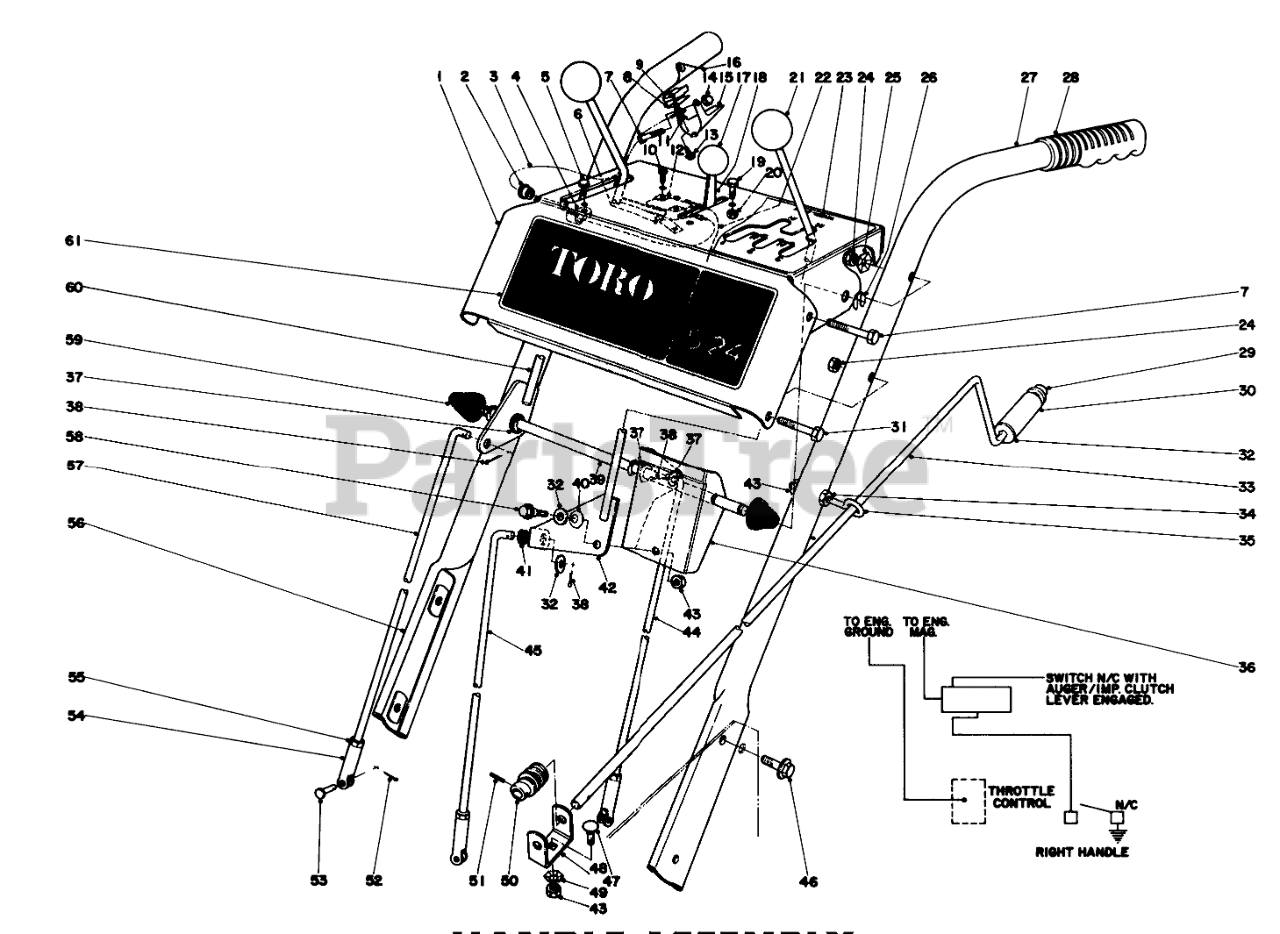

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 23-2350

Escutcheon
(Superseded to 40-8470)

$

$

Not available

2

Toro 2410-33

Snap Bushing

$

$

Not available

3

Toro 20-1950

Wire Ass-y.

$

$

Currently unavailable

4

Toro 20-2810

PLASTIC CLIP

$

$

Not available

5

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 3290-354

NUT-SPEED

$10.99

$

Usually ships in 3-6 days

0

7

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 17-5690

INTERLOCK CONTACT

$38.99

$

Usually ships in 3-6 days

0

9

Toro 17-5680

Insulator

$

$

Not available

10

Toro 3290-93

SCREW-HEAD, PAN

$0.99

$

Usually ships in 3-6 days

0

11

Toro 17-5700

WASHER INSULATOR

$

$

Not available

12

Toro 12-3320

MICRO SWITCH

$71.99

$

In Stock, only 1 left!

0

13

Toro 32104-75

Screw
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 20+

0

14

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

15

Toro 17-5710

Safety Lever

$

$

Not available

16

Toro 17-5720

INTERLOCK SPRING

$

$

Not available

17

Toro 233-36

CONTROL KNOB

$

$

Not available

18

Toro 22-9460

Throttle Control (Model #31625)

$

$

Not available

Toro 17-5520

THROTTLE CONTROL

Note: Not illustrated

$

$

Not available

19

Toro 32104-99

Hex Hd. Sems

$

$

Currently unavailable

20

Toro 32146-18

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

21

Toro 233-21

KNOB

$13.99

$

Usually ships in 3-6 days

0

22

Toro 23-2530

Wire Assembly

$

$

Currently unavailable

23

Toro 20-2000

Decal Instruction

$

$

Currently unavailable

24

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

25

Toro 3290-257

Washer

$

$

Not available

26

Toro 32151-43

RING-CLIP

$9.99

$

Usually ships in 3-6 days

0

27

Toro 20-1860

Handle Left
(Superseded to 25-6041)

$

$

Not available

28

Toro 6-0450

Grip Handle
(Superseded to 74-1380)

$

$

Not available

29

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

30

Toro 20-2060

CHUTE CONTROL GRIP

$

$

Not available

31

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

32

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 17-5750

CHUTE CONTROL ROD

$

$

Not available

34

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

35

Toro 20-8670

Eye Bolt

$

$

Not available

36

Toro 20-2010

SHIFT BRACKET

$

$

Not available

37

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

39

Toro 20-1910

PIVOT ROD

$

$

Not available

40

Toro 3290-213

7/16 SPRING WASHER

$

$

Not available

41

Toro 237-89

GROMMET-RUBBER

$3.49

$

In Stock, only 4 left!

0

42

Toro 20-2020

SHIFT LEVER WA

$

$

Not available

43

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

44

Toro 20-1970

TRACTION CONTROL ROD

$

$

Not available

45

Toro 20-1980

SPEED SELECTOR ROD

$

$

Not available

46

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

47

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

48

Toro 11-7110

WORM BRACKET
(Superseded to 117110-01)

$

$

Not available

49

Toro 329-238

Washer Pyramidal

$

$

Currently unavailable

50

Toro 8-8600

GEAR-WORM, CHUTE

$137.99

$

Usually ships in 3-6 days

0

51

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

52

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

53

Toro 283-1

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

54

Toro 5-0865

Clevis
(Superseded to 39-4640)

$62.99

$

Usually ships in 3-6 days

0

55

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

56

Toro 20-1880

Handle Right
(Superseded to 25-6030)

$

$

Not available

57

Toro 20-1960

Auger Control Rod
(Superseded to 20-1980)

$

$

Not available

58

Toro 11-8140

SHOULDER SCREW

$

$

Not available

59

Toro 17-5630

CONICAL SPRING

$

$

Not available

60

Toro 20-1920

LEVER WA

$64.99

$

Usually ships in 3-6 days

0

61

Toro 22-9720

ESCUTCHEON DECAL

$

$

Not available

Toro 22-9760

ESCUTCHEON DECAL

Note: Not illustrated

$

$

Not available

Toro 20-2050

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
