31677 (724) - Toro 24" Snow Thrower (SN: 005000001 - 005999999) (1975) ENGINE, TECUMSEH MODEL NO. HS50-67074 (5 H.P. SNOWTHROWER MODEL NO. 31625) Parts Diagram

24" Snow Thrower

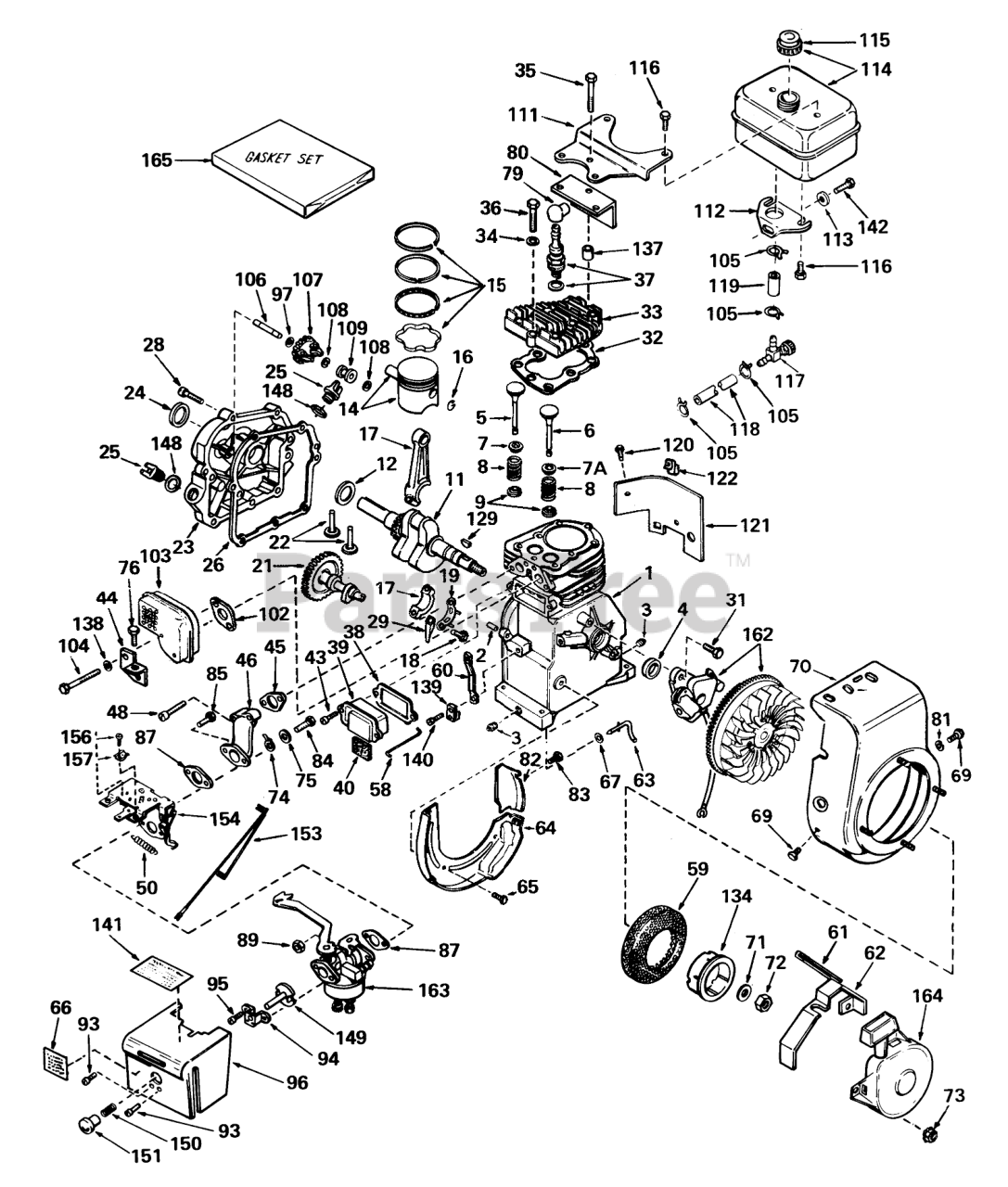

ENGINE, TECUMSEH MODEL NO. HS50-67074 (5 H.P. SNOWTHROWER MODEL NO. 31625) Parts Diagram

  • Title

1

Tecumseh 33674

Cylinder Assy. (Incl. Nos.2, 3&4)
(Superseded to 33674B)

$

$

Not available

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 2 left!

0

4

Tecumseh 32600

Seal-Oil

$

$

Not available

5

Tecumseh 32644

Valve, Intake (Std.)(Incl. Nos. 7, 8 & 9)
(Superseded to 32644A)

$9.99

$

In Stock, only 1 left!

0

5

Tecumseh 32645

Valve, Intake (1/32" Oversize)(Incl. Nos. 7, 8 & 9)
(Superseded to 32645A)

$61.99

$

In Stock, only 2 left!

0

6

Tecumseh 29313B

Valve, Exhaust (Std.)(Incl. Nos. 7A, 8 & 9)
(Superseded to 29313C)

$

$

Not available

6

Tecumseh 29315B

Valve, Exhaust (1/32" Oversize)(Incl. Nos. 7A, 8 & 9)
(Superseded to 29315C)

$

$

Not available

7

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

7A

Tecumseh 33678

Cap, Upper Valve Spg (Exhaust)

$

$

Currently unavailable

8

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

9

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, Qty 5

0

11

Tecumseh 33675

Crankshaft Assy.

$

$

Not available

12

Tecumseh 32323

Washer-Thrust

$8.49

$

Usually ships in 3-12 days

0

14

Tecumseh 33562

Piston & Pin Assy. (Incl. 2 of No.16)(Std.)
(Superseded to 33562B)

$44.99

$

Usually ships in 3-12 days

0

14

Tecumseh 33563

Piston & Pin Assy. (Incl. 2 of No.16)(.010 Oversize)

$

$

Currently unavailable

14

Tecumseh 33564

Piston & Pin Assy. (Incl. 2 of No.16)(.020 Oversize)
(Superseded to 33564B)

$

$

Not available

15

Tecumseh 33567

Ring Set-Piston Std.
(Superseded to 40004)

$74.99

$

In Stock, only 1 left!

0

15

Tecumseh 33568

Ring Set-Piston .010 oversize

$

$

Not available

15

Tecumseh 33569

Ring Set-Piston .020 oversize

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 33661

Rod Assy., Connecting (Incl. Nos. 18, 19 & 29)
(Superseded to 32875)

$47.99

$

Usually ships in 3-12 days

0

18

Tecumseh 32610

Connecting Rod Bolt
(Superseded to 32610A)

$1.99

$

In Stock, Qty 6

0

19

Tecumseh 32609

Plate Lock

$0.99

$

Usually ships in 3-12 days

0

21

Tecumseh 33158

Camshaft
(Superseded to 37040)

$30.99

$

In Stock, only 1 left!

0

22

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

23

Tecumseh 32700A

Cover, Cylinder (Incl. Nos. 24, 25, 106 & 148)
(Superseded to 32700B)

$

$

Not available

24

Tecumseh 27897

Seal-Oil

$8.49

$

In Stock, Qty 17

0

25

Tecumseh 27625

Plug, Oil Filler (Incl. No. 148)

$2.49

$

In Stock, Qty 7

0

26

Tecumseh 27677

Gasket-Cylinder Cover
(Superseded to 27677A)

Note: Indicates items included in Gasket Set No. 33239.

$7.49

$

In Stock, Qty 7

0

28

Tecumseh 30564

Screw
(Superseded to 650451)

$1.99

$

In Stock, only 4 left!

0

29

Tecumseh 32654

Dipper-Oil

$8.99

$

In Stock, only 4 left!

0

31

Tecumseh 650489

Screw

$

$

Not available

32

Tecumseh 33554

Oil Fill Tube
(Superseded to 36443)

Note: Indicates items included in Gasket Set No. 33239.

$5.99

$

In Stock, Qty 9

0

33

Tecumseh 33016

Head Cylinder
(Superseded to 37675)

$41.99

$

In Stock, only 1 left!

0

34

Tecumseh 26073

Washer

$

$

Not available

35

Tecumseh 650694

Screw Hex Hd. Cap
(Superseded to 650694A)

$3.49

$

In Stock, Qty 20+

0

36

Tecumseh 6021

Screw
(Superseded to 6021A)

$1.99

$

In Stock, only 3 left!

0

37

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.49

$

In Stock, Qty 11

0

38

Tecumseh 31619

Gasket Breather
(Superseded to 31619A)

Note: Indicates items included in Gasket Set No. 33239.

$7.49

$

In Stock, only 2 left!

0

39

Tecumseh 31337

Breather Assy. (Incl. Nos.38 & 40)
(Superseded to 31337B)

$18.99

$

In Stock, only 1 left!

0

40

Tecumseh 31410

Element-Breather

$1.99

$

In Stock, Qty 20+

0

43

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

44

Tecumseh 33333

Bracket-Cover, Carburetor

$3.99

$

Usually ships in 3-12 days

0

45

Tecumseh 33673

Gasket-Intake
(Superseded to 33673A)

Note: Indicates items included in Gasket Set No. 33239.

$5.99

$

In Stock, only 1 left!

0

46

Tecumseh 33691

Pipe-Intake

$25.99

$

Usually ships in 3-12 days

0

48

Tecumseh 650664

Screw (1/4-20 x 1-19/32)

$1.99

$

In Stock, Qty 9

0

50

Tecumseh 31426

Spring-Extension

$3.99

$

In Stock, Qty 20+

0

58

Tecumseh 32855

Link, Governor to Throttle

$1.49

$

Usually ships in 3-12 days

0

59

Tecumseh 33668

Screen-Starter

$7.49

$

Usually ships in 3-12 days

0

60

Tecumseh 32871

Lever, Governor

$

$

Currently unavailable

61

Tecumseh 32576

Seal, Snowguard

$3.99

$

Usually ships in 3-12 days

0

62

Tecumseh 31680

Guard, Starter

$5.49

$

Usually ships in 3-12 days

0

63

Tecumseh 31334

Rod-Governor

$5.49

$

In Stock, only 1 left!

0

64

Tecumseh 33342

Baffle-Blower Housing
(Superseded to 36552)

$9.49

$

Usually ships in 3-12 days

0

65

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

66

Tecumseh 31681

Decal, Instruction
(Superseded to 36261)

$

$

Not available

67

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

69

Tecumseh 29212

Screw
(Superseded to 29716)

$1.49

$

In Stock, Qty 6

0

70

Tecumseh 33663

Housing Blower
(Superseded to 33663E)

$

$

Currently unavailable

71

Tecumseh 650763

Washer-Spring
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

72

Tecumseh 650607

Hex Nut

$1.99

$

In Stock, Qty 7

0

73

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 1 left!

0

74

Tecumseh 32940

Clip, Grounding

$

$

Currently unavailable

75

Tecumseh 20747

Washer

$

$

Currently unavailable

76

Tecumseh 650735

Screw (10-24 x 3/8)

$1.99

$

In Stock, only 2 left!

0

79

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

80

Tecumseh 33344

Baffle-Heat

$5.49

$

In Stock, only 1 left!

0

81

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

82

Tecumseh 33341

Baffle-Extension
(Superseded to 35883)

$1.99

$

In Stock, Qty 5

0

83

Tecumseh 650701

Screw-Hex Washer Hd.

$1.99

$

Usually ships in 3-12 days

0

84

Tecumseh 6202

Screw
(Superseded to 6201)

$

$

Not available

85

Tecumseh 650601

Screw-Fil. Hd.

$

$

Currently unavailable

87

Tecumseh 26756

Gasket

Note: Indicates items included in Gasket Set No. 33239.

$2.99

$

In Stock, Qty 9

0

89

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 1 left!

0

93

Tecumseh 650257

Screw (8-32 X 5/16)

$1.49

$

In Stock, Qty 17

0

94

Tecumseh 32398

Bracket-Choke

$19.99

$

In Stock, only 3 left!

0

95

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

96

Tecumseh 32865A

Cover, Carburetor

$

$

Currently unavailable

97

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

102

Tecumseh 33670

Gasket-Exhaust
(Superseded to 35865)

Note: Indicates items included in Gasket Set No. 33683.

$2.49

$

In Stock, only 2 left!

0

103

Tecumseh 33697

Muffler
(Superseded to 33697A)

$40.99

$

Usually ships in 3-12 days

0

104

Tecumseh 650327

Screw-Fil. Hd.
(Superseded to 650327A)

$6.99

$

In Stock, Qty 13

0

105

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

106

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

107

Tecumseh 30591

Gear Assy., Governor (Incl. No. 97)

$13.99

$

In Stock, only 1 left!

0

108

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

109

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

111

Tecumseh 28371A

Bracket, Fuel tank
(Superseded to 36247)

$11.99

$

Usually ships in 3-12 days

0

112

Tecumseh 32762

Bracket, Fuel Tank Lower

$

$

Currently unavailable

113

Tecumseh 650675

Washer

$1.99

$

Usually ships in 3-12 days

0

114

Tecumseh 33120

Tank Assy., Fuel (Incl. Nos. 115 & 116)
(Superseded to 35584)

$45.99

$

In Stock, only 4 left!

0

115

Tecumseh 30998B

Cap, Fuel
(Superseded to 34210)

$8.49

$

In Stock, Qty 12

0

116

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, only 3 left!

0

117

Tecumseh 32961

Valve-Shut Off
(Superseded to 35857)

$13.99

$

Usually ships in 3-12 days

0

118

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 2 left!

0

119

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

120

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

121

Tecumseh 29745

Extension-Blower

$3.99

$

Usually ships in 3-12 days

0

122

Tecumseh 27275

51004 GIL ROTARY TI

$1.99

$

In Stock, Qty 7

0

129

Tecumseh 27247

Key Flywheel
(Superseded to 610961)

$1.49

$

In Stock, Qty 20+

0

134

Tecumseh 33667

Cup, Starter

$

$

Not available

137

Tecumseh 28212

pacer

$1.99

$

In Stock, Qty 5

0

138

Tecumseh 16644

Washer

$

$

Currently unavailable

139

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

140

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

141

Tecumseh 31682

Decal, Operating

$

$

Currently unavailable

142

Tecumseh 650738

Screw (1/4-20 X 5/8)

$3.99

$

In Stock, only 1 left!

0

148

Tecumseh 29673

Gasket

Note: Indicates items included in Gasket Set No. 33683.

$1.99

$

In Stock, only 3 left!

0

149

Tecumseh 32397

Plate, Choke

$

$

Currently unavailable

150

Tecumseh 32399

Spring, Compression

$

$

Currently unavailable

151

Tecumseh 32400

Knob, Choke

$

$

Not available

153

Tecumseh 34047

Wire, Ground

$

$

Currently unavailable

154

Tecumseh 33987

Bracket Assy., Speed Control (Remote)

$

$

Currently unavailable

156

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

157

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

162

Tecumseh 610866

Decal-Fuel Instructions

$

$

Currently unavailable

163

Tecumseh 631704

Carburetor (Incl. 1 of No. 87)
(Superseded to 631953)

$122.99

$

Usually ships in 3-12 days

0

164

Tecumseh 590473

Starter Assy., Rewind
(Superseded to 590602)

$

$

Not available

165

Tecumseh 33683

Gasket Set
(Superseded to 33683C)

$20.99

$

In Stock, only 4 left!

0
