31677 (724) - Toro 24" Snow Thrower (SN: 005000001 - 005999999) (1975) ENGINE, TECUMSEH MODEL NO. H70-130176B (7 H.P. SNOWTHROWER MODEL NO. 31677) Parts Diagram

24" Snow Thrower

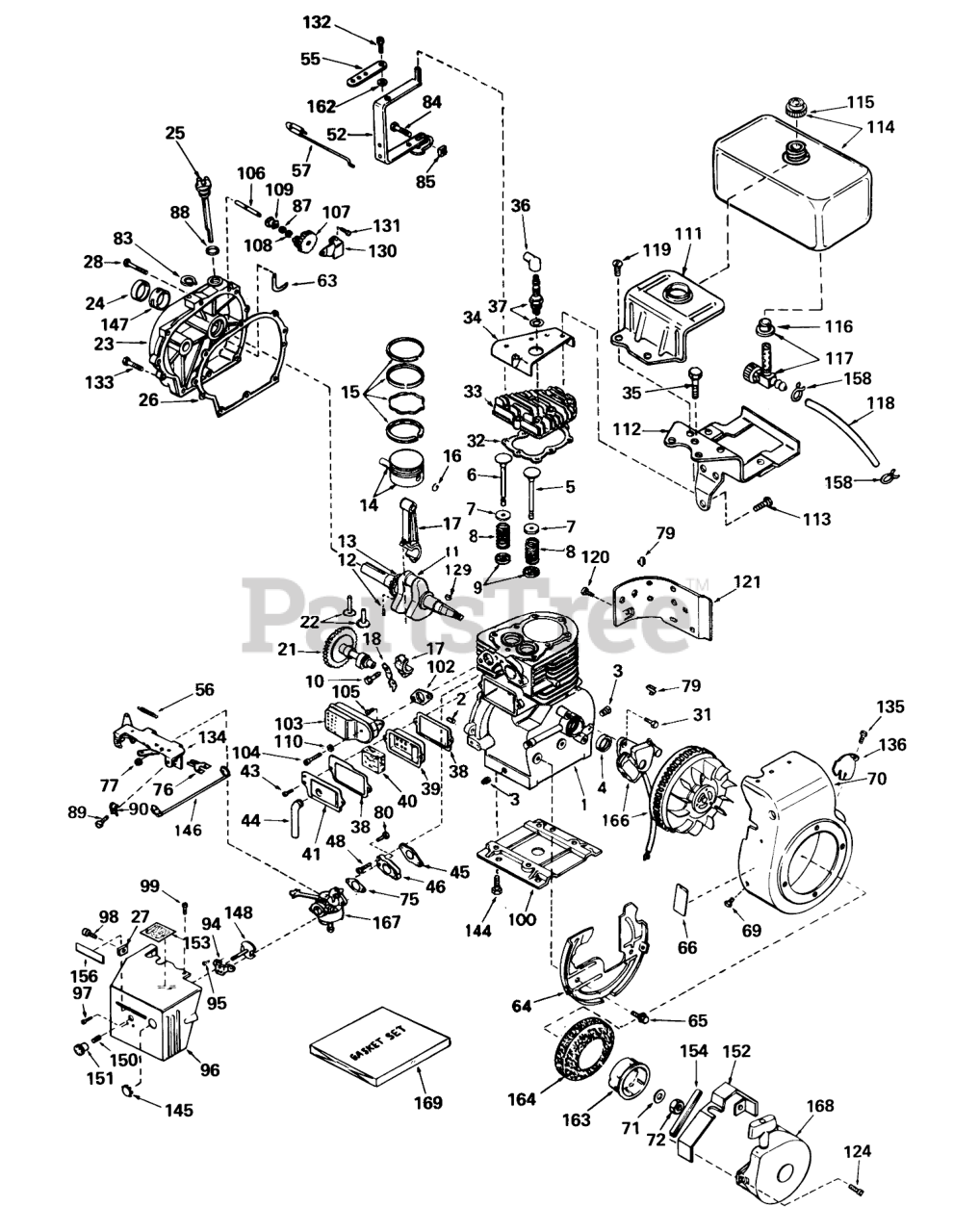

ENGINE, TECUMSEH MODEL NO. H70-130176B (7 H.P. SNOWTHROWER MODEL NO. 31677) Parts Diagram

  • Title

1

Tecumseh 32586B

Cylinder Assy. (Incl. Nos. 2, 3 & 4)
(Superseded to 32586C)

$

$

Not available

2

Tecumseh 27652

Pin-Dowel

$2.49

$

Usually ships in 3-12 days

0

3

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 2 left!

0

4

Tecumseh 32630

Oil Seal

$8.49

$

In Stock, only 1 left!

0

5

Tecumseh 32783

Valve, Intake (Std.)(Incl. #9)

$16.99

$

In Stock, only 2 left!

0

5

Tecumseh 32784

Valve, Intake (1/32" oversize)(Incl. No. 9)

$69.99

$

Usually ships in 3-12 days

0

6

Tecumseh 27878A

Valve, Exhaust (Std.)(Incl. No. 9)

$23.99

$

Usually ships in 3-12 days

0

6

Tecumseh 27880A

Valve, Exhaust (1/32" oversize)(Incl. No. 9)

$

$

Not available

7

Tecumseh 27882

Cap-Spring, Valve

$1.99

$

In Stock, Qty 5

0

8

Tecumseh 27881

Spring-Valve

$3.99

$

Usually ships in 3-12 days

0

9

Tecumseh 32581

Keeper-Spring, Valve

$6.49

$

In Stock, Qty 8

0

10

Tecumseh 650662

Screw, Hex Hd.
(Superseded to 650662C)

$3.99

$

Usually ships in 3-12 days

0

11

Tecumseh 33859

Crankshaft Assy. (Incl. Nos. 12 & 13)
(Superseded to 32587)

$198.99

$

Usually ships in 3-12 days

0

12

Tecumseh 29783

Pin, Groove

$1.99

$

Usually ships in 3-12 days

0

13

Tecumseh 27884

Gear-Crankshaft

$11.99

$

In Stock, only 1 left!

0

14

Tecumseh 32592

Piston & Pin Assy. (Incl. 2 of No.16)(Std.)
(Superseded to 32592B)

$52.99

$

In Stock, only 1 left!

0

14

Tecumseh 32593

Piston & Pin Assy. (Incl. 2 of No.16)(.010 oversize)
(Superseded to 32593B)

$57.99

$

In Stock, only 1 left!

0

14

Tecumseh 32594

Piston & Pin Assy. (Incl. 2 of No.16)(.020 oversize)
(Superseded to 32594B)

$61.99

$

Usually ships in 3-12 days

0

15

Tecumseh 32595

"O"Ring

$

$

Not available

15

Tecumseh 32596

Ring Set (.010" OS)

$

$

Not available

15

Tecumseh 32597

Ring Set (.020" OS)

$

$

Not available

16

Tecumseh 27888

Ring-Retaining, Piston Pin

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 32591B

Rod Assy., Connecting (Incl. Nos.10 & 18)
(Superseded to 32591C)

$

$

Not available

18

Tecumseh 32590

Plate, Lock

$

$

Not available

21

Tecumseh 32115

55012A GIL SNWTHWR

$

$

Not available

22

Tecumseh 27893

Lifter Valve
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

23

Tecumseh 31303B

Cover, Cylinder (Incl. Nos. 24, 106 & 147)
(Superseded to 31303C)

$128.99

$

Usually ships in 3-12 days

0

24

Tecumseh 28427

Oil Seal

$6.99

$

In Stock, only 2 left!

0

25

Tecumseh 31297

Dipstick, Oil (Incl. No. 88)
(Superseded to 34011B)

$15.99

$

In Stock, only 1 left!

0

26

Tecumseh 30684

Gasket-Cover, Cylinder

Note: Indicates items included in Gasket Set No. 33239.

$4.49

$

In Stock, Qty 5

0

27

Tecumseh 650764

Nut-U Type

$1.99

$

Usually ships in 3-12 days

0

28

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

31

Tecumseh 650489

Screw

$

$

Not available

32

Tecumseh 32631

Gasket-Cylinder Head
(Superseded to 32631A)

Note: Indicates items included in Gasket Set No. 33239.

$11.99

$

In Stock, Qty 8

0

33

Tecumseh 30938A

CYLINDER HEAD
(Superseded to 36446)

$

$

Not available

34

Tecumseh 30939A

Cover-Head, Cylinder
(Superseded to 30939B)

$

$

Not available

35

Tecumseh 650697

Screw Hex Hd. Cap
(Superseded to 650697A)

$1.99

$

In Stock, Qty 5

0

36

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 2 left!

0

37

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.99

$

In Stock, Qty 8

0

38

Tecumseh 27896

Gasket-Breather
(Superseded to 27896A)

Note: Indicates items included in Gasket Set No. 33239.

$1.49

$

In Stock, Qty 5

0

39

Tecumseh 28423

Body-Breather

$13.99

$

In Stock, only 1 left!

0

40

Tecumseh 28424

Element-Breather

$3.99

$

In Stock, Qty 9

0

41

Tecumseh 28425

Cover-Valve

$7.49

$

In Stock, only 1 left!

0

43

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

44

Tecumseh 27627

Tube-Breather
(Superseded to 35350)

$6.49

$

In Stock, only 1 left!

0

45

Tecumseh 27915

Gasket-Intake
(Superseded to 27915A)

Note: Indicates items included in Gasket Set No. 33239.

$5.99

$

In Stock, Qty 14

0

46

Tecumseh 30195A

Flange, Carburetor (Incl. Nos. 77 & 80)
(Superseded to 34712)

$

$

Not available

48

Tecumseh 30196

Screw

$1.99

$

In Stock, Qty 8

0

52

Tecumseh 32326A

Lever, Governor

$16.99

$

Usually ships in 3-12 days

0

55

Tecumseh 30205

Bracket Governor adjusting

$1.99

$

In Stock, only 1 left!

0

56

Tecumseh 30826

Spring, Extension

$3.99

$

In Stock, only 1 left!

0

57

Tecumseh 30824

Link, Governor to Throttle

$1.99

$

In Stock, Qty 5

0

63

Tecumseh 30699B

Rod, Governor
(Superseded to 30699C)

$17.99

$

In Stock, only 1 left!

0

64

Tecumseh 29536

Baffle Blower Housing

$18.99

$

Usually ships in 3-12 days

0

65

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

66

Tecumseh 31681

Decal, Instruction
(Superseded to 36261)

$

$

Not available

69

Tecumseh 29747A

Screw, Hex Hd.
(Superseded to 29747B)

$1.99

$

In Stock, Qty 9

0

70

Tecumseh 32158B

Housing, Blower (Incl. Nos. 135 & 136)
(Superseded to 32158E)

$

$

Not available

71

Tecumseh 650490

Washer
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

72

Tecumseh 8116

Nut

$1.99

$

In Stock, only 4 left!

0

75

Tecumseh 31688

Gasket-Carburetor
(Superseded to 31688A)

Note: Indicates items included in Gasket Set No. 33239.

$2.49

$

In Stock, Qty 8

0

76

Tecumseh 33177

Terminal

$1.99

$

In Stock, only 3 left!

0

77

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 7

0

79

Tecumseh 27275

51004 GIL ROTARY TI

$1.99

$

In Stock, Qty 6

0

80

Tecumseh 650572

Screw
(Superseded to 34712)

$

$

Not available

83

Tecumseh 29642

Ring-Retaining

$100.99

$

In Stock, only 1 left!

0

84

Tecumseh 29826

Screw

$1.99

$

In Stock, only 3 left!

0

85

Tecumseh 29216

Nut-Lock

$1.99

$

In Stock, only 2 left!

0

87

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 5

0

88

Tecumseh 29673

Gasket

Note: Indicates items included in Gasket Set No. 33239.

$1.99

$

In Stock, only 2 left!

0

89

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

90

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

94

Tecumseh 32398

Bracket-Choke

$19.99

$

In Stock, only 1 left!

0

95

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

96

Tecumseh 32911

Cover, Carburetor

$

$

Currently unavailable

97

Tecumseh 650257

Screw (8-32 X 5/16)

$1.49

$

In Stock, Qty 15

0

98

Tecumseh 650760

Screw (8-32 x 3/8)

$1.99

$

In Stock, Qty 7

0

99

Tecumseh 650765

Screw (10-32x1/2)

$1.49

$

In Stock, only 2 left!

0

100

Tecumseh 29538

Base Engine

$17.99

$

Usually ships in 3-12 days

0

102

Tecumseh 27930

Gasket Exhaust
(Superseded to 35865)

Note: Indicates items included in Gasket Set No. 33239.

$2.49

$

In Stock, only 4 left!

0

103

Tecumseh 32401

Muffler

$35.99

$

In Stock, only 1 left!

0

104

Tecumseh 650694

Screw Hex Hd. Cap
(Superseded to 650694A)

$3.49

$

In Stock, Qty 20+

0

105

Tecumseh 30196

Screw

$1.99

$

In Stock, Qty 8

0

106

Tecumseh 31845

Shaft-Governor
(Superseded to 37587)

$

$

Not available

107

Tecumseh 30591

Gear Assy., Governor (Incl. No.87)

$13.99

$

Usually ships in 3-12 days

0

108

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, Qty 5

0

109

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, Qty 5

0

110

Tecumseh 26073

Washer

$

$

Not available

111

Tecumseh 33352

Plate, Fuel Tank Mounting
(Superseded to 33352A)

$

$

Currently unavailable

112

Tecumseh 33353

Bracket, Fuel Tank

$

$

Currently unavailable

113

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

114

Tecumseh 33350

Tank Assy., Fuel (Incl. Nos.115 & 117)

$

$

Currently unavailable

115

Tecumseh 30998B

Cap, Fuel
(Superseded to 34210)

$8.49

$

In Stock, Qty 11

0

116

Tecumseh 33679

Bushing, Fuel Fitting

$3.49

$

In Stock, only 2 left!

0

117

Tecumseh 33351

Valve, Fuel Strainer & Shut off (Incl. No.116)

$15.99

$

Usually ships in 3-12 days

0

118

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 4 left!

0

119

Tecumseh 650273

Screw, Fil, Slotted Hd. Sems

$1.99

$

In Stock, only 1 left!

0

120

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

121

Tecumseh 30622

Emnsion, Blower Housing
(Superseded to 30622A)

$

$

Not available

124

Tecumseh 29716

Screw

$1.49

$

In Stock, only 4 left!

0

129

Tecumseh 32589

Key-Flywheel

$1.49

$

In Stock, only 4 left!

0

130

Tecumseh 31843A

Bracket, Governor

$5.49

$

Usually ships in 3-12 days

0

131

Tecumseh 28763

Screw (10-32 x 35/64)

$1.99

$

In Stock, only 3 left!

0

132

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 5

0

133

Tecumseh 650493

Screw

$3.99

$

In Stock, Qty 7

0

134

Tecumseh 33108

Control Assy., Remote Speed (Incl. No. 56)
(Superseded to 33108A)

$

$

Not available

135

Tecumseh 650736

Screw, Pan Hd.

$1.99

$

Usually ships in 3-12 days

0

136

Tecumseh 33013

Screw

$3.99

$

Usually ships in 3-12 days

0

144

Tecumseh 650542

Screw

$1.99

$

In Stock, only 3 left!

0

145

Tecumseh 31291

Plug

$

$

Currently unavailable

146

Tecumseh 28468

Wire, Ground
(Superseded to 35349)

$

$

Not available

147

Tecumseh 31546

Bushing-Crankshaft

$14.99

$

Usually ships in 3-12 days

0

148

Tecumseh 32397

Plate, Choke

$

$

Currently unavailable

150

Tecumseh 32399

Spring, Compression

$

$

Currently unavailable

151

Tecumseh 32400

Knob, Choke

$

$

Not available

152

Tecumseh 31680

Guard, Starter

$5.49

$

Usually ships in 3-12 days

0

153

Tecumseh 31682

Decal, Operating

$

$

Currently unavailable

154

Tecumseh 32576

Seal, Snowguard

$3.99

$

Usually ships in 3-12 days

0

156

Tecumseh 31683

Decal, Choke

$

$

Currently unavailable

158

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

162

Tecumseh 29918

Washer-Lock

$1.99

$

In Stock, only 4 left!

0

163

Tecumseh 32125

Cup-Starter
(Superseded to 37966)

$10.99

$

Usually ships in 3-12 days

0

164

Tecumseh 590417

Screen, Air

$7.49

$

In Stock, only 1 left!

0

166

Tecumseh 610694A

Magneto

$

$

Currently unavailable

167

Tecumseh 631459

Carburetor (Incl. No. 75)
(Superseded to 631793)

$122.99

$

Usually ships in 3-12 days

0

168

Tecumseh 590473

Starter Assy., Rewind
(Superseded to 590602)

$

$

Not available

169

Tecumseh 33239

Gasket Set
(Superseded to 33239A)

$35.99

$

Usually ships in 3-12 days

0
