31677 (724) - Toro 24" Snow Thrower (SN: 005000001 - 005999999) (1975) CARBURETOR NO. 631459 (7 H.P. SNOWTHROWER MODEL NO. 31677) Parts Diagram

24" Snow Thrower

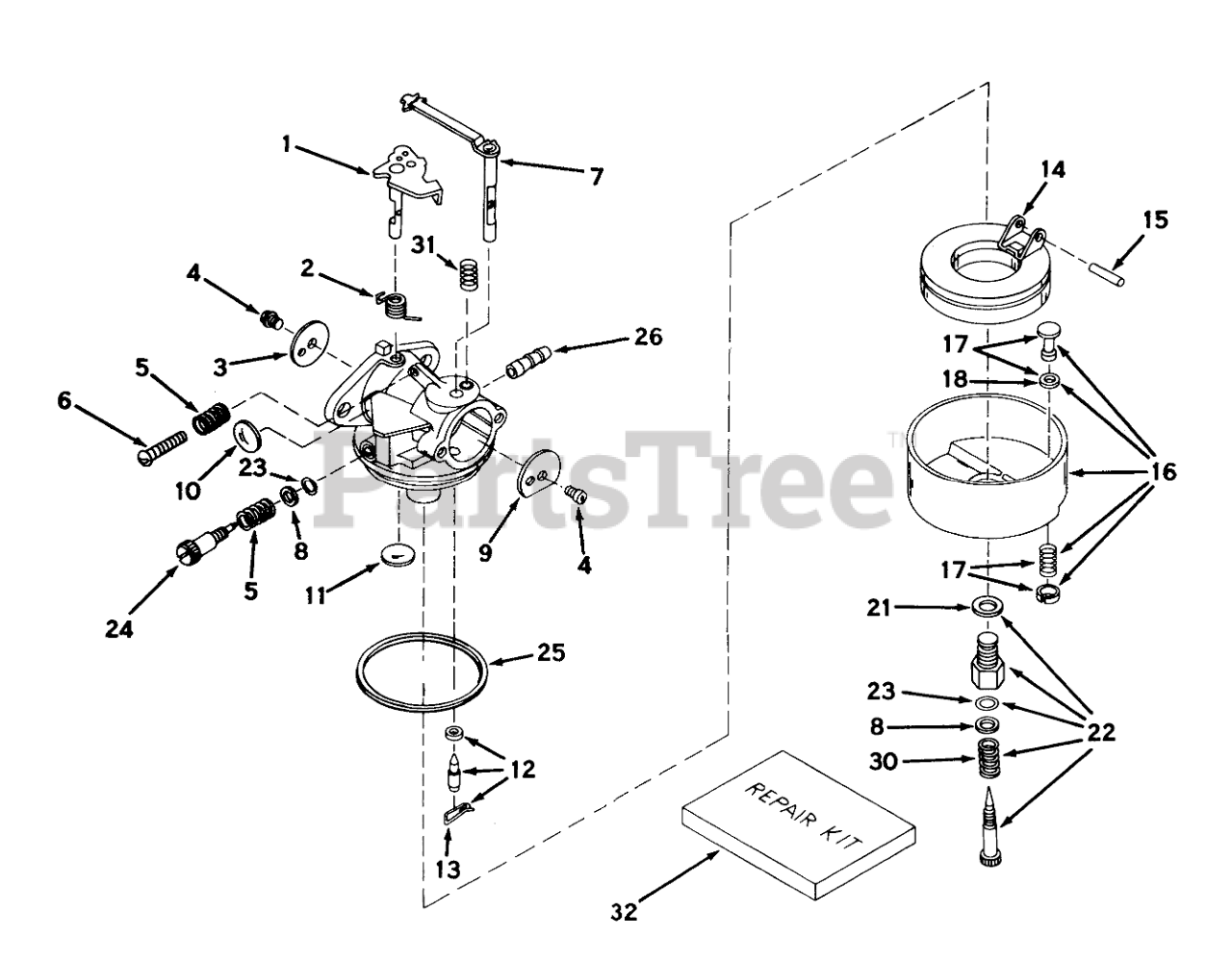

CARBURETOR NO. 631459 (7 H.P. SNOWTHROWER MODEL NO. 31677) Parts Diagram

  • Title

1

Tecumseh 31834

Shaft/Lever-Throttle

$9.49

$

Usually ships in 3-12 days

0

2

Tecumseh 630731

Spring, Return
(Superseded to 632016)

$1.99

$

In Stock, only 4 left!

0

3

Tecumseh 631036

Shutter-Throttle

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 16

0

5

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, only 2 left!

0

6

Tecumseh 650417

Screw-Throttle Crack Screw / Idle Speed
(Superseded to 651025)

$1.99

$

In Stock, Qty 5

0

7

Tecumseh 31841

Shaft & Lever Ass-y Choke
(Superseded to 31841A)

$9.49

$

Usually ships in 3-12 days

0

8

Tecumseh 630739

Washer

$1.99

$

In Stock, Qty 6

0

9

Tecumseh 31837

Shutter-Choke

$1.99

$

In Stock, only 1 left!

0

10

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Indicates items included in Repair Kit No. 31840.

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 631027

Plug-Welch, Atmospheric Vent

Note: Indicates items included in Repair Kit No. 31840.

$1.99

$

In Stock, Qty 5

0

12

Tecumseh 631021

Inlet Needle, Seat & Clip Assy. (Incl. No. 13)
(Superseded to 631021B)

Note: Indicates items included in Repair Kit No. 31840.

$6.99

$

In Stock, Qty 20+

0

13

Tecumseh 631022

Clip-Spring

$1.99

$

In Stock, only 4 left!

0

14

Tecumseh 631023

Float,Carburetor
(Superseded to 632019A)

$7.49

$

In Stock, Qty 10

0

15

Tecumseh 631024

Shaft-Float

Note: Indicates items included in Repair Kit No. 31840.

$1.99

$

In Stock, Qty 11

0

16

Tecumseh 631025

Bowl & Drain Assy., Float (Incl. No. 17)
(Superseded to 631951)

$17.99

$

In Stock, only 1 left!

0

17

Tecumseh 27136A

Plunger Assy., Drain (Incl. No. 18)

$7.49

$

In Stock, only 1 left!

0

18

Tecumseh 27554

Gasket-Plunger, Drain

Note: Indicates items included in Repair Kit No. 31840.

$1.49

$

In Stock, Qty 16

0

21

Tecumseh 27110

Washer-Bowl Nut
(Superseded to 27110A)

$2.49

$

Usually ships in 3-12 days

0

22

Tecumseh 31839

Adjustment Screw Assy., Main (Incl. Nos. 8, 21, 23 & 30)

Note: Indicates items included in Repair Kit No. 31840.

$15.99

$

In Stock, only 1 left!

0

23

Tecumseh 630740

"O"Ring

Note: Indicates items included in Repair Kit No. 31840.

$2.49

$

In Stock, only 2 left!

0

24

Tecumseh 631078

Screw, Idle Adj.
(Superseded to 631838)

Note: Indicates items included in Repair Kit No. 31840.

$3.99

$

In Stock, only 2 left!

0

25

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Indicates items included in Repair Kit No. 31840.

$2.49

$

In Stock, Qty 9

0

26

Tecumseh 631133

Fitting, Fuel Inlet
(Superseded to 631808)

$13.99

$

Usually ships in 3-12 days

0

30

Tecumseh 630738

Spring

$1.99

$

In Stock, Qty 8

0

31

Tecumseh 630735

Spring-Positioning, Choke

$1.99

$

In Stock, only 4 left!

0

32

Tecumseh 31840

Kit-Repair

$20.99

$

In Stock, only 2 left!

0
