31660 (526) - Toro 26" Snow Thrower (SN: 002000001 - 002999999) (1972) TRACTION ASSEMBLY Parts Diagram

26" Snow Thrower

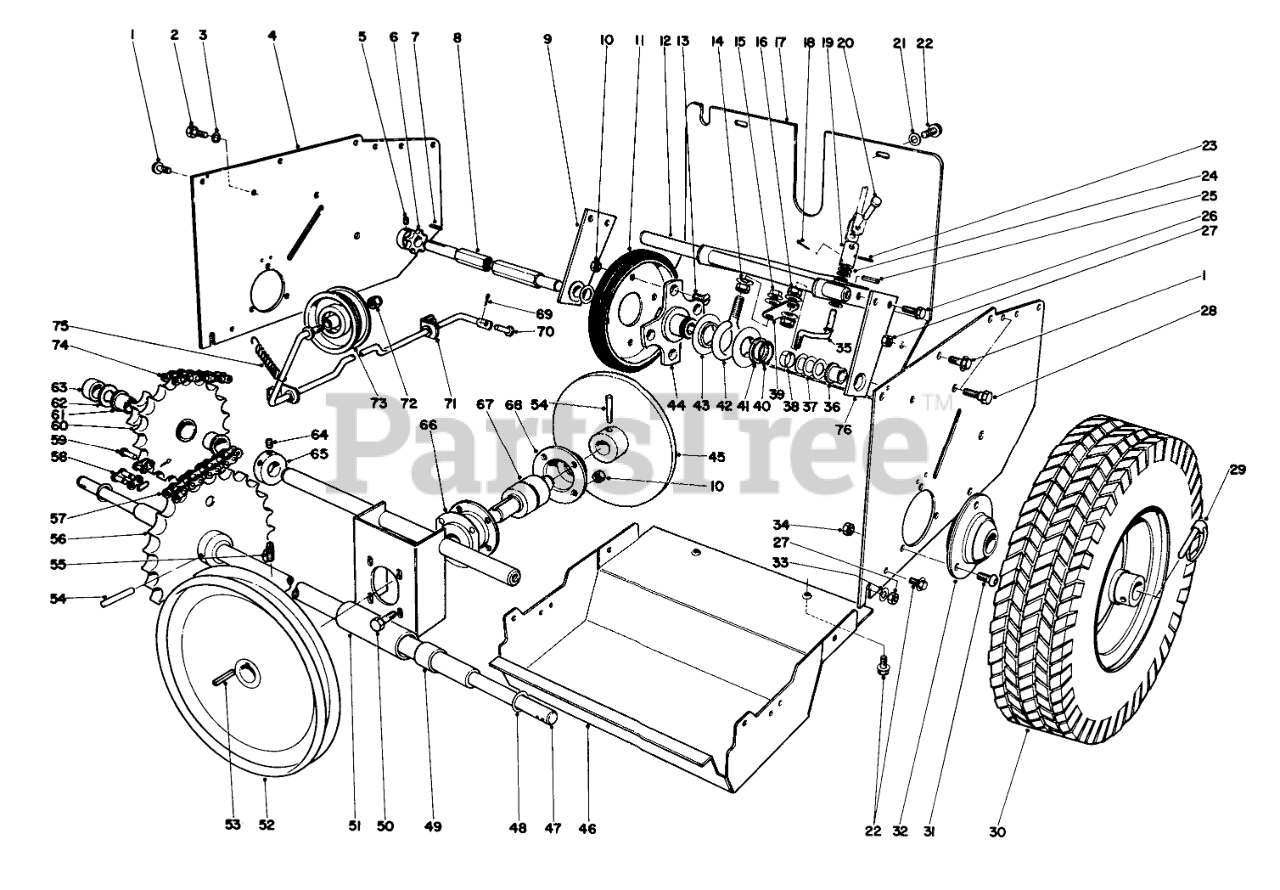

TRACTION ASSEMBLY Parts Diagram

  • Title

1

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

2

Toro 323-34

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

3

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

4

Toro 8-9260

Side Plate
(Superseded to 22-7990)

$

$

Not available

5

Toro 3245-34

Set Screw
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

6

Toro 5-9820

SPROCKET

$100.99

$

Usually ships in 3-6 days

0

7

Toro 3-6168

KEY

$12.99

$

In Stock, only 2 left!

0

8

Toro 11-8940

FRICTION WHEEL SHAFT

$

$

Not available

9

Toro 11-8040

Hex Shaft Mount (Incl. Ref. 36)

$107.99

$

Usually ships in 3-6 days

0

10

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

11

Toro 3-5461

Disc
(Superseded to 40-8170)

$85.99

$

In Stock, only 3 left!

0

12

Toro 11-8010

Bracket Dead Shaft

$

$

Not available

13

Toro 32108-94

5/16-18X5/8 FLT HD MS

$

$

Not available

14

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

15

Toro 32128-12

NUT-LOCK, FLANGE

$1.99

$

Usually ships in 3-6 days

0

16

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

17

Toro 8-7950

REAR COVER R

$135.99

$

Usually ships in 3-6 days

0

18

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

19

Toro 11-8070

U JOINT TUBE

$

$

Not available

20

Toro 283-31

CLEVIS PIN

$

$

Not available

21

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 32140-81

Screw, Self-tapping
(Superseded to 32144-10)

$4.99

$

In Stock, Qty 15

0

23

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

24

Toro 3-6712

Spacer

$

$

Not available

25

Toro 32121-11

PIN-ROLL

$0.99

$

In Stock, only 2 left!

0

26

Toro 32140-82

Hex Hd. Screw
(Superseded to 32144-11)

$7.99

$

In Stock, Qty 6

0

27

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

28

Toro 11-8140

SHOULDER SCREW

$

$

Not available

29

Toro 3290-243

PIN-LYNCH
(Superseded to 107-3039)

$10.99

$

In Stock, only 1 left!

0

30

Toro 8-8550

Wheel

$

$

Currently unavailable

31

Toro 3274-31

SCREW-HSBH

$1.49

$

In Stock, only 3 left!

0

32

Toro 8-9310

Bearing Flange

$

$

Not available

33

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

35

Toro 11-8090

CONNECTION ROD

$

$

Not available

36

Toro 256-219

BUSHING

$9.49

$

In Stock, only 1 left!

0

37

Toro 5-7570

WASHER-FLAT

$8.49

$

Usually ships in 3-6 days

0

38

Toro 11-3180

SPLIT SPACER

$

$

Not available

39

Toro 11-8060

SHIFT ROD PIVOT
(Superseded to 33113-020)

$0.99

$

In Stock, Qty 10

0

40

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 15

0

41

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, Qty 6

0

42

Toro 11-8050

SLIDER RING COLLAR
(Superseded to 78-1790)

$63.99

$

Usually ships in 3-6 days

0

43

Toro 11-8080

SLIDER RING

$

$

Not available

44

Toro 11-8440

Hub Traction Disc

$

$

Not available

45

Toro 11-7940

FRICTION PLT WA

$

$

Currently unavailable

46

Toro 11-7140

LOWER SHIELD R

$

$

Not available

47

Toro 8-8870

Axle Shaft

$

$

Not available

48

Toro 3-0737

WASHER

$9.49

$

In Stock, only 3 left!

0

49

Toro 256-204

Bushing

$

$

Currently unavailable

50

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

51

Toro 11-7970

Bulkhead (Incl. Ref. 49)

$

$

Currently unavailable

52

Toro 5-7410

Pulley

$

$

Not available

53

Toro 5-0946

KEY-SQUARE

$1.99

$

Usually ships in 3-6 days

0

54

Toro 3285-10

Groove Pin
(Superseded to 3285-11)

$2.49

$

In Stock, only 1 left!

0

55

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, Qty 11

0

56

Toro 8-8770

Sprocket

$

$

Not available

57

Toro 8-8810

Chain Lower

$

$

Not available

58

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

59

Toro 2710-10

1/4 OFFSET LINK

$

$

Not available

60

Toro 5-7070

Sprocket (Incl. Ref. 61)

$

$

Not available

61

Toro 256-215

3/4ID X 3/4LG BSHG

$

$

Not available

62

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0

63

Toro 8-8120

Spacer Idler
(Superseded to 23-7250)

$

$

Not available

64

Toro 3245-31

SCREW-HSH

$16.99

$

Usually ships in 3-6 days

0

65

Toro 8-8790

Collar

$

$

Currently unavailable

66

Toro 12-0620

Shim

$

$

Not available

67

Toro 8-8680

Friction Plate Shaft

$

$

Not available

68

Toro 10-0070

HOUSING BEARING

$

$

Not available

69

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

70

Toro 283-1

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

71

Toro 11-8860

Clutch Rod

$

$

Not available

72

Toro 32127-43

Nut

$

$

Currently unavailable

73

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

74

Toro 5-9430

1/4 X 42 CHAIN W/LINK

$157.99

$

Usually ships in 3-6 days

0

75

Toro 10-3890

EXTENSION SPRING

$27.99

$

Usually ships in 3-6 days

0

76

Toro 11-8030

Hex Shaft Mount (Incl. Ref. 36)
(Superseded to 26-6330)

$

$

Not available

Toro 10-3190

Tire Chain Kit
(Superseded to 62-7630)

Note: Not illustrated

$

$

Not available
