31655 (732) - Toro 32" Snow Thrower (SN: 000000001 - 000999999) (1970) WHEEL AND TIRE ASSEMBLY Parts Diagram

32" Snow Thrower

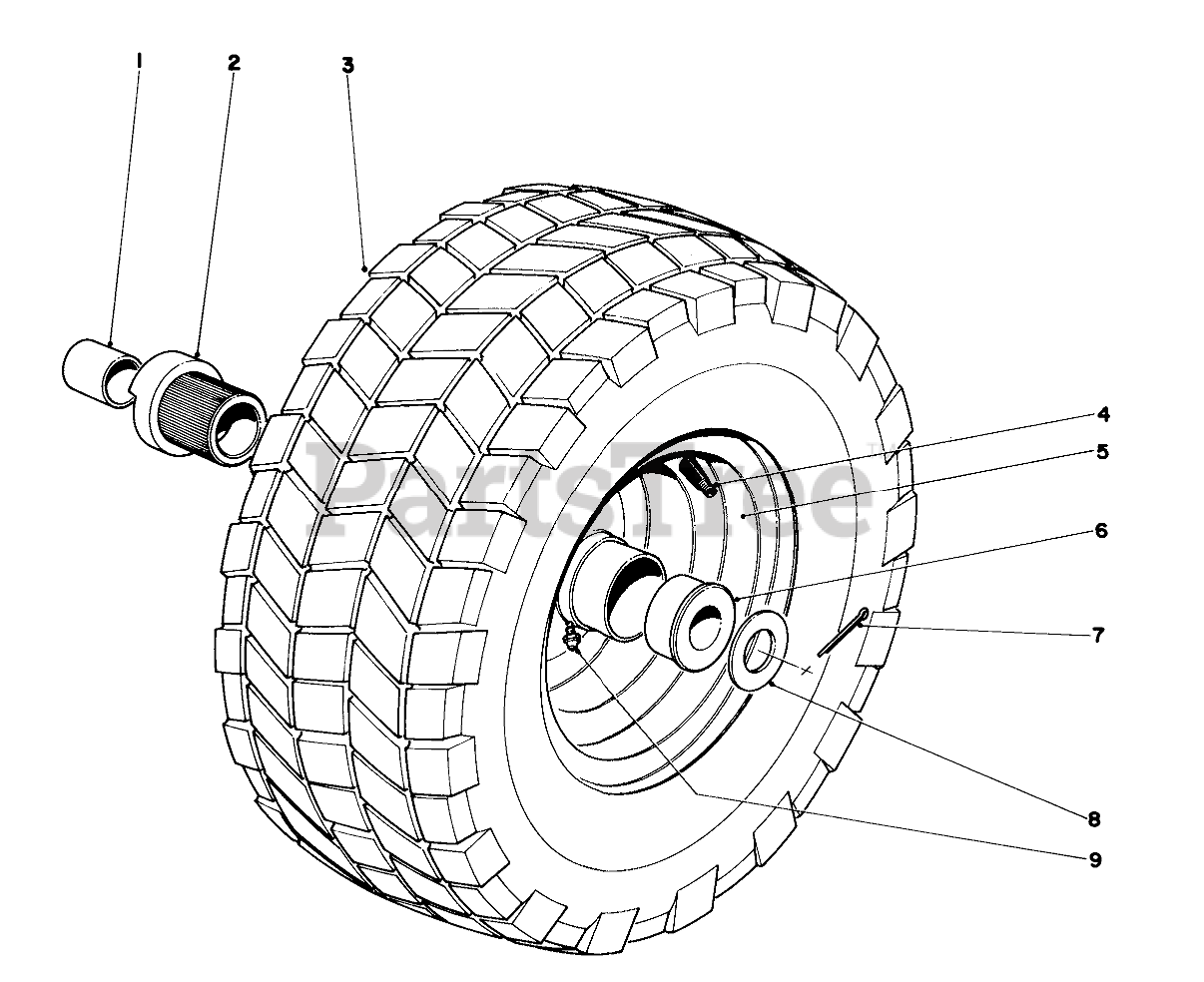

WHEEL AND TIRE ASSEMBLY Parts Diagram

  • Title
1

Toro 256-202

7/8 ID X 1 LG BUSHING

$

$

Currently unavailable

2

Toro 5-7690

Hub Jaw

$

$

Currently unavailable

3

Toro 231-49

Tire
(Superseded to 231-115)

$96.99

$

Usually ships in 3-6 days

0

4

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

5

Toro 241-106

Wheel Rim

$

$

Currently unavailable

6

Toro 256-175

Bushing

$

$

Not available

7

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

8

Toro 3-6514

THRUST WASHER

$2.49

$

Usually ships in 3-6 days

0

9

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

Toro 5-0149

Tire Chains (Optional)
(Superseded to 11-0410)

Note: Not illustrated

$

$

Not available
