3165 (14A-654-100) - Cub Cadet Garden Tractor Driveshaft And Engine Connections Parts Diagram

Garden Tractor

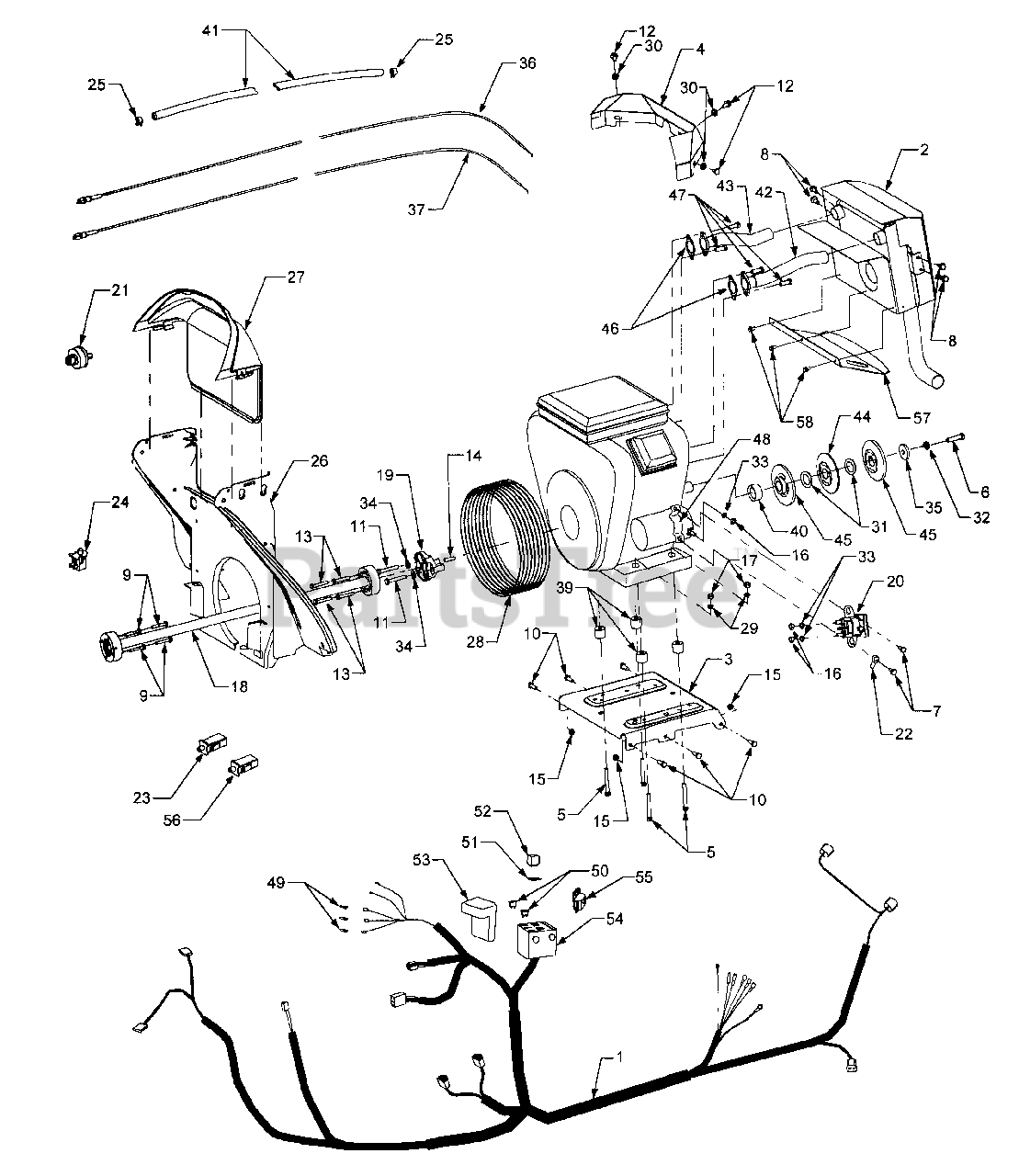

Driveshaft And Engine Connections Parts Diagram

  • Title

1

Cub Cadet 629-3047

Harness, Wire

$

$

Not available

1

Cub Cadet 725-0157

Cable Tie

Note: Not shown

$3.99

$

In Stock, Qty 20+

0

1

Cub Cadet 726-0154

Tie, Pushmount
(Superseded to 926-0154)

Note: Not shown

$6.49

$

Usually ships in 3-6 days

0

1

Cub Cadet 726-3055

Clip, Cable

Note: Not shown

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 651-3003

Muffler Assembly

$

$

Not available

3

Cub Cadet 703-2909-0498

Plate, Engine Mounting
(Superseded to 703-2909-0716)

$

$

Not available

4

Cub Cadet 703-2994

Shield, Muffler Heat

$

$

Not available

5

Cub Cadet 710-0378

Screw, Hex Cap, 5/16-18 x 2.5 GR5

$4.99

$

In Stock, only 4 left!

0

6

Cub Cadet 710-0459A

Screw, Hex Cap, 3/8-24 x 1.5 GR5

$6.99

$

In Stock, Qty 8

0

7

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0607

Screw, Hex Wash. Hd. Tapp 5/16-18 x .5

$6.99

$

In Stock, Qty 11

0

9

Cub Cadet 710-0778

Screw, Hex Wash. Hd. Tapp 1/4-20 x 1.5

$4.49

$

In Stock, only 1 left!

0

9

Cub Cadet 710-3288

Screw, Hex Cap Lock 1/4-20 x 1.62 GR5

Note: (Mfg. Date 1F078G & After)

$6.99

$

In Stock, Qty 12

0

10

Cub Cadet 710-3038

Screw, Hex Cap, 5/16-18 x .875 GR5

$4.99

$

In Stock, only 3 left!

0

11

Cub Cadet 710-3180

Screw, Hex Cap, 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 11

0

12

Cub Cadet 710-3209

Screw, Hex Cap, M6 - 1.0 x 10MM

$8.49

$

In Stock, Qty 13

0

13

Cub Cadet 710-3288

Screw, Hex Cap, Lock 1/4-20 x 1.62 GR5

$6.99

$

In Stock, Qty 12

0

14

Cub Cadet 711-3330

Pin, Locating

$

$

Not available

15

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3006

Nut, Hex, 1/4-20

$4.99

$

In Stock, Qty 19

0

17

Cub Cadet 712-3010

Nut, Hex, 5/16-18

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 718-3092

Shaft, Drive, 28.75 Long
(Superseded to 918-3092)

$

$

Not available

18

Cub Cadet 759-3764

Drive Barrel Kit

Note: Not shown (2 used per tractor)

$27.99

$

In Stock, Qty 20+

0

19

Cub Cadet 719-3096

Adapter, Drive Shaft
(Superseded to KH-24-029-12-S)

$33.99

$

In Stock, only 1 left!

0

20

Cub Cadet 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

21

Cub Cadet 725-1717

Switch, Ignition
(Superseded to 925-1717)

$52.99

$

In Stock, only 4 left!

0

22

Cub Cadet 725-3147

Quick Connect Lug

$

$

Not available

23

Cub Cadet 725-3164A

Switch, Plunger
(Superseded to 925-3164A)

$40.99

$

In Stock, Qty 20+

0

24

Cub Cadet 725-3167

Switch, Snap Mount
(Superseded to 925-3167)

$14.99

$

In Stock, only 2 left!

0

25

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 18

0

26

Cub Cadet 731-3221

Baffle, Lower Air
(Superseded to 731-3221A)

$98.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 731-3231

Baffle, Upper Air
(Superseded to 731-3231A)

$

$

Not available

28

Cub Cadet 731-3266

Boot, Intake

$

$

Not available

29

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0142

Washer, Flat, .281 x .50 x .06

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0163

Washer, Flat Shim (Hdn)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

34

Cub Cadet 736-3008

Washer, Flat, .344 x .75 x .12
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-3017

Washer, Flat, .417 x 1.5 x .225

$10.99

$

In Stock, only 4 left!

0

36

Cub Cadet 746-3075

Cable, Throttle Control

$

$

Not available

37

Cub Cadet 746-3076

Cable, Choke Control

$

$

Not available

39

Cub Cadet 750-3203

Spacer, Engine Mtg. 1.0 x .335 x .875

$

$

Not available

40

Cub Cadet 750-3239

Spacer, Crankshaft

$

$

Not available

41

Cub Cadet 751-0535-68

Hose, Fuel Line 68"
(Superseded to 751-10349-72)

$60.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 751-3156

Pipe, Exhaust RH

$

$

Not available

43

Cub Cadet 751-3157

Pipe, Exhaust LH

$

$

Not available

44

Cub Cadet 756-3101

Pulley, Center

$

$

Not available

45

Cub Cadet 756-3102

Pulley, Half

$

$

Not available

46

Cub Cadet BS-805024

Gasket, Exhaust
(Superseded to BS-691613)

$5.49

$

Usually ships in 2-12 days

0

47

Cub Cadet BS-805158

Screw, Exhaust Pipe
(Superseded to BS-691902)

$3.49

$

In Stock, only 4 left!

0

48

Cub Cadet BS-222934

Bracket, Solenoid Mtg.

$

$

Not available

48

Cub Cadet BS-393514

Clamp, Band

Note: Not shown

$

$

Currently unavailable

49

Cub Cadet 725-1365

Bulb, Indicator
(Superseded to 925-1365)

$10.99

$

In Stock, only 1 left!

0

50

Cub Cadet 725-3243

Fuse, 25 Amp

$5.49

$

Usually ships in 3-6 days

0

51

Cub Cadet 721-0342

Gasket, Silicone
(Superseded to 921-0342)

$7.99

$

In Stock, only 3 left!

0

52

Cub Cadet 725-1648

Relay
(Superseded to 925-1648A)

$47.99

$

In Stock, Qty 7

0

53

Cub Cadet 759-3868

Cover, Fuse Box
(Superseded to 959-3869)

$

$

Not available

54

Cub Cadet 759-3869

Box, Fuse
(Superseded to 959-3869)

$

$

Not available

55

Cub Cadet 725-3251

Sensor, Voltage
(Superseded to 925-3251)

$49.99

$

In Stock, only 1 left!

0

56

Cub Cadet 725-3164A

Switch, Plunger
(Superseded to 925-3164A)

$40.99

$

In Stock, Qty 20+

0

57

Cub Cadet 703-3398

Shield, Lower Exhaust

Note: (Mfg. Date 1H018G & After; Refer to Service Advisory CC-383)

$65.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 710-3007

Screw, Hex Wash. Hd. Tapp, #12-24 x .38

Note: (Mfg. Date 1H018G & After; Refer to Service Advisory CC-383)

$4.49

$

In Stock, Qty 20+

0
