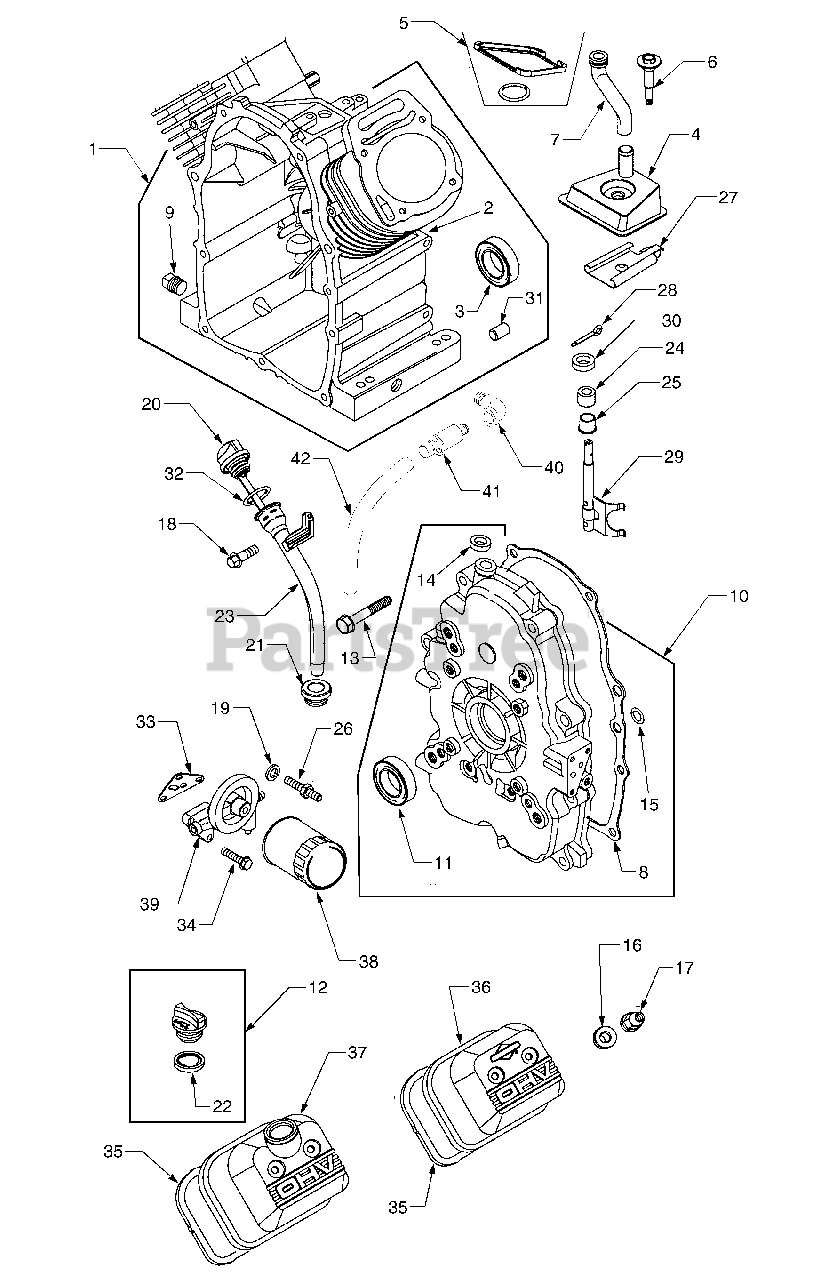

3165 (14A-654-100) - Cub Cadet Garden Tractor Cylinder Assembly Parts Diagram

Garden Tractor

Cylinder Assembly Parts Diagram

  • Title

Cub Cadet BS-303447-1279

Engine, Complete
(Superseded to BS-305447-3079)

$

$

Not available

Cub Cadet BS-494054

Short Block

$

$

Not available

1

Cub Cadet BS-808440

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-808534

Bearing, Cylinder

$20.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-805101

Seal, Oil
(Superseded to BS-805101S)

$13.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-807795

Breather Assembly
(Superseded to BS-808988)

$38.99

$

In Stock, Qty 7

0

5

Cub Cadet BS-807688

Gasket, Breather
(Superseded to BS-844986)

$8.49

$

In Stock, only 2 left!

0

6

Cub Cadet BS-805751

Screw, Hex
(Superseded to BS-690751)

$7.49

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-806083

Tube, Breather
(Superseded to BS-806083S)

$16.99

$

In Stock, Qty 20+

0

8

Cub Cadet BS-806190

Gasket, Crankcase Cover
(Superseded to BS-845254)

$45.99

$

In Stock, Qty 12

0

9

Cub Cadet BS-805048

Plug, Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 14

0

10

Cub Cadet BS-808502

Cover, Crankcase
(Superseded to BS-844588)

$247.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-805049

Seal, Oil
(Superseded to BS-805049S)

$12.99

$

In Stock, Qty 20+

0

12

Cub Cadet BS-491832

Plug, Oil Fill
(Superseded to BS-809500)

$10.99

$

In Stock, Qty 14

0

13

Cub Cadet BS-805696

Screw, Crankcase Cover Mtg.

$

$

Not available

14

Cub Cadet BS-805054

Seal, Governor Shaft
(Superseded to BS-842826)

$7.99

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-806191

Seal, O-Ring
(Superseded to BS-692154)

$5.99

$

In Stock, Qty 20+

0

16

Cub Cadet BS-805420

Washer
(Superseded to BS-691766)

$6.49

$

In Stock, Qty 20+

0

17

Cub Cadet BS-805019

Nut, Nylock
(Superseded to BS-692055)

$3.99

$

In Stock, Qty 9

0

18

Cub Cadet BS-805247

Screw, Hex

$

$

Not available

19

Cub Cadet BS-805449

Washer, Lock

$

$

Not available

20

Cub Cadet BS-807977

Cap and Dipstick - Oil Fill
(Superseded to BS-846409)

$33.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-281370

Seal, Fill Tube
(Superseded to BS-281370S)

$8.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-271983

Seal, Fill Plug
(Superseded to BS-809500)

$10.99

$

In Stock, Qty 14

0

23

Cub Cadet BS-807976

Tube, Oil Fill
(Superseded to BS-690907)

$41.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-805412

Bushing, Governor Shaft

$

$

Not available

25

Cub Cadet BS-805413

Bushing, Governor Shaft

$

$

Not available

26

Cub Cadet BS-805073

Stud, Oil Filter Adapter
(Superseded to BS-690682)

$4.49

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-805197

Baffle, Breather
(Superseded to BS-690686)

$14.99

$

In Stock, only 1 left!

0

28

Cub Cadet BS-806096

Pin, Cotter

$

$

Not available

29

Cub Cadet BS-807596

Crank, Governor
(Superseded to BS-690899)

$14.99

$

Usually ships in 2-12 days

0

30

Cub Cadet BS-805416

Washer, Governor Shaft
(Superseded to BS-690704)

$5.99

$

In Stock, only 1 left!

0

31

Cub Cadet BS-805103

Dowel Crankcase

$

$

Not available

32

Cub Cadet BS-805386

Seal, O-Ring
(Superseded to BS-690611)

$7.49

$

In Stock, only 1 left!

0

33

Cub Cadet BS-805250

Gasket, Filter Adapter
(Superseded to BS-692063)

$4.49

$

In Stock, only 4 left!

0

34

Cub Cadet BS-805030

Screw, Hex
(Superseded to BS-690679)

$3.49

$

Usually ships in 2-12 days

0

35

Cub Cadet BS-806039

Gasket, Rocker Cover
(Superseded to BS-806039S)

$7.49

$

In Stock, Qty 20+

0

36

Cub Cadet BS-807665

Cover, Rocker
(Superseded to BS-691558)

$20.99

$

In Stock, only 1 left!

0

37

Cub Cadet BS-805842

Cover, Rocker
(Superseded to BS-843749)

$39.99

$

Usually ships in 2-12 days

0

38

Cub Cadet BS-492932

Filter, Oil
(Superseded to BS-492932S)

$12.99

$

In Stock, Qty 20+

0

39

Cub Cadet BS-808033

Adapter, Filter

$112.99

$

Usually ships in 2-12 days

0

40

Cub Cadet 737-0125

Elbow, 90 Degree

$

$

Not available

41

Cub Cadet 751-3140

Drain, Oil
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

Cub Cadet 751-3142

Cap, Oil Drain

$4.49

$

In Stock, Qty 14

0

42

Cub Cadet 751-3141-12

Hose, Oil Drain
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

$

$

Not available
