3165 (14A-654-100) - Cub Cadet Garden Tractor Center Hydraulic Lift Linkage Parts Diagram

Garden Tractor

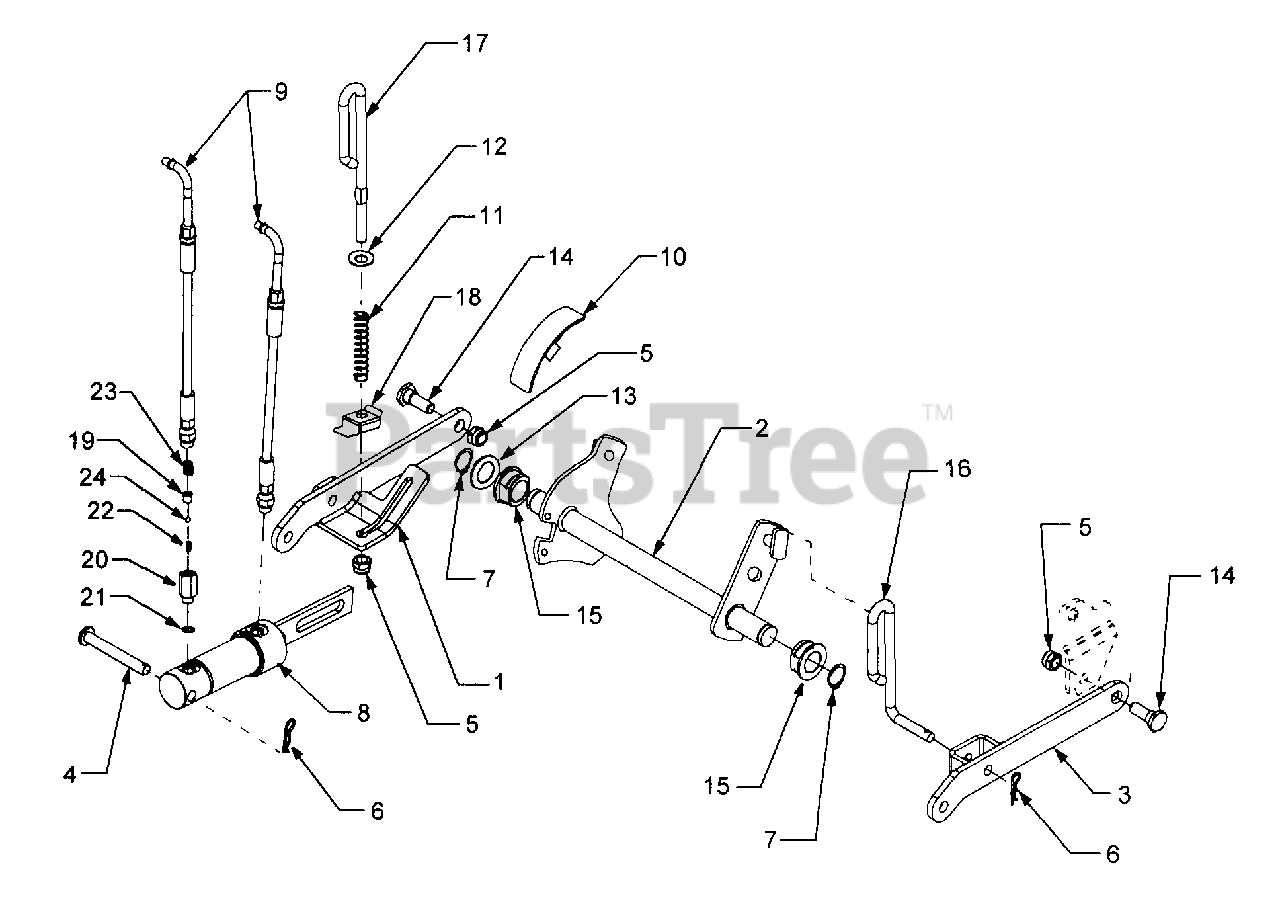

Center Hydraulic Lift Linkage Parts Diagram

  • Title

1

Cub Cadet 603-0434-0498

Link, LH Lift
(Superseded to 603-0434-0716)

$60.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0435

Shaft Assembly, Lift
(Superseded to 603-0435A)

$

$

Not available

3

Cub Cadet 603-0456-0498

Link, RH Lift
(Superseded to 603-0456-0716)

$

$

Not available

4

Cub Cadet 711-1206

Pin, Clevis, .5 x 3.75

$13.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-3083

Nut, Hex Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 714-0147

Pin, Internal Cotter

$4.99

$

In Stock, Qty 6

0

7

Cub Cadet 716-0102

Snap Ring, 1.0 Dia. Shaft

$5.49

$

In Stock, Qty 20+

0

8

Cub Cadet 717-3423

Cylinder, Center Lift

$

$

Not available

9

Cub Cadet 727-3135

Hose, Lift

$

$

Not available

10

Cub Cadet 731-3215

Indicator, Lift Position
(Superseded to 931-3215B)

$26.99

$

In Stock, only 2 left!

0

11

Cub Cadet 732-0870A

Spring, Compression

$

$

Not available

12

Cub Cadet 736-0160

Washer, Flat, .536 x .93 x .050

$4.49

$

In Stock, only 2 left!

0

13

Cub Cadet 736-0250

Washer. Flat, 1.0 x 1.7 x .10

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 738-0744A

Shoulder Screw

$11.99

$

In Stock, only 1 left!

0

15

Cub Cadet 741-0170

Bearing, Flange w/Flats
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 14

0

16

Cub Cadet 747-3330

Rod, RH Lift

$

$

Not available

17

Cub Cadet 747-3331A

Rod, LH Lift

$

$

Not available

18

Cub Cadet 703-3426

Stop Bracket, Lift Rod

Note: (Refer to Service Advisory CC-383)

$

$

Not available

19

Cub Cadet 711-1378

Body, Center Check Valve

Note: (Refer to Service Advisory CC-383)

$30.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 711-1379

Housing, Check Valve

Note: (Refer to Service Advisory CC-383)

$44.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 721-3001

O-Ring

Note: (Refer to Service Advisory CC-383)

$3.49

$

In Stock, Qty 6

0

22

Cub Cadet 732-0863

Spring, Compression
(Superseded to 932-0863)

Note: (Refer to Service Advisory CC-383)

$4.49

$

In Stock, only 2 left!

0

23

Cub Cadet 732-0979

Spring, Compression

Note: (Refer to Service Advisory CC-383)

$12.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 741-0862

Ball, Detent

Note: (Refer to Service Advisory CC-383)

$4.49

$

In Stock, Qty 20+

0
