31600 (732) - Toro 32" Snow Thrower (SN: 000000001 - 000999999) (1970) FRAME ASSEMBLY Parts Diagram

32" Snow Thrower

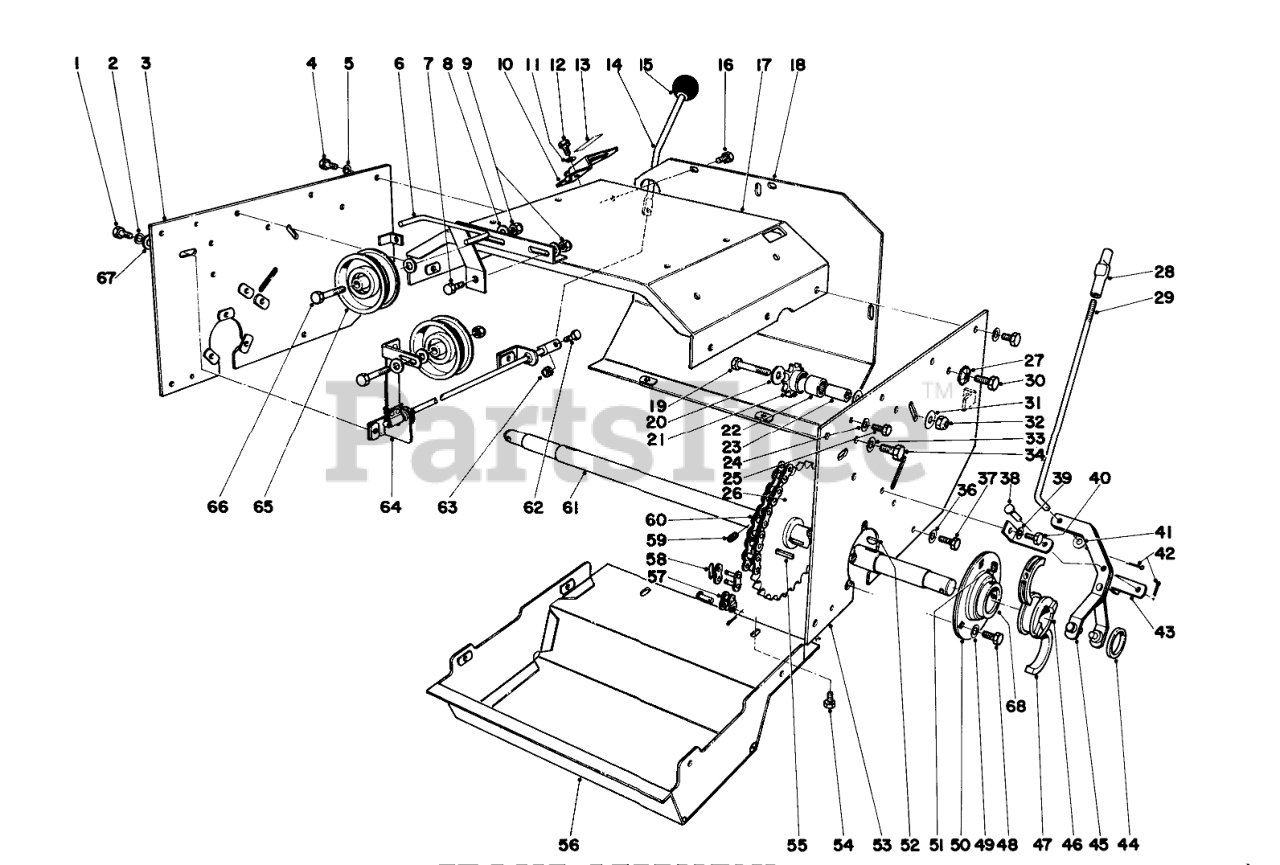

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

2

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

3

Toro 5-9470

Drive Side Plate

$

$

Currently unavailable

4

Toro 323-34

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

5

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

6

Toro 6-5600

Belt Guide

$

$

Currently unavailable

7

Toro 323-34

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 32127-43

Nut

$

$

Currently unavailable

10

Toro 5-9320

Selector Plate-Clutch

$

$

Currently unavailable

11

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

13

Toro 6-0500

Decal-Clutch Control

$

$

Currently unavailable

14

Toro 6-0140

Control-Belt Clutch

$

$

Currently unavailable

15

Toro 3-0631

BALL-GRIP

$

$

Currently unavailable

16

Toro 32140-70

1/4-20 X 1/2 SEMS MS

$

$

Not available

17

Toro 5-9270

Engine Base

$

$

Currently unavailable

18

Toro 5-9190

Rear Shield

$

$

Currently unavailable

19

Toro 322-8

SCREW-HH

$3.49

$

In Stock, Qty 6

0

20

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3-6379

SPROCKET & BRG ASM

$

$

Currently unavailable

22

Toro 252-62

Bearing

$

$

Not available

23

Toro 3-7386

SPINDLE

$

$

Currently unavailable

24

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

25

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

26

Toro 5-7740

Sprocket

$

$

Currently unavailable

27

Toro 3290-224

LOCKWASHER-PYRAMID

$36.99

$

Usually ships in 3-6 days

0

28

Toro 5-7960

Turnbuckle-Wheel Clutch

$

$

Currently unavailable

29

Toro 5-7930

Lower Rod-Wheel Clutch

$

$

Currently unavailable

30

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

31

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

33

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

34

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

36

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

37

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

38

Toro 283-3

PIN-CLEVIS

$0.99

$

In Stock, only 1 left!

0

39

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

40

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

41

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

42

Toro 3272-2

PIN-COTTER

$2.99

$

In Stock, only 2 left!

0

43

Toro 5-7950

Bracket-Fork Pivot

$

$

Currently unavailable

44

Toro 6-3160

Spacer

$

$

Currently unavailable

45

Toro 5-7970

Fork

$

$

Currently unavailable

46

Toro 5-7710

Sliding Jaw

$

$

Not available

47

Toro 5-7460

Dog

$

$

Currently unavailable

48

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

49

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

50

Toro 5-7580

Bearing Flange

$

$

Currently unavailable

51

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 4 left!

0

52

Toro 3257-8

KEY-WOODRUFF

$5.49

$

In Stock, Qty 6

0

53

Toro 5-9480

Drive Side Plate

$

$

Currently unavailable

54

Toro 32140-70

1/4-20 X 1/2 SEMS MS

$

$

Not available

55

Toro 5-0698

KEY

$2.99

$

In Stock, only 1 left!

0

56

Toro 5-9110

Lower Shield

$

$

Currently unavailable

57

Toro 2710-10

1/4 OFFSET LINK

$

$

Not available

58

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

59

Toro 3245-2

SCREW-SET, HSH

$3.49

$

Usually ships in 3-6 days

0

60

Toro 3-6701

Chain (Incl. Ref. #57 & 58)

$

$

Not available

61

Toro 5-7630

Axle Drive

$

$

Currently unavailable

62

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

63

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

64

Toro 6-5700

Belt Clutch

$

$

Currently unavailable

65

Toro 5-9870

Pulley Idler
(Superseded to 11-1560)

$

$

Not available

66

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

67

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

68

Toro 251-232

Collar

$

$

Currently unavailable
