31600 (732) - Toro 32" Snow Thrower (SN: 000000001 - 000999999) (1970) COUNTERSHAFT AND AXLE ASSEMBLY Parts Diagram

32" Snow Thrower

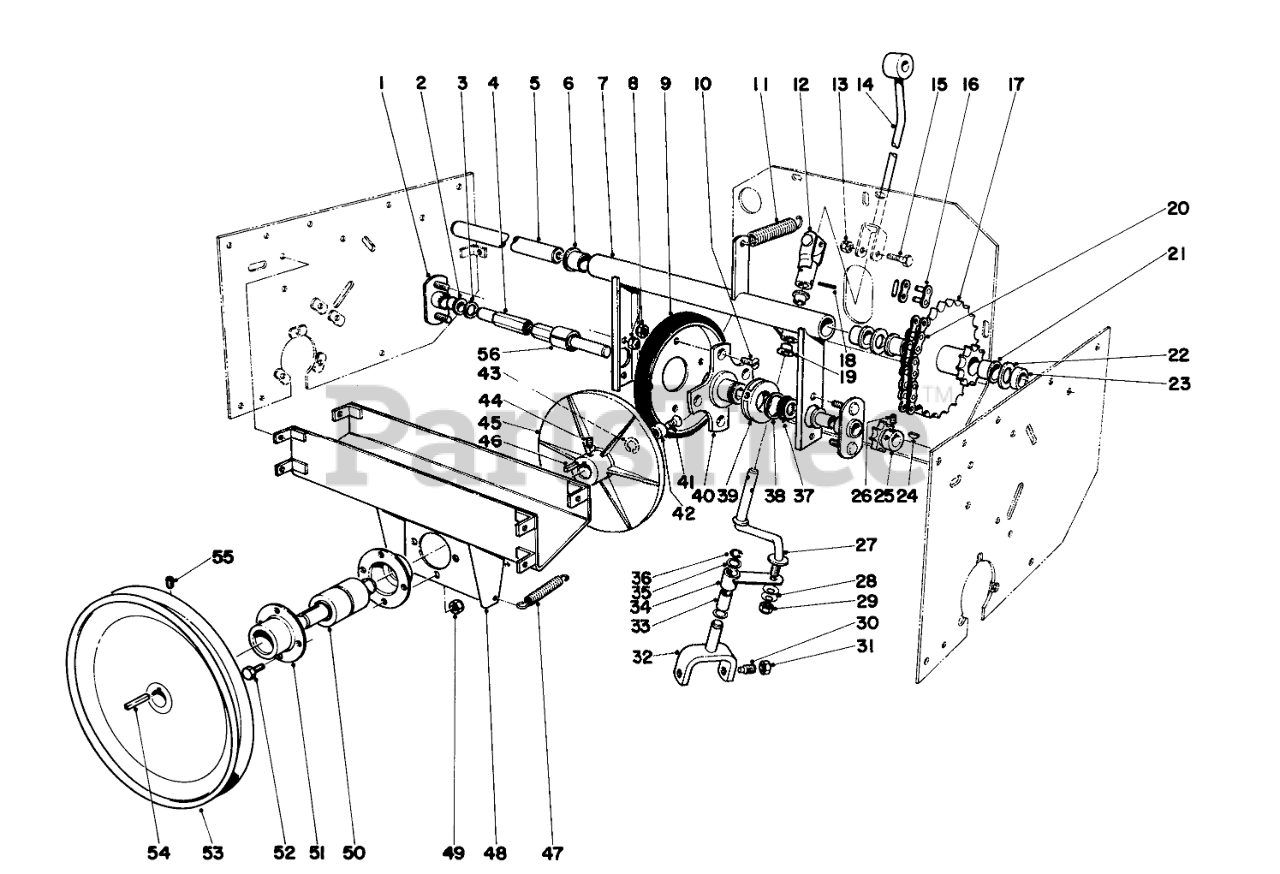

COUNTERSHAFT AND AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 5-7030

Adj. Plate (Incl. Ref. #2)

$

$

Currently unavailable

2

Toro 256-201

Bushing

$

$

Currently unavailable

3

Toro 5-7570

WASHER-FLAT

$8.49

$

Usually ships in 3-6 days

0

4

Toro 5-7340

Shaft Friction Wheel

$

$

Currently unavailable

5

Toro 5-7350

Pivot Shaft

$

$

Currently unavailable

6

Toro 256-104

3/4IDX1LG FLANGE BSHG

$

$

Currently unavailable

7

Toro 5-7000

Clutch Control (Incl. Ref. #6 & 19)

$

$

Currently unavailable

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 3-S461

Disc Assembly

$

$

Currently unavailable

10

Toro 32108-20

SCREW

$0.99

$

Usually ships in 3-6 days

0

11

Toro 6-0170

Spring (Friction Wheel)

$

$

Currently unavailable

12

Toro 5-9230

U Joint

$

$

Not available

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

14

Toro 6-0780

Trunion

$

$

Currently unavailable

15

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 4 left!

0

16

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

17

Toro 5-7070

Sprocket Hub (Incl. Ref. #21)

$

$

Not available

18

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

19

Toro 256-116

BUSHING-FLANGE

$4.49

$

In Stock, Qty 9

0

20

Toro 5-9430

Chain (Incl. Ref. #16)

$157.99

$

Usually ships in 3-6 days

0

21

Toro 6-6870

Bushing

$

$

Currently unavailable

22

Toro 3-6514

THRUST WASHER

$2.49

$

Usually ships in 3-6 days

0

23

Toro 5-7050

Spacer Pivot Shaft

$

$

Currently unavailable

24

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

25

Toro 5-9820

SPROCKET

$100.99

$

Usually ships in 3-6 days

0

26

Toro 3245-2

SCREW-SET, HSH

$3.49

$

Usually ships in 3-6 days

0

27

Toro 5-9000

Connecting Rod

$

$

Currently unavailable

28

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

29

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

30

Toro 3287-16

Set Screw

$

$

Not available

31

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

32

Toro 5-6860

Fork

$

$

Currently unavailable

33

Toro 256-198

Bushing

$

$

Currently unavailable

34

Toro 5-6890

Shift Rod (Incl. Ref. #33)

$

$

Currently unavailable

35

Toro 5-7670

Thrust Washer

$

$

Currently unavailable

36

Toro 32120-18

E-RING

$1.49

$

In Stock, only 3 left!

0

37

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 15

0

38

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

39

Toro 5-7300

Ring Slider

$

$

Currently unavailable

40

Toro 5-6900

Hub Traction

$

$

Not available

41

Toro 32108-21

5/16-18X7/8 FLT HD MS

$

$

Currently unavailable

42

Toro 5-7320

Spacer-Friction Wheel

$

$

Currently unavailable

43

Toro 32151-28

Snap Ring

$

$

Currently unavailable

44

Toro 3245-2

SCREW-SET, HSH

$3.49

$

Usually ships in 3-6 days

0

45

Toro 5-7390

Plate Friction

$

$

Currently unavailable

46

Toro 5-7310

Key Square

$

$

Not available

47

Toro 5-0696

Spring

$

$

Not available

48

Toro 5-9150

Bulkhead

$

$

Currently unavailable

49

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

50

Toro 5-7380

Shaft-Friction Plate

$

$

Currently unavailable

51

Toro 3-8178

Bearing Housing

$

$

Not available

52

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

53

Toro 5-7410

Pulley

$

$

Not available

54

Toro 5-0946

KEY-SQUARE

$1.99

$

Usually ships in 3-6 days

0

55

Toro 3246-3

SCREW-HSH

$13.99

$

Usually ships in 3-6 days

0

56

Toro 8-1680

Spacer

$

$

Not available
