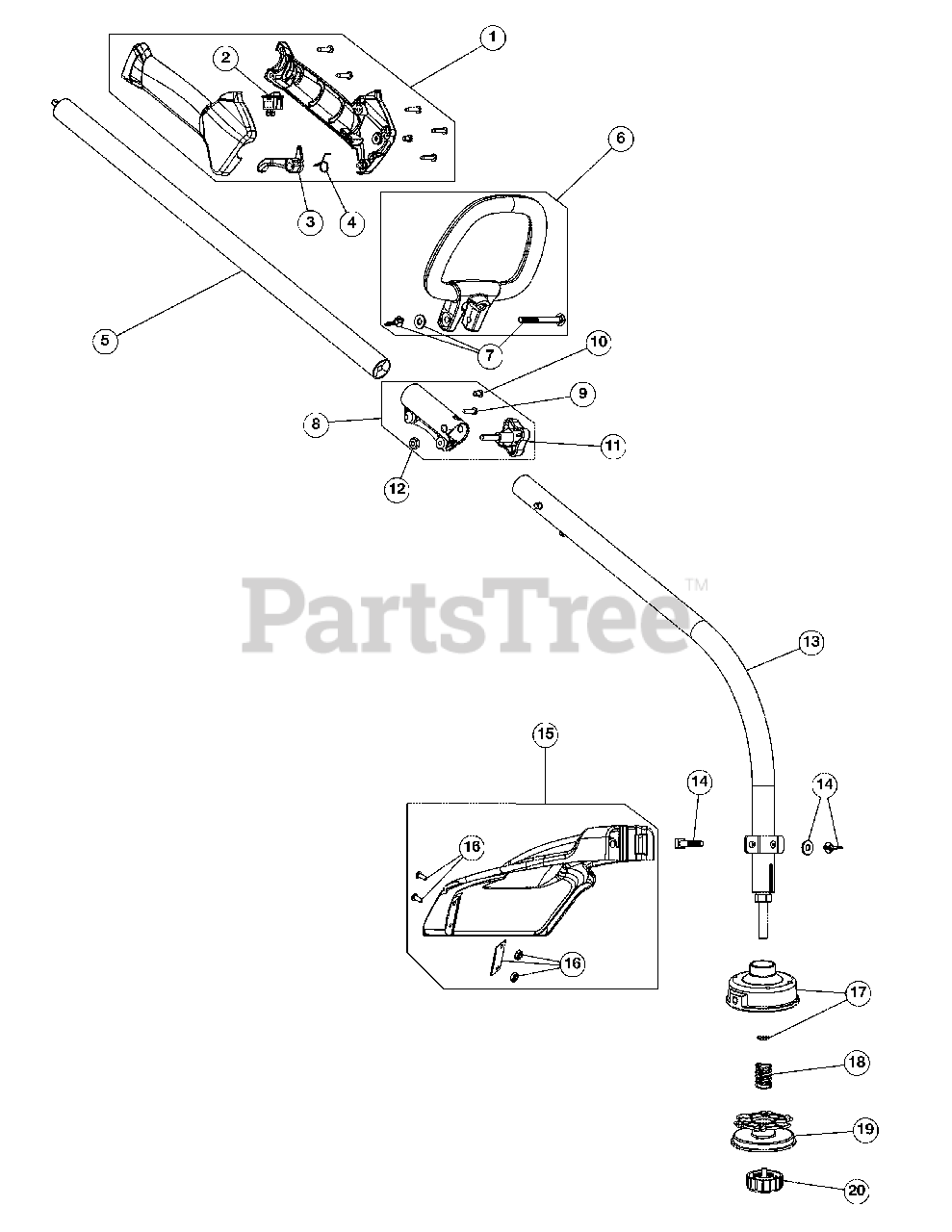

316.990110 (41ADY20C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-06790

Throttle Housing Assembly (Incl. 2-4)

$12.99

$

In Stock, Qty 6

0

2

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

3

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

4

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

5

MTD 753-04344

Upper Shaft Housing Assembly

$85.99

$

In Stock, only 3 left!

0

6

MTD 753-05461

D-Handle (Incl. 7)

$22.99

$

Usually ships in 3-6 days

0

7

MTD 791-181587

D-Handle Hardware Assembly

$19.99

$

In Stock, only 1 left!

0

8

MTD 753-1190

Split Boom Coupler (Incl. 9-12)

$23.99

$

In Stock, only 1 left!

0

9

MTD 791-182057

Anti-Rotation Screw

$4.49

$

In Stock, only 3 left!

0

10

MTD 791-181617

Screw

$5.49

$

In Stock, Qty 11

0

11

MTD 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$

$

Not available

12

MTD 712-04018A

Knob Retainer Nut

$4.49

$

In Stock, Qty 5

0

13

MTD 753-04508

Lower Shaft Housing Assembly

$80.99

$

In Stock, Qty 6

0

14

MTD 753-04282

Shield Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

15

MTD 753-04283

Shield Assembly (Incl. 16)

$50.99

$

In Stock, only 1 left!

0

16

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

17

MTD 753-04284

Outer Spool and Retainer

$28.99

$

In Stock, only 2 left!

0

18

MTD 791-610317B

Spring

$10.99

$

In Stock, only 2 left!

0

19

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

20

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 18

0

MTD 753-06707

Reel and Line Assembly
(Superseded to 953-1156)

Note: Not shown

$31.99

$

In Stock, only 1 left!

0
