316.795861 (41CD396C799) - Craftsman String Trimmer (Sears) Brushcutter Assembly Parts Diagram

String Trimmer

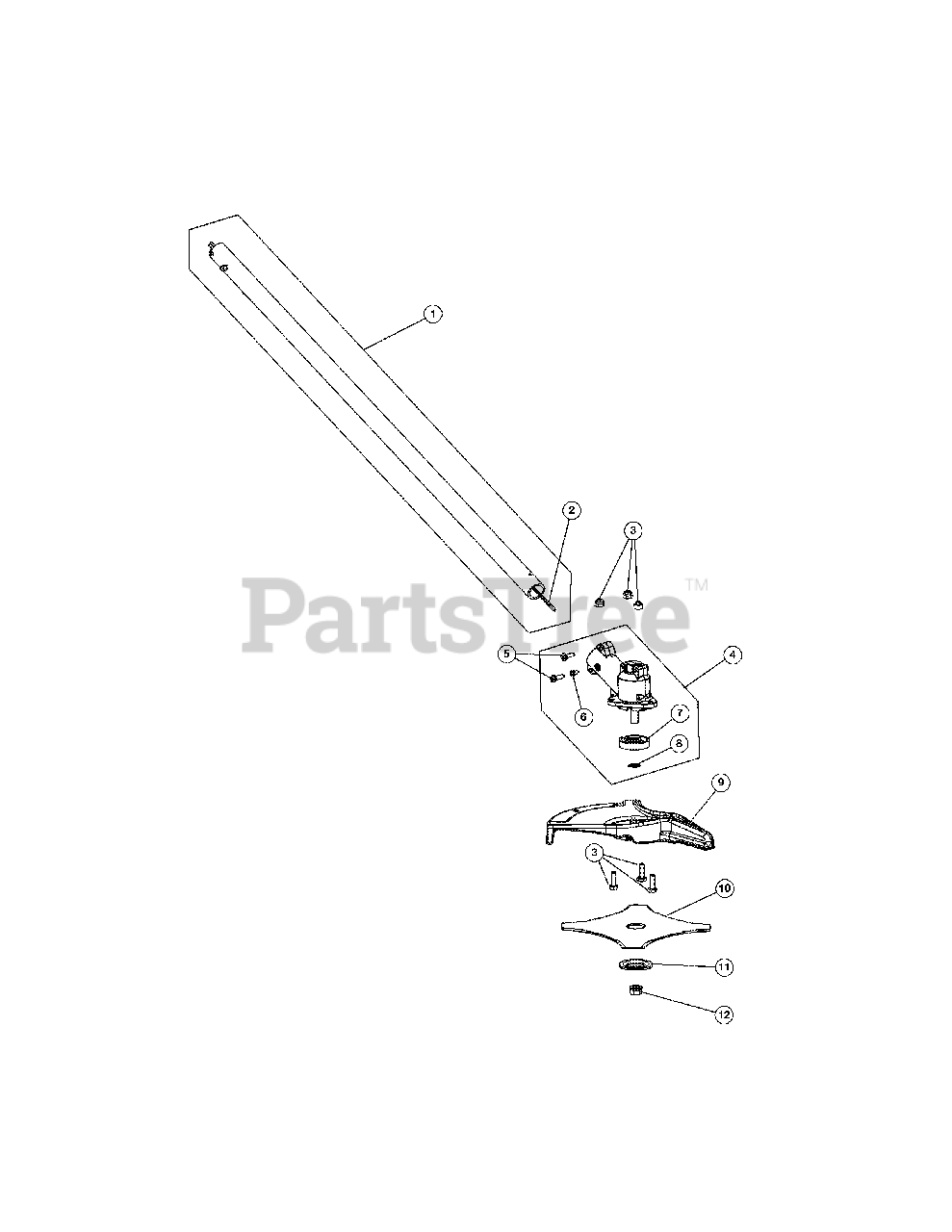

Brushcutter Assembly Parts Diagram

  • Title

1

MTD 791-160226

Lower Drive Shaft Housing Assembly (Incl Ref No. 2)

$70.99

$

In Stock, only 2 left!

0

2

MTD 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

3

MTD 791-182200

Shield Mount Screw Assembly

$6.99

$

In Stock, only 2 left!

0

4

MTD 791-182193

2-Piece Gear Box Assembly (Incl Ref No. 5-8)

$99.99

$

In Stock, only 2 left!

0

5

MTD 791-182195

Gear Box Mounting Hardware

$7.49

$

In Stock, only 1 left!

0

6

MTD 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

7

MTD 791-182196

Blade Driver

$22.99

$

In Stock, only 1 left!

0

8

MTD 753-04348

Palnut

$6.99

$

In Stock, only 2 left!

0

9

MTD 791-147492

Blade Shield/Shield Mount

$126.99

$

Usually ships in 3-6 days

0

10

MTD 791-145873B

4-Tooth Blade

$42.99

$

In Stock, only 3 left!

0

11

MTD 791-147490

Retaining Washer

$11.99

$

In Stock, only 4 left!

0

12

MTD 712-04105

Nut

$10.99

$

Usually ships in 3-6 days

0

MTD 791-180014B

Blade Retaining Kit (Incl Ref No. 11 & 12)

Note: Not shown

$12.99

$

In Stock, only 1 left!

0

MTD 791-613226

Locking Rod Tool

Note: Not shown

$14.99

$

In Stock, only 1 left!

0

MTD 791-682075B

Shoulder Harness

Note: Not shown

$38.99

$

Usually ships in 3-6 days

0

MTD 791-612605

Hanger
(Superseded to 731-08926)

Note: Not shown

$2.99

$

In Stock, only 3 left!

0
