316.795861 (41BD396C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

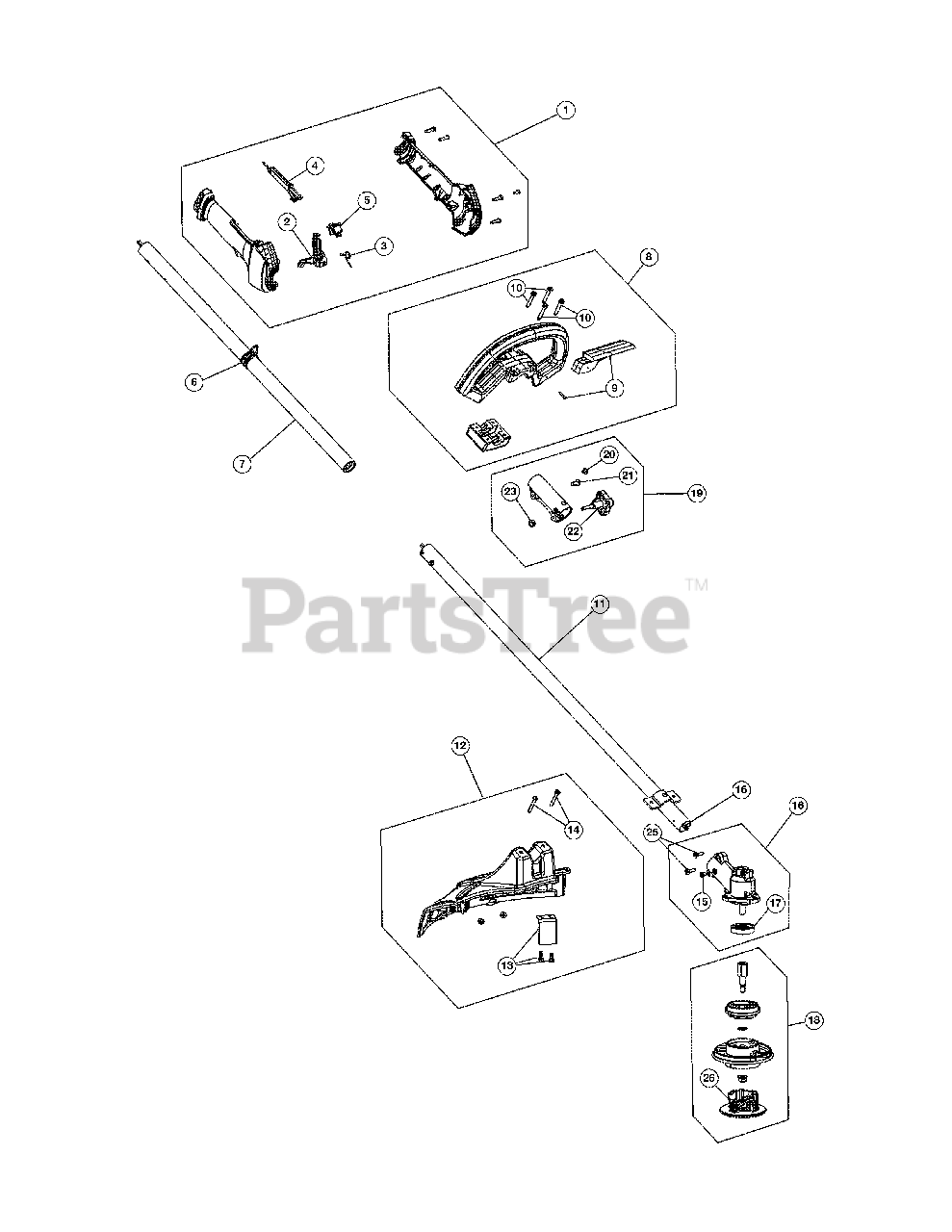

General Assembly Parts Diagram

  • Title
1

MTD 753-05192

Throttle Housing Assembly (Incl. Ref No. 2-5)

$36.99

$

Usually ships in 3-6 days

0

2

MTD 731-04970A-2

Throttle Trigger
(Superseded to 731-04970B-10)

$9.49

$

In Stock, Qty 20+

0

3

MTD 753-05007

Spring

$5.49

$

In Stock, only 2 left!

0

4

MTD 731-04971-2

Throttle Lock-out
(Superseded to 731-04971C-10)

$5.49

$

In Stock, only 1 left!

0

5

$10.99

$

In Stock, Qty 12

0

6

MTD 791-610327

Shoulder Strap Clip

$32.99

$

Usually ships in 3-6 days

0

7

MTD 753-04236

Upper Drive Shaft Housing Assembly

$94.99

$

In Stock, Qty 5

0

8

MTD 753-05008

Handle Assembly (Incl. Ref No. 9 & 10)

$31.99

$

In Stock, only 2 left!

0

9

MTD 753-05295

Barrier Bar Assembly

$36.99

$

Usually ships in 3-6 days

0

10

$4.99

$

Usually ships in 3-6 days

0

11

MTD 753-06139

Lower Drive Shaft Housing Assembly

$20.99

$

In Stock, Qty 20+

0

12

MTD 753-06292

Shield Assembly (Incl. Ref No. 13 & 14)

$14.99

$

Usually ships in 3-6 days

0

13

MTD 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 5

0

14

$6.99

$

In Stock, only 4 left!

0

15

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 4 left!

0

16

MTD 791-182193

Gear Box (Incl. Ref No. 15, 17 & 25)

$99.99

$

In Stock, only 2 left!

0

17

MTD 791-182196

Gear Box Spacer

$22.99

$

In Stock, only 2 left!

0

18

MTD 753-05489

Cutting Head Assembly (Incl. Ref No. 26)
(Superseded to 753-05045)

$75.99

$

Usually ships in 3-6 days

0

19

MTD 753-1190

Split Boom Coupler (Incl. Ref No. 20-23)

$23.99

$

In Stock, only 1 left!

0

20

$4.49

$

In Stock, Qty 6

0

21

$5.49

$

In Stock, Qty 11

0

22

MTD 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$

$

Not available

23

MTD 712-04018A

Knob Retaining Nut

$4.49

$

In Stock, Qty 5

0

24

MTD 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

25

MTD 791-182195

Gear Box Screw

$7.49

$

In Stock, Qty 20+

0

26

MTD 731-05193

Cutting Head Cap

$

$

Not available

MTD 697-00368

Tube of Line

Note: Not shown

$

$

Not available
