316.794980 (41AS360G799) - Craftsman Blower (Sears) Housing Assembly Parts Diagram

Blower

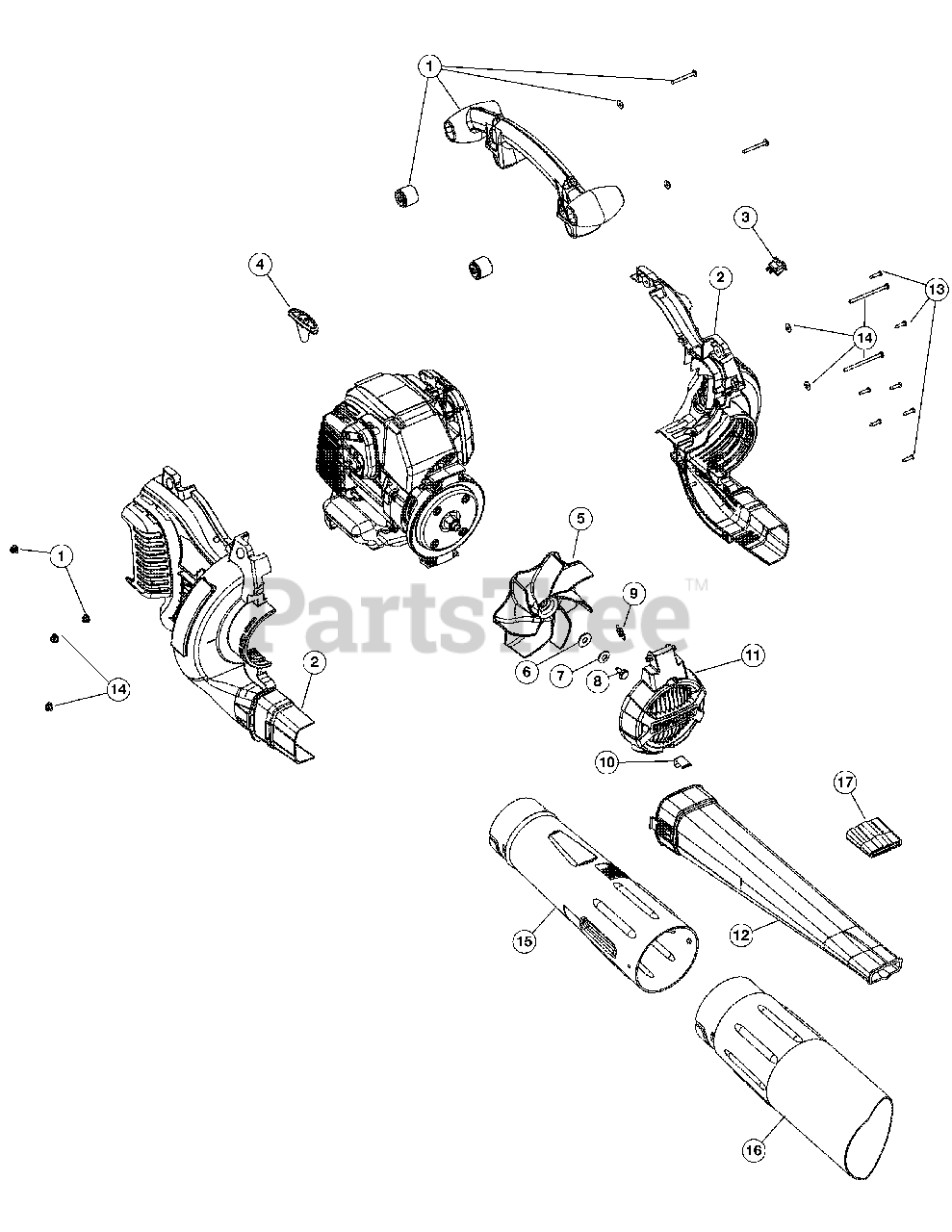

Housing Assembly Parts Diagram

  • Title

1

MTD 753-05372

Handle Assembly

$

$

Not available

2

MTD 753-05373

Housing Assembly

$

$

Not available

3

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

4

MTD 753-05011

Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

5

MTD 753-04596

Impeller
(Superseded to 731-04275)

$35.99

$

In Stock, only 4 left!

0

6

MTD 753-04833

Washer
(Superseded to 736-04107)

$4.49

$

In Stock, only 1 left!

0

7

MTD 753-04834

Washer
(Superseded to 736-04110A)

$5.49

$

In Stock, only 1 left!

0

8

MTD 791-182414

Bolt

$4.99

$

Usually ships in 3-6 days

0

9

MTD 753-04456

Spring

$

$

Not available

10

MTD 753-04455

Clip
(Superseded to 732-04092A)

$9.99

$

Usually ships in 3-6 days

0

11

MTD 753-05380

Vacuum Door

$

$

Not available

12

MTD 753-05016

Blower Tube

$

$

Not available

13

MTD 791-181345

Screw

$4.49

$

In Stock, Qty 20+

0

14

MTD 753-05374

Impeller Housing Hardware

$

$

Not available

15

MTD 753-05017

Upper Vacuum Tube
(Superseded to 791-180466)

$

$

Not available

16

MTD 791-180467

Lower Vacuum Tube

$38.99

$

In Stock, only 4 left!

0

17

MTD 753-05379

Concentrator Nozzle

$

$

Not available

MTD 791-682075B

Shoulder Strap

Note: Not Shown

$38.99

$

Usually ships in 3-6 days

0

MTD 753-05378

Vacuum Bag Assembly
(Superseded to 753-04458)

Note: Not Shown, (includes Bag, Adapter & Cable Tie)

$50.99

$

Usually ships in 3-6 days

0
