316.794830 (41AS4SCG799) - Craftsman Blower (Sears) Engine Assembly Parts Diagram

Blower

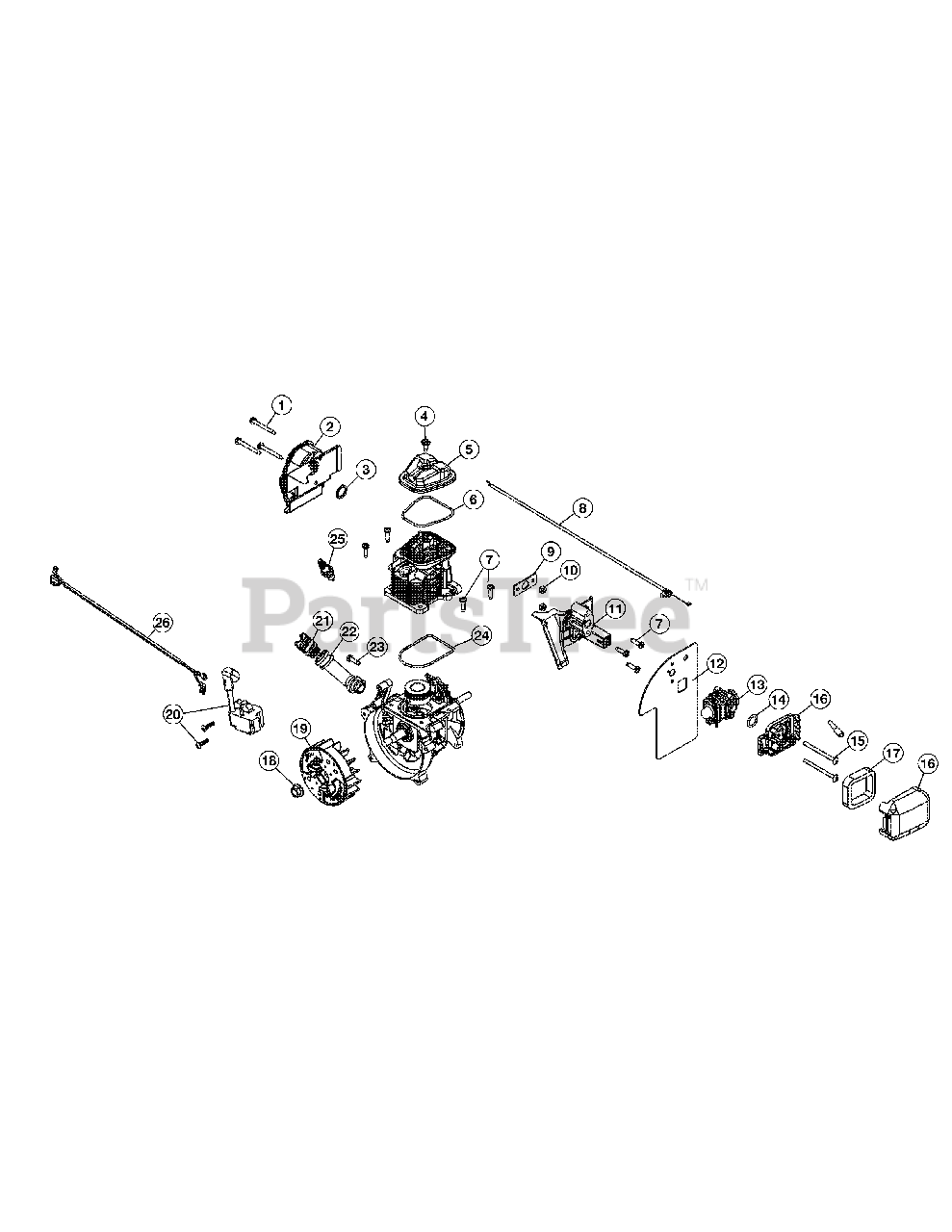

Engine Assembly Parts Diagram

  • Title
1

MTD 710-04487

Muffler Screws
(Superseded to 710-04809)

$3.49

$

In Stock, Qty 5

0

2

MTD 753-05900

Muffler Assembly

Note: (Incl. Ref No. 1 & 3)

$27.99

$

Usually ships in 3-6 days

0

3

MTD 753-05244

Muffler Gasket

$5.99

$

In Stock, Qty 8

0

4

$2.99

$

Usually ships in 3-6 days

0

5

MTD 753-05901

Rocker Cover

$8.49

$

Usually ships in 3-6 days

0

6

MTD 753-05902

O-Ring

$5.49

$

In Stock, Qty 11

0

7

MTD 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

8

MTD 753-05903

Throttle Cable

$16.99

$

Usually ships in 3-6 days

0

9

MTD 753-05673

Insulator Gasket

$10.99

$

Usually ships in 3-6 days

0

10

$6.99

$

Usually ships in 3-6 days

0

11

MTD 753-05904

Insulator

$8.49

$

Usually ships in 3-6 days

0

12

MTD 753-05905

Carburetor Gasket

$10.99

$

In Stock, Qty 6

0

13

MTD 753-05908

Carburetor

$

$

Not available

14

MTD 791-181751

Carburetor O-Ring

$4.49

$

In Stock, Qty 19

0

15

$5.49

$

In Stock, Qty 20+

0

16

MTD 753-04223

Air Cleaner Assembly

Note: (Incl. Ref No. 17)

$30.99

$

Usually ships in 3-6 days

0

17

MTD 791-181757

Air Filter

$3.99

$

In Stock, Qty 20+

0

18

$6.99

$

Usually ships in 3-6 days

0

19

MTD 753-05906

Flywheel Assembly

$

$

Not available

20

MTD 753-05907

Module

$52.99

$

In Stock, only 1 left!

0

21

MTD 753-05400

Oil Plug
(Superseded to 753-05408)

$29.99

$

In Stock, only 1 left!

0

22

MTD 753-05909

Oil Fill Tube

$9.99

$

Usually ships in 3-6 days

0

23

$4.49

$

In Stock, Qty 20+

0

24

MTD 753-05910

O-Ring

$3.49

$

In Stock, only 1 left!

0

25

MTD 794-00042

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, Qty 6

0

26

MTD 753-05911

Lead Wire

$5.99

$

Usually ships in 3-6 days

0

MTD 753-05912

Shortblock Assembly

Note: Not shown (Incl. Ref No. 4-7 & 21-25)

$218.99

$

Usually ships in 3-6 days

0

MTD 753-05966

Valve

Note: Not shown

$4.99

$

Usually ships in 3-6 days

0
