316.794802 (41CR4BPG799) - Craftsman Blower (Sears) General Assembly Parts Diagram

Blower

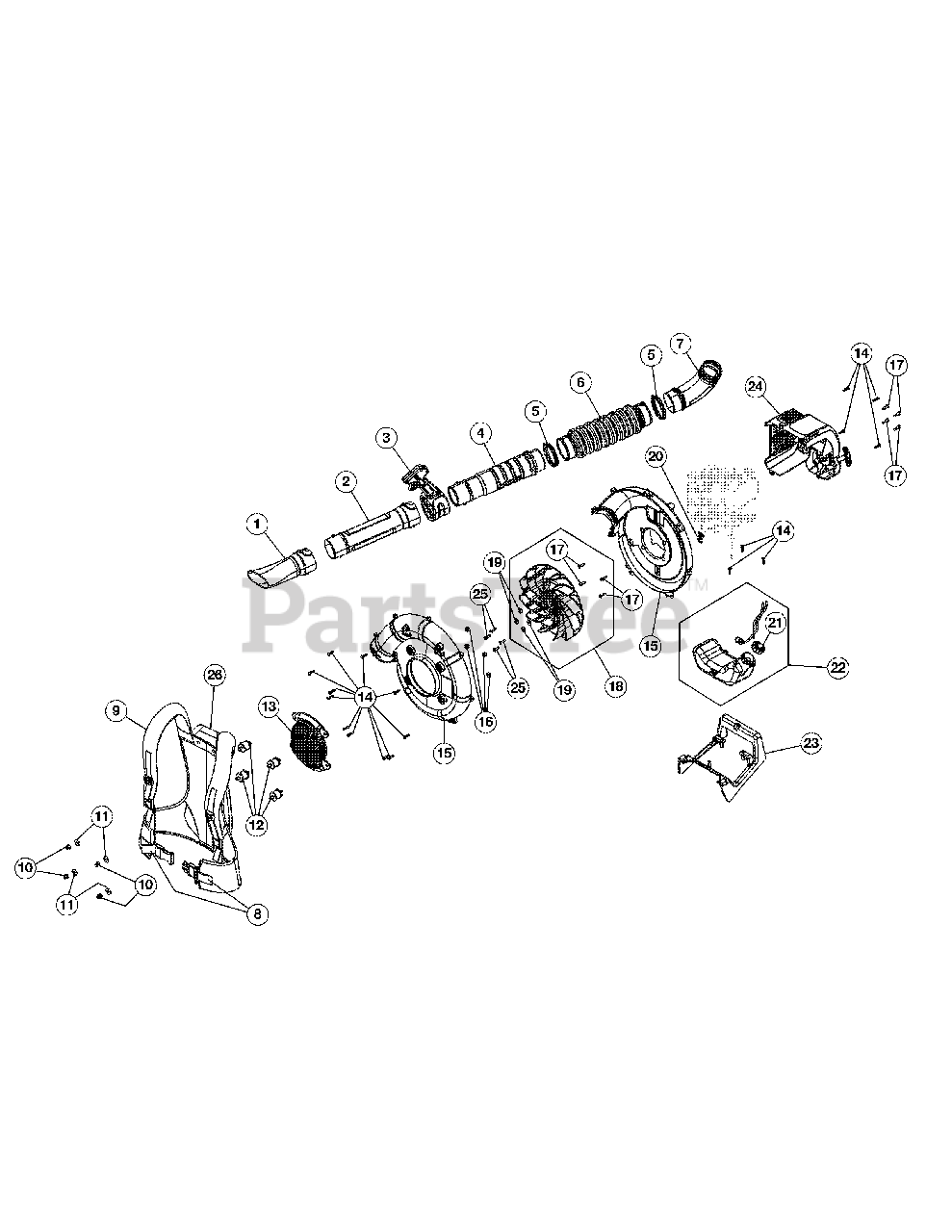

General Assembly Parts Diagram

  • Title

1

MTD 753-06001

Nozzle

$11.99

$

Usually ships in 3-6 days

0

2

MTD 753-05971

Lower Blower Tube

$15.99

$

In Stock, only 1 left!

0

3

MTD 753-05975

Throttle Grip Assembly

$53.99

$

Usually ships in 3-6 days

0

4

MTD 753-05991

Upper Blower Tube

$20.99

$

Usually ships in 3-6 days

0

5

MTD 726-04080

Clamp

$11.99

$

In Stock, Qty 11

0

6

MTD 753-05641

Flex Tube

$31.99

$

Usually ships in 3-6 days

0

7

MTD 753-05990

Elbow Tube

$18.99

$

Usually ships in 3-6 days

0

8

MTD 753-06340

Hip Belt

$18.99

$

Usually ships in 3-6 days

0

9

MTD 753-06141

Support System
(Superseded to 753-05645)

$108.99

$

In Stock, Qty 6

0

10

MTD 912-0442

Nut
(Superseded to 712-0442)

$

$

Not available

11

MTD 750-04929

Spacer

$4.49

$

In Stock, only 4 left!

0

12

MTD 753-05648

Isolator Mount

$14.99

$

Usually ships in 3-6 days

0

13

MTD 753-05649

Intake Cover

$7.49

$

Usually ships in 3-6 days

0

14

MTD 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

15

MTD 753-05853

Impeller Housing Assembly

$

$

Not available

16

MTD 791-180050

Nut
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

17

MTD 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

18

MTD 753-05989

Impeller (Incl. Ref No. 17 & 19)

$28.99

$

Usually ships in 3-6 days

0

19

MTD 791-182409

Washer

$4.99

$

In Stock, Qty 5

0

20

MTD 731-06074

Throttle Retaining Clip

$4.49

$

Usually ships in 3-6 days

0

21

MTD 753-05289

Fuel Cap

$22.99

$

In Stock, Qty 8

0

22

MTD 753-05715

Fuel Tank Assembly (Incl. Ref No. 21)

$58.99

$

Usually ships in 3-6 days

0

23

MTD 753-05663

Stand

$18.99

$

In Stock, only 4 left!

0

24

MTD 753-05736

Engine Cover Assembly
(Superseded to 753-06654)

$22.99

$

Usually ships in 3-6 days

0

25

MTD 791-182348

Screw

$

$

Not available

26

MTD 753-06344

Grip

$

$

Not available
