316.794801 (41BR4BPG799) - Craftsman Blower (Sears) Engine Assembly Parts Diagram

Blower

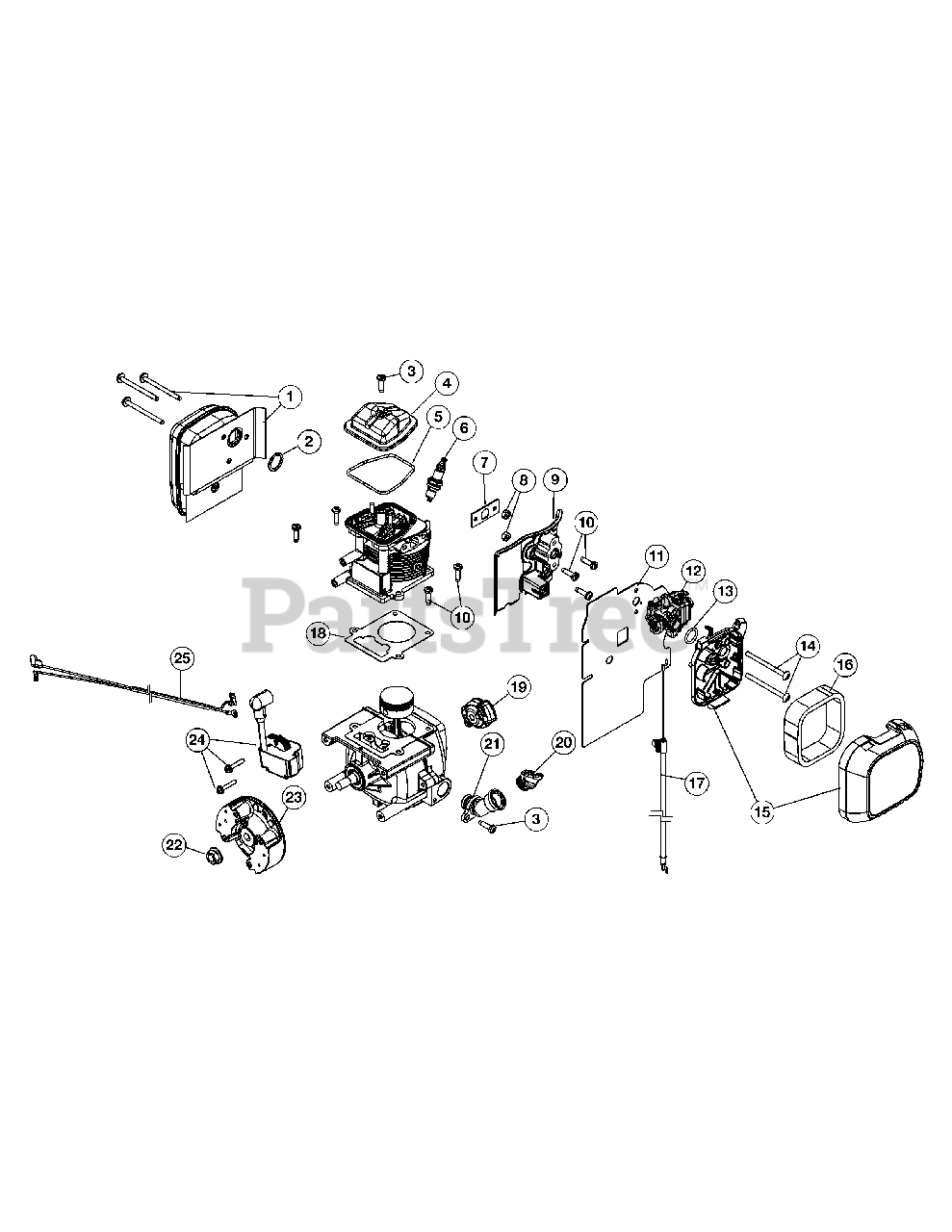

Engine Assembly Parts Diagram

  • Title
1

MTD 753-05669

Muffler Assembly

Note: (Incl. Ref No. 2)

$43.99

$

In Stock, only 1 left!

0

2

MTD 753-05670

Muffler Gasket

$10.99

$

Usually ships in 3-6 days

0

3

$4.49

$

In Stock, Qty 20+

0

4

MTD 753-05671

Rocker Cover

$13.99

$

Usually ships in 3-6 days

0

5

MTD 753-05672

Rocker Cover O-Ring

$10.99

$

Usually ships in 3-6 days

0

6

MTD 753-05255

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, Qty 7

0

7

MTD 753-05673

Insulator Gasket

$10.99

$

In Stock, only 1 left!

0

$6.99

$

Usually ships in 3-6 days

0

9

MTD 753-05674

Insulator

$15.99

$

Usually ships in 3-6 days

0

10

MTD 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

11

MTD 753-05675

Carburetor Gasket

$17.99

$

In Stock, only 1 left!

0

12

MTD 753-06002

Carburetor
(Superseded to 753-05676A)

$

$

Not available

13

MTD 791-181751

Carburetor O-Ring

$4.49

$

In Stock, Qty 19

0

14

$5.49

$

In Stock, Qty 20+

0

15

MTD 753-05852

Air Cleaner Assembly

Note: (Incl. Ref No. 16)

$25.99

$

In Stock, only 1 left!

0

16

MTD 753-05677

Air Filter

$4.49

$

Usually ships in 3-6 days

0

17

MTD 753-05970

Throttle Cable

$16.99

$

Usually ships in 3-6 days

0

18

MTD 753-05681

Cylinder Gasket

$10.99

$

Usually ships in 3-6 days

0

19

MTD 753-05635

Pawl Assembly

$

$

Not available

20

MTD 753-05400

Oil Plug
(Superseded to 753-05408)

$29.99

$

In Stock, only 1 left!

0

21

MTD 753-05682

Oil Fill Tube

Note: (Incl. Ref No. 3)

$10.99

$

In Stock, only 1 left!

0

22

$6.99

$

In Stock, only 1 left!

0

23

MTD 753-05688

Flywheel Asssembly

$45.99

$

Usually ships in 3-6 days

0

24

MTD 753-06003

Module Assembly

$42.99

$

Usually ships in 3-6 days

0

25

MTD 753-05690

Lead Wire

$19.99

$

Usually ships in 3-6 days

0

MTD 753-05974

Short Block Assembly
(Superseded to 753-08026)

Note: Not Shown

$146.99

$

In Stock, only 1 left!

0

MTD 753-05297

Spark Arrestor

Note: Not Shown

$28.99

$

Usually ships in 3-6 days

0
