316.794790 (41AR2BPG799) - Craftsman Blower (Sears) General Assembly Parts Diagram

Blower

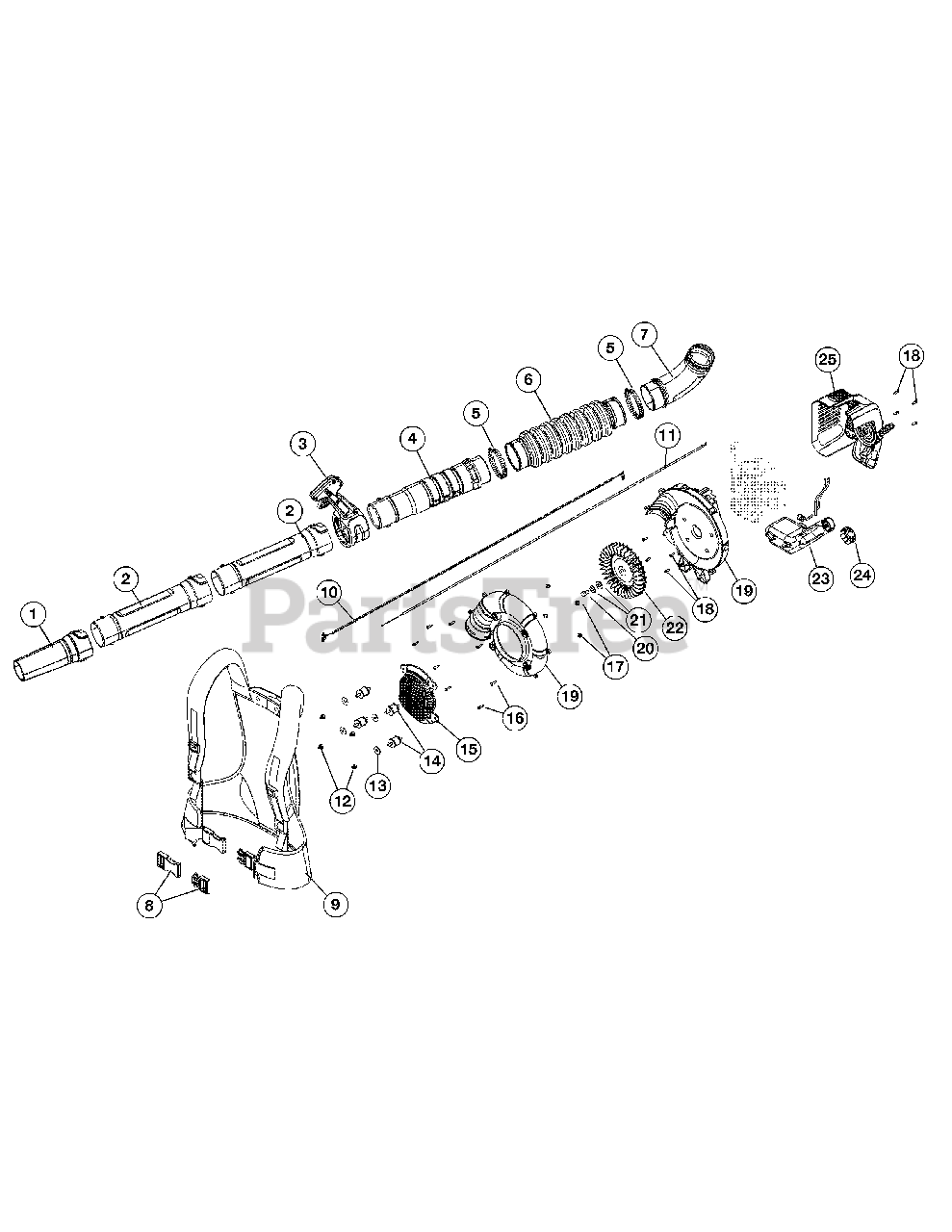

General Assembly Parts Diagram

  • Title

1

MTD 753-05637

Nozzle
(Superseded to 753-06000)

$13.99

$

In Stock, only 1 left!

0

2

MTD 753-05638

Lower Blower Tube
(Superseded to 753-05993)

$

$

Not available

3

MTD 753-05652

Throttle Grip Assembly

$

$

Not available

4

MTD 753-05639

Upper Blower Tube
(Superseded to 753-05993)

$

$

Not available

5

MTD 753-05640

Clamp
(Superseded to 726-04080)

$11.99

$

In Stock, only 2 left!

0

6

MTD 753-05641

Flex Tube

$31.99

$

Usually ships in 3-6 days

0

7

MTD 753-05642

Elbow

$

$

Not available

8

MTD 753-05655

Harness Clip
(Superseded to 731-06191)

$14.99

$

Usually ships in 3-6 days

0

9

MTD 753-05645

Harness

Note: (includes 8)

$108.99

$

In Stock, Qty 5

0

10

MTD 753-05643

Lead Wire

$21.99

$

Usually ships in 3-6 days

0

11

MTD 753-05644

Throttle Cable

$

$

Not available

12

MTD 753-05647

Nut
(Superseded to 912-0442)

$

$

Not available

13

MTD 753-05646

Spacer
(Superseded to 750-04929)

$4.49

$

In Stock, only 4 left!

0

14

MTD 753-05648

Insulator Mount

$14.99

$

Usually ships in 3-6 days

0

15

MTD 753-05649

Intake Cover

$7.49

$

Usually ships in 3-6 days

0

16

MTD 791-181345

Screw

$4.49

$

In Stock, only 4 left!

0

17

MTD 791-180050

Nut
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

18

MTD 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

19

MTD 753-05650

Impeller Housing Assembly

Note: ( includes 14 & 16-18)

$74.99

$

Usually ships in 3-6 days

0

20

MTD 791-182414

Bolt

$4.99

$

Usually ships in 3-6 days

0

21

MTD 753-04482

Impeller Hardware

Note: (includes 20)

$9.49

$

Usually ships in 3-6 days

0

22

MTD 753-05651

Impeller

Note: (includes 20 & 21)

$31.99

$

Usually ships in 3-6 days

0

23

MTD 753-05654

Fuel Tank Assembly
(Superseded to 753-08721)

$25.99

$

In Stock, only 1 left!

0

24

MTD 791-182529

Fuel Cap

$21.99

$

In Stock, only 4 left!

0

25

MTD 753-05726

Starter Housing Assembly

Note: (includes 16 & 18)

$35.99

$

In Stock, only 1 left!

0
