316.794611 (41CS4ESG799) - Craftsman Blower (Sears) General Assembly Parts Diagram

Blower

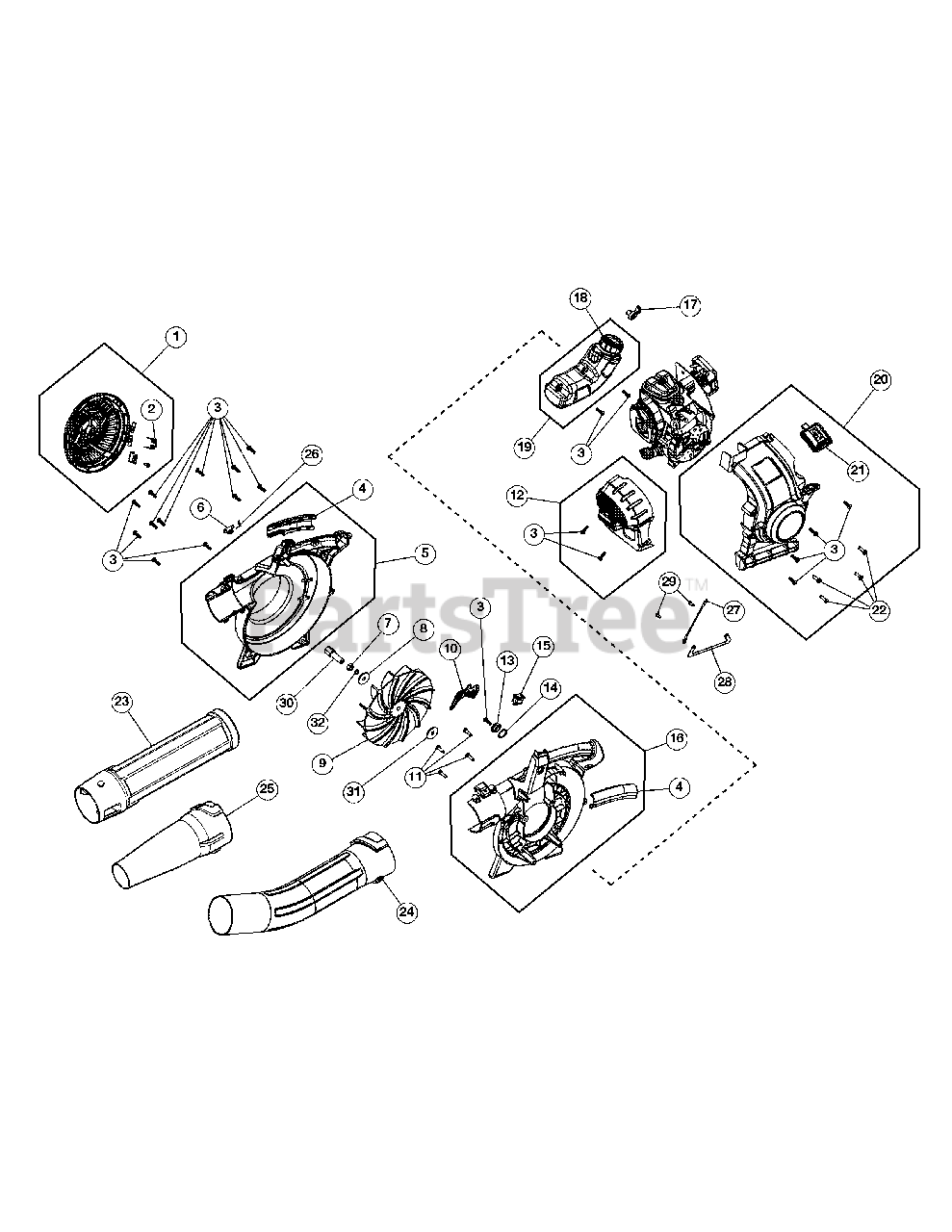

General Assembly Parts Diagram

  • Title
1

MTD 753-06716

Intake Cover Assembly

$5.99

$

Usually ships in 3-6 days

0

2

MTD 753-05918

Spring

$2.99

$

Usually ships in 3-6 days

0

3

$4.49

$

In Stock, Qty 20+

0

4

MTD 753-06711

Handle Grips

$3.49

$

Usually ships in 3-6 days

0

5

MTD 753-06679

Impeller Housing (Incl. 4)

$20.99

$

Usually ships in 3-6 days

0

6

MTD 753-05926

Latch Tube

$2.99

$

In Stock, only 1 left!

0

7

MTD 912-0237

Nut
(Superseded to 712-0237)

$

$

Not available

8

MTD 753-06444

Washer

$2.99

$

In Stock, Qty 5

0

9

MTD 753-05929

Impeller

$13.99

$

In Stock, Qty 20+

0

10

MTD 753-05930

Throttle Trigger

$

$

Not available

11

MTD 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

12

MTD 753-05931

Muffler Cover (Incl. 3)

$5.99

$

Usually ships in 3-6 days

0

13

MTD 753-05924

Inner Trigger Lock

$2.99

$

Usually ships in 3-6 days

0

14

MTD 753-05925

Wavey Washer
(Superseded to 736-04353)

$6.49

$

Usually ships in 3-6 days

0

15

$10.99

$

In Stock, Qty 12

0

16

MTD 753-06693

Impeller Housing (Incl. 4)

$17.99

$

In Stock, only 1 left!

0

17

MTD 753-05932

Outer Trigger Lock

$2.99

$

Usually ships in 3-6 days

0

18

MTD 753-05289

Fuel Cap

$22.99

$

In Stock, Qty 8

0

19

MTD 753-05933

Fuel Tank Assembly (Incl. 18)

$25.99

$

In Stock, Qty 8

0

20

MTD 753-05934

Engine Cover Assembly (Incl. 3, 21 & 22)

$47.99

$

Usually ships in 3-6 days

0

21

MTD 753-05935

Spark Plug Cover

$2.99

$

In Stock, only 1 left!

0

22

$4.49

$

In Stock, Qty 20+

0

23

MTD 753-05936

Upper Tube

$19.99

$

In Stock, only 1 left!

0

24

MTD 753-05938

Curved Lower Tube

$

$

Not available

25

MTD 753-06000

Nozzle

$13.99

$

In Stock, only 1 left!

0

26

MTD 753-05939

Latch Spring

$2.99

$

In Stock, Qty 9

0

27

MTD 753-05964

Wire Ground

$3.49

$

Usually ships in 3-6 days

0

28

MTD 753-05965

Strap Ground

$3.49

$

Usually ships in 3-6 days

0

29

MTD 1755

Screw

$3.99

$

Usually ships in 3-6 days

0

30

MTD 753-06700

Adapter

$5.49

$

In Stock, Qty 6

0

31

MTD 753-06806

Spacer

$3.49

$

In Stock, Qty 6

0

32

MTD 736-04110A

Bell/Lock Washer

$5.49

$

In Stock, only 1 left!

0
