316.794490 (41ADZ43C799) - Craftsman String Trimmer (2014) Engine Assembly Parts Diagram

String Trimmer

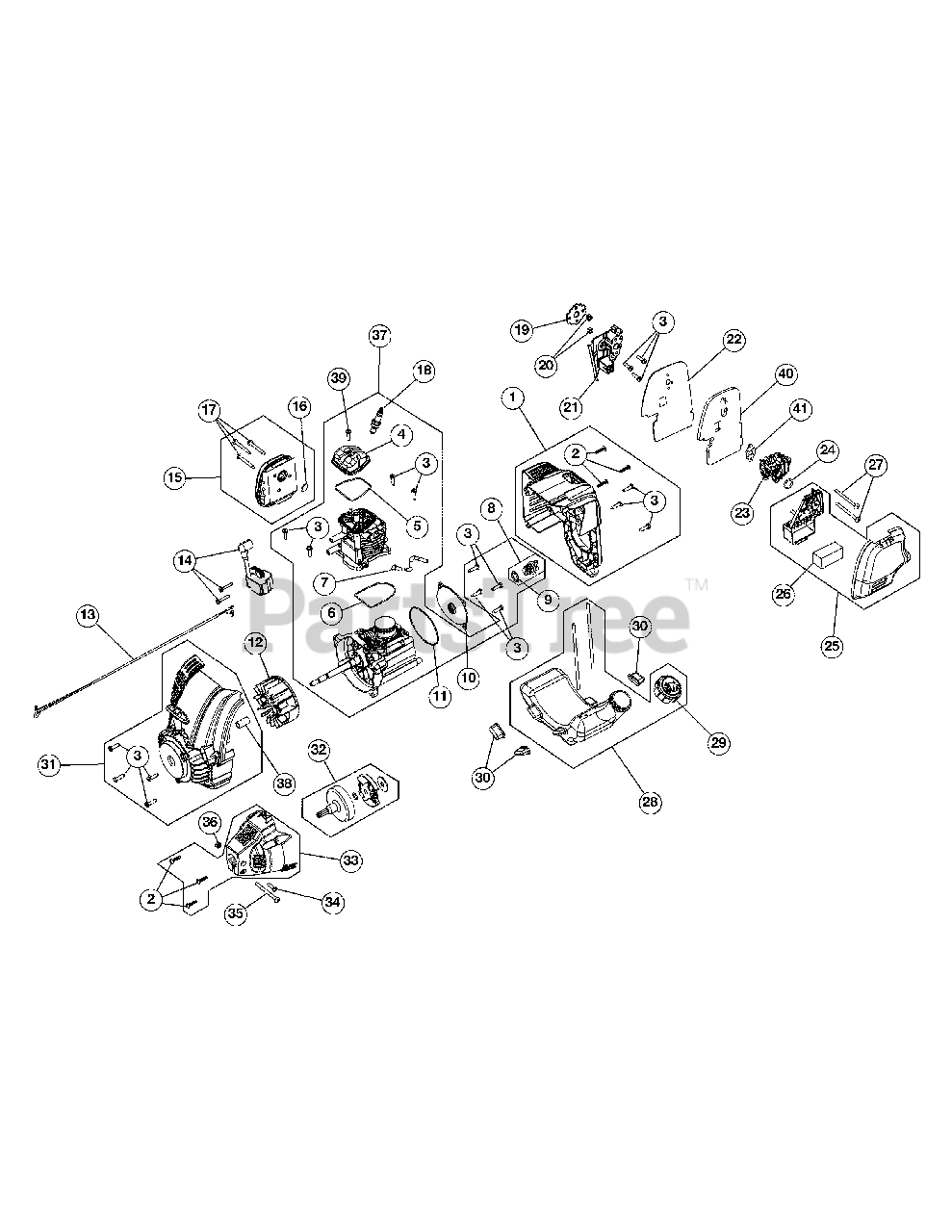

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06113

Engine Cover Assembly (Incl. 2 & 3)

$14.99

$

Usually ships in 3-6 days

0

2

MTD 710-04194

Cover Screw

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04604

Screw

$4.49

$

In Stock, only 3 left!

0

4

MTD 753-05901

Rocker Cover

$8.49

$

Usually ships in 3-6 days

0

5

MTD 753-05902

Rocker Cover O-Ring

$5.49

$

In Stock, only 2 left!

0

6

MTD 753-05910

Cylinder O-Ring

$3.49

$

In Stock, only 1 left!

0

7

MTD 791-182379

Breather Hose

$4.99

$

In Stock, only 1 left!

0

8

MTD 753-05408

Oil Plug (Incl. 9)

$29.99

$

In Stock, only 1 left!

0

9

MTD 791-182290

Oil Plug O-Ring

$4.99

$

In Stock, Qty 11

0

10

MTD 753-06259

Crankcase Cover

$8.49

$

Usually ships in 3-6 days

0

11

MTD 753-05238

Crankcase Cover O-Ring

$10.99

$

In Stock, only 1 left!

0

12

MTD 753-06221

Flywheel Assembly

$21.99

$

Usually ships in 3-6 days

0

13

MTD 753-05264

Lead Wires

$16.99

$

In Stock, only 1 left!

0

14

MTD 753-08208

Module Assembly

$26.99

$

In Stock, only 1 left!

0

15

MTD 753-05245

Muffler Assembly (Incl. 16 & 17)

$92.99

$

Usually ships in 3-6 days

0

16

MTD 753-05244

Muffler Gasket

$5.99

$

In Stock, Qty 8

0

17

MTD 710-04487

Muffler Screw
(Superseded to 710-04809)

$3.49

$

In Stock, only 1 left!

0

18

MTD 794-00043

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, only 4 left!

0

19

MTD 753-05247

Insulator Gasket

$

$

Not available

20

MTD 712-04099

Nut

$6.99

$

Usually ships in 3-6 days

0

21

MTD 753-06947

Insulator

$7.49

$

In Stock, only 1 left!

0

22

MTD 753-06948

Carburetor Gasket

$4.99

$

In Stock, only 2 left!

0

23

MTD 753-08174

Carburetor w/Primer

$34.99

$

In Stock, Qty 13

0

24

MTD 791-181751

Air Cleaner O-Ring

$4.49

$

In Stock, Qty 20+

0

25

MTD 753-06796

Air Cleaner Cover Assembly (Incl. 26)

$7.49

$

In Stock, Qty 20+

0

26

MTD 753-05254

Air Filter

$5.99

$

In Stock, only 3 left!

0

27

MTD 710-04517

Screw

$5.49

$

In Stock, Qty 20+

0

28

MTD 753-06797

Fuel Tank Assembly w/Fuel Lines (Incl. 29)

$21.99

$

In Stock, Qty 10

0

29

MTD 753-1229

Fuel Cap

$22.99

$

In Stock, only 1 left!

0

30

MTD 753-05259

Fuel Tank Pads

$6.99

$

In Stock, Qty 20+

0

31

MTD 753-06498

Starter Housing Assembly (Incl. 3 & 38)

$47.99

$

In Stock, only 2 left!

0

32

MTD 753-06281

Clutch Assembly

$22.99

$

In Stock, only 2 left!

0

33

MTD 753-05263

Clutch Cover (Incl. 2)

$27.99

$

In Stock, only 1 left!

0

34

MTD 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

35

MTD 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

Usually ships in 3-6 days

0

36

MTD 712-0161

Nut

$4.49

$

In Stock, only 2 left!

0

37

MTD 753-06674

Shortblock Assembly

Note: (Incl. Crankcase, Cylinder, 3-9, 11, 18 & 39)

$95.99

$

In Stock, only 3 left!

0

38

MTD 750-04434

Spacer

$6.99

$

In Stock, only 4 left!

0

39

MTD 791-181025

Rocker Cover Screw

$2.99

$

Usually ships in 3-6 days

0

40

MTD 753-06949

Heat Shield

$5.99

$

In Stock, only 1 left!

0

41

MTD 791-181709

Gasket

$4.99

$

In Stock, Qty 20+
