316.794030 (41DR2BEG799) - Craftsman String Trimmer (Sears) Engine Assembly Parts Diagram

String Trimmer

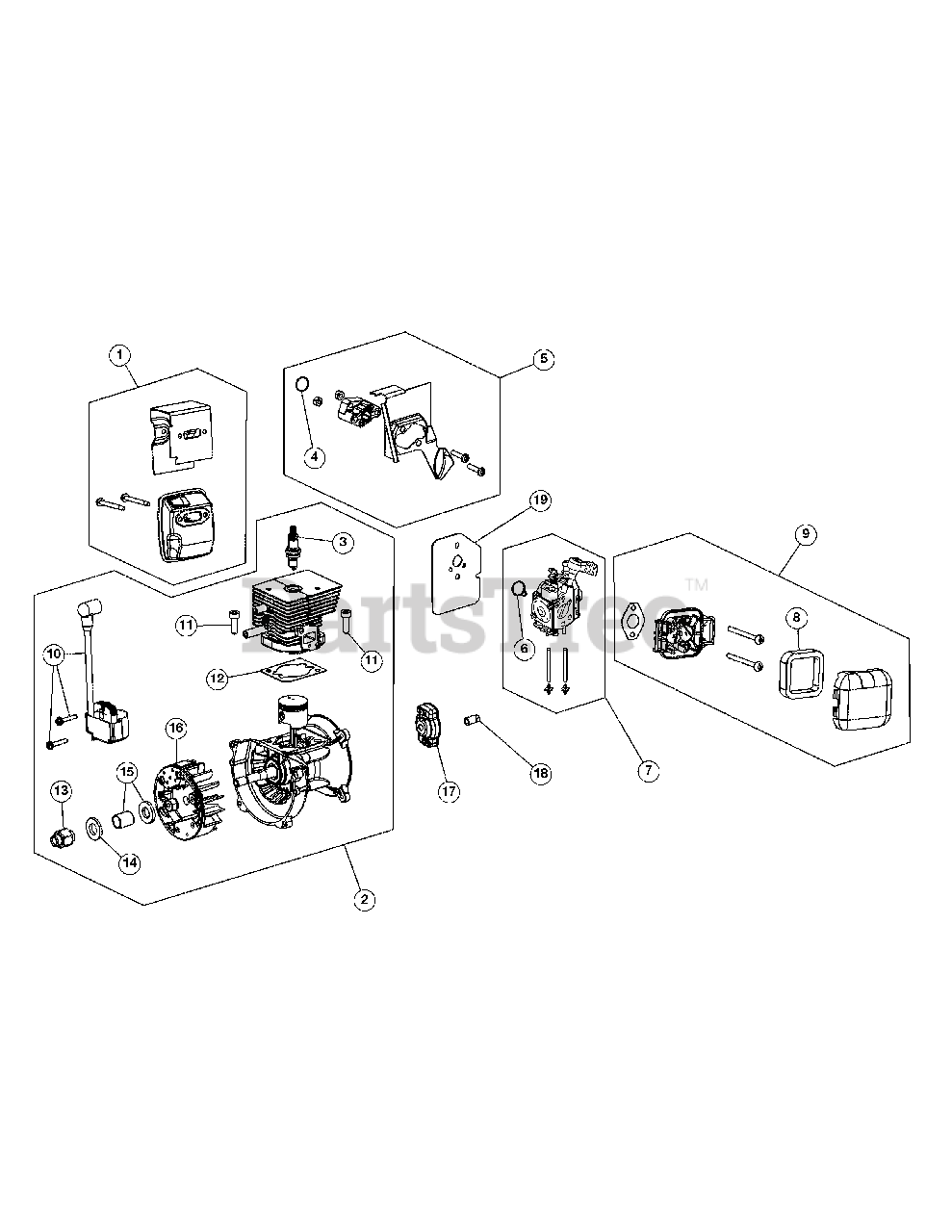

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06418

Muffler Assembly
(Superseded to 753-08745)

$26.99

$

In Stock, only 1 left!

0

2

MTD 753-06441

Shortblock Assembly (Incl. 3 & 10-16)

$115.99

$

Usually ships in 3-6 days

0

3

MTD 753-06193

Spark Plug
(Superseded to 753-06847)

$7.49

$

In Stock, Qty 20+

0

4

MTD 753-06184

Insulator O-Ring

$3.49

$

In Stock, Qty 20+

0

5

MTD 753-06189

Insulator Assembly (Incl. 4)

$7.99

$

In Stock, only 3 left!

0

6

MTD 753-06253

Carburetor Gasket

$3.49

$

In Stock, Qty 20+

0

7

MTD 753-06288

Carburetor Assembly (Incl. 6)

$37.99

$

In Stock, only 2 left!

0

8

MTD 791-181757

Air Filter

$3.99

$

In Stock, Qty 20+

0

9

MTD 753-08274

Aircleaner Assembly (Incl. 8)

$8.99

$

Usually ships in 3-6 days

0

10

MTD 753-06443

Module Assembly

$26.99

$

In Stock, Qty 6

0

11

MTD 710-04715

Screw

$6.99

$

Usually ships in 3-6 days

0

12

MTD 753-06827

Cylinder Gasket

$3.49

$

In Stock, only 1 left!

0

13

MTD 753-05705

Flywheel Adapter

$9.49

$

In Stock, only 1 left!

0

14

MTD 936-0326

Washer
(Superseded to 736-0326)

$4.49

$

In Stock, only 4 left!

0

15

MTD 753-05707

Bushing

$3.49

$

In Stock, only 2 left!

0

16

MTD 753-06246

Flywheel Assembly

$21.99

$

In Stock, only 1 left!

0

17

MTD 753-06091

Pawl Assembly

$9.49

$

In Stock, only 3 left!

0

18

MTD 753-06104

Electric Start Adapter

$4.49

$

In Stock, Qty 20+

0

19

MTD 721-04721

Gasket

$3.49

$

In Stock, Qty 5

0
