316.792640 (41AJXL-C799) - Craftsman Accessory (Sears) General Assembly Parts Diagram

Accessory

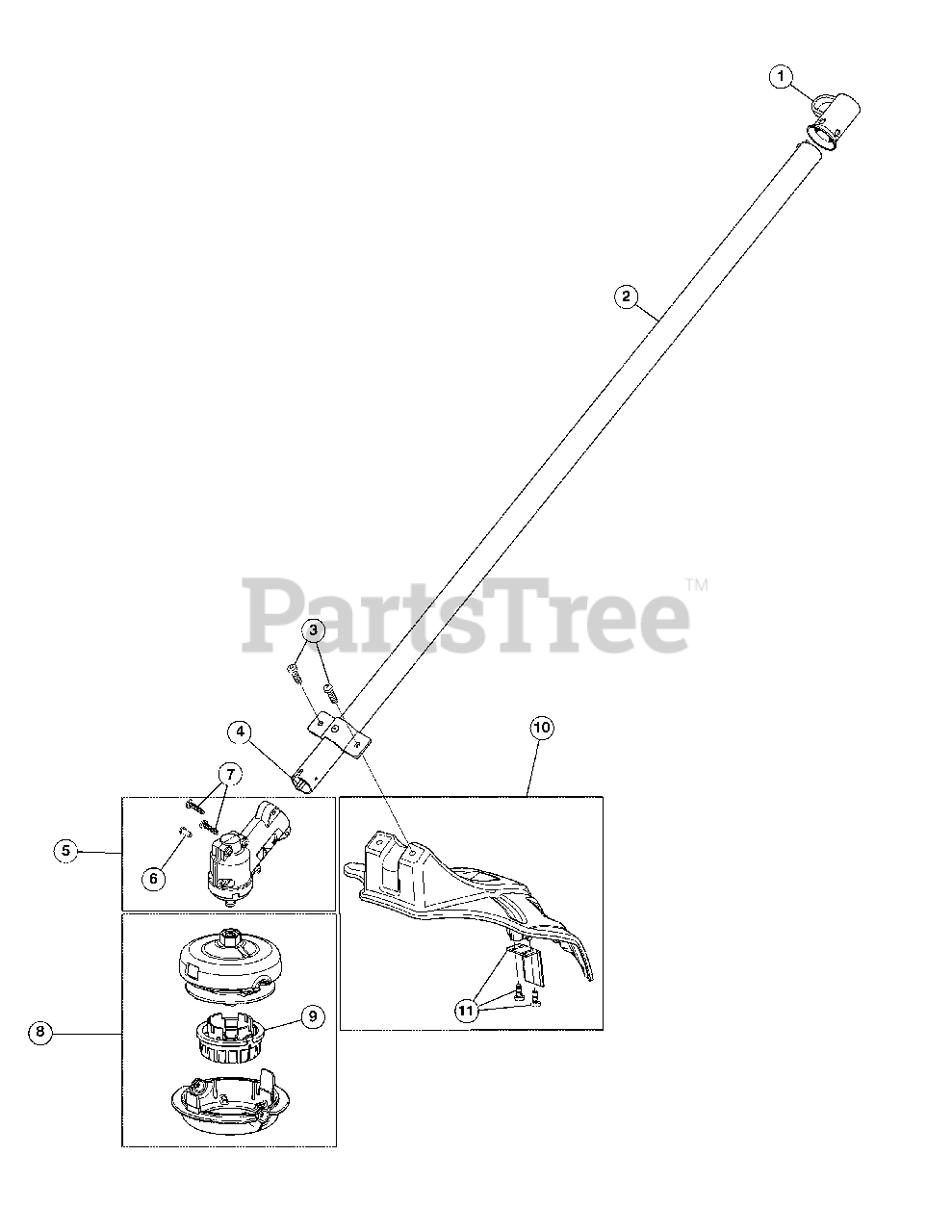

General Assembly Parts Diagram

  • Title
1

MTD 731-08926

Hanger

$2.99

$

In Stock, only 3 left!

0

2

MTD 753-08196

Lower Drive Shaft Housing Assembly

$24.99

$

Usually ships in 3-6 days

0

3

MTD 753-06125

Shield Mounting Screws

$6.99

$

In Stock, only 4 left!

0

4

MTD 753-08192

Lower Flexible Drive Shaft

$6.99

$

In Stock, only 2 left!

0

5

MTD 753-08180

Gear Box Assembly (Incl. 6 & 7)

$45.99

$

In Stock, only 2 left!

0

6

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 4 left!

0

7

MTD 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, only 1 left!

0

8

MTD 753-08197

Cutting Head Assembly (Incl. 9)

$13.99

$

In Stock, Qty 7

0

9

MTD 753-08157

Bump Knob

$5.49

$

In Stock, Qty 9

0

10

MTD 753-08177

Shield Assembly (Incl. 11)

$12.99

$

In Stock, only 2 left!

0

11

MTD 753-08178

Blade Assembly

$2.99

$

In Stock, Qty 5

0
