316.792040 (41AD304G799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

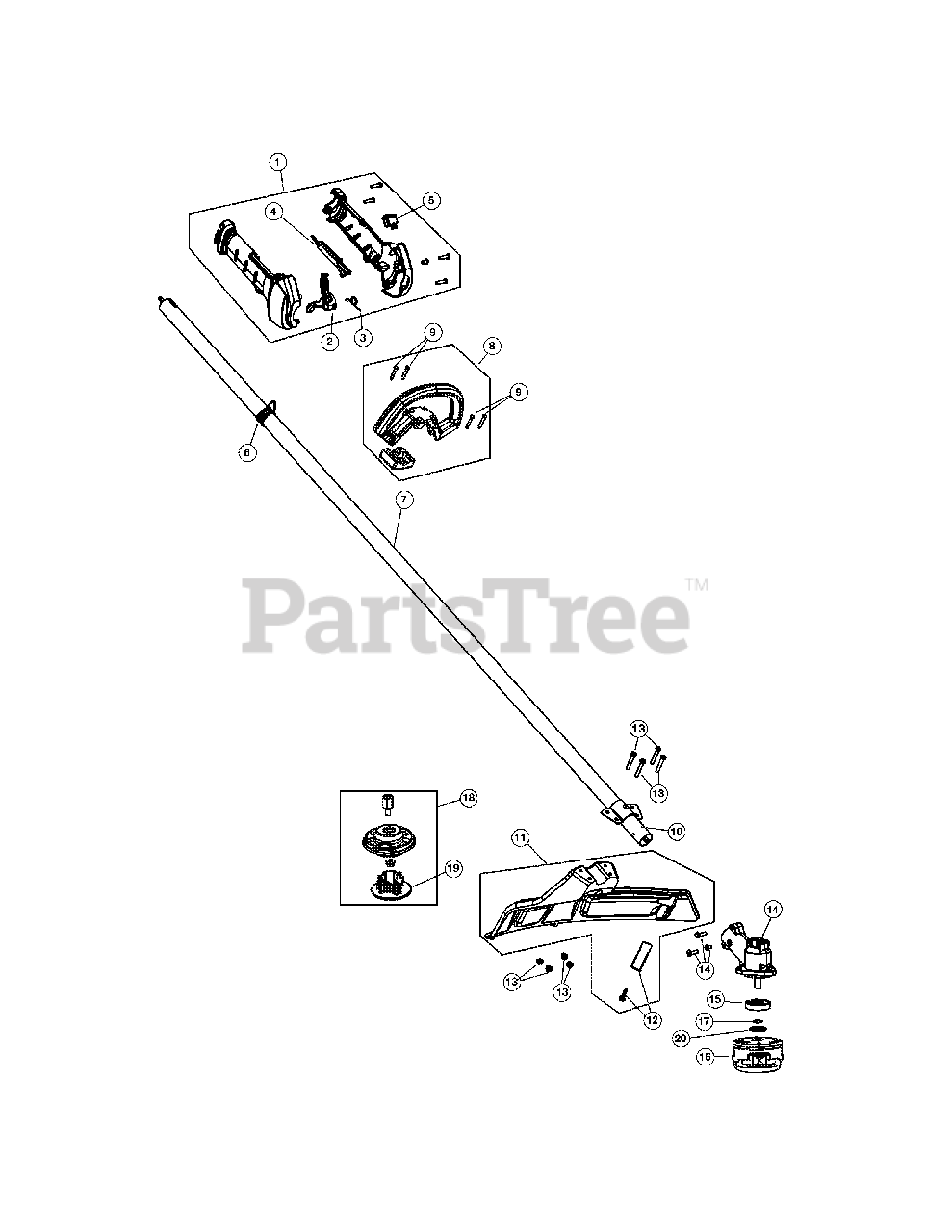

General Assembly Parts Diagram

  • Title

1

MTD 753-05296

Throttle Housing Assembly (includes 2-5)
(Superseded to 753-09645)

$12.99

$

Usually ships in 3-6 days

0

2

MTD 731-04970A-2

Throttle Trigger
(Superseded to 731-04970B-10)

$9.49

$

In Stock, Qty 20+

0

3

MTD 753-05007

Spring

$5.49

$

In Stock, only 3 left!

0

4

MTD 731-04971-2

Throttle Lock-Out
(Superseded to 731-04971C-10)

$5.49

$

In Stock, only 1 left!

0

5

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

6

MTD 791-610327

Shoulder Strap Clip

$32.99

$

Usually ships in 3-6 days

0

7

MTD 753-05474

Driver Shaft Housing

$

$

Not available

8

MTD 753-05008

D-Handle Assembly (includes 9)

$31.99

$

In Stock, only 2 left!

0

9

MTD 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

10

MTD 753-06098

Flexible Drive Shaft

$14.99

$

Usually ships in 3-6 days

0

11

MTD 753-05820

Shield Assembly (includes 12)

$24.99

$

In Stock, only 3 left!

0

12

MTD 753-05821

Blade Assembly

$9.49

$

Usually ships in 3-6 days

0

13

MTD 753-06125

Screw & Nut

$6.99

$

In Stock, only 4 left!

0

14

MTD 791-182193

Gearbox

$99.99

$

In Stock, only 2 left!

0

15

MTD 791-182196

Gearbox Spacer

$22.99

$

In Stock, only 1 left!

0

16

MTD 753-06102

Cutting Head Assembly

$17.99

$

Usually ships in 3-6 days

0

17

MTD 753-04348

Palnut

$6.99

$

In Stock, only 3 left!

0

18

MTD 753-05779

Fixed Line Head

$

$

Not available

19

MTD 753-05780

Glide Plate

$9.49

$

Usually ships in 3-6 days

0

20

MTD 753-06395

Washer

$2.99

$

Usually ships in 3-6 days

0

MTD 791-613226

Locking Rod Tool

Note: Not shown

$14.99

$

In Stock, only 1 left!

0

MTD 697-00368

Fixed Line

Note: Not shown

$

$

Not available

MTD 753-05898

Shoulder Strap
(Superseded to 753-05896)

Note: Not shown

$28.99

$

Usually ships in 3-6 days

0
