316.792021 (41CD604G799) - Craftsman String Trimmer (Sears) Engine Assembly Parts Diagram

String Trimmer

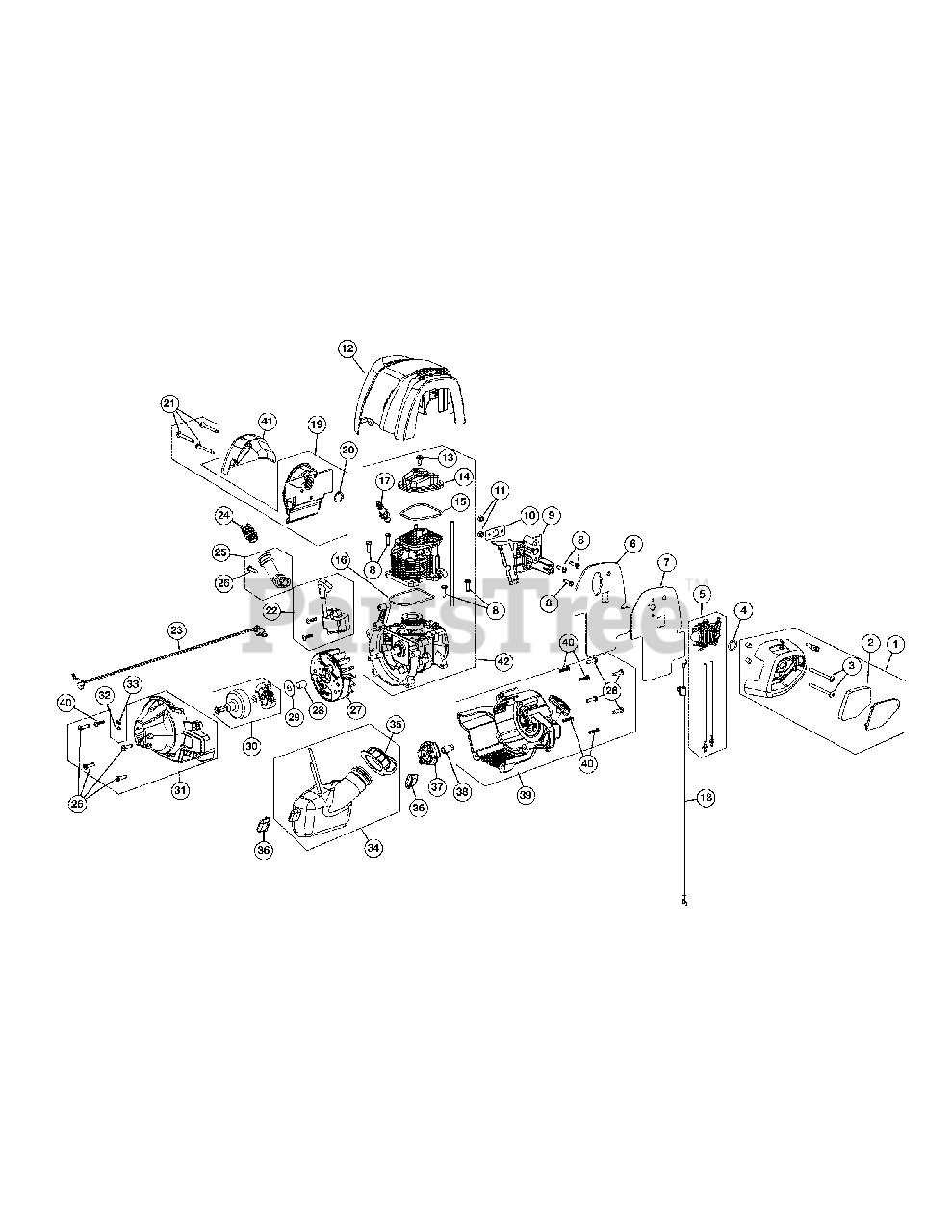

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06084

Aircleaner Assembly (includes 2 & 3)

$11.99

$

In Stock, only 1 left!

0

2

MTD 753-06085

Air Filter

$3.49

$

In Stock, Qty 20+

0

3

MTD 710-04517

Screw

$5.49

$

In Stock, Qty 20+

0

4

MTD 791-181751

Carburetor O-Ring

$4.49

$

In Stock, Qty 19

0

5

MTD 753-06083

Carburetor Assembly

Note: Does not Incl. Fuel Line, order separately

$52.99

$

Usually ships in 3-6 days

0

6

MTD 753-06122

Heat Shield

$5.49

$

Usually ships in 3-6 days

0

7

MTD 753-06082

Carburetor Baffle

$3.99

$

In Stock, Qty 6

0

8

MTD 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

9

MTD 753-05904

Insulator

$8.49

$

Usually ships in 3-6 days

0

10

MTD 753-05673

Insulator Gasket

$10.99

$

Usually ships in 3-6 days

0

11

MTD 712-04099

Nut

$6.99

$

Usually ships in 3-6 days

0

12

MTD 753-06097

Engine Cover

$

$

Not available

13

MTD 791-181025

Screw

$2.99

$

Usually ships in 3-6 days

0

14

MTD 753-05901

Valve Cover

$8.49

$

Usually ships in 3-6 days

0

15

MTD 753-05902

Valve O-Ring

$5.49

$

In Stock, Qty 11

0

16

MTD 753-05910

Cylinder O-Ring

$3.49

$

In Stock, only 1 left!

0

17

MTD 794-00043

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, Qty 6

0

18

MTD 753-06166

Throttle Cable

$15.99

$

In Stock, only 1 left!

0

19

MTD 753-06334

Muffler Assembly (includes 20 & 21)

$17.99

$

Usually ships in 3-6 days

0

20

MTD 753-05244

Muffler Gasket

$5.99

$

In Stock, Qty 8

0

21

MTD 710-04487

Muffler Bolt
(Superseded to 710-04809)

$3.49

$

In Stock, Qty 5

0

22

MTD 753-05907

Module Assembly

$52.99

$

In Stock, only 1 left!

0

23

MTD 753-06167

Lead Wires
(Superseded to 794-00047A)

$5.99

$

In Stock, Qty 7

0

24

MTD 753-05400

Oil Plug Assembly
(Superseded to 753-05408)

$29.99

$

In Stock, only 1 left!

0

25

MTD 753-06087

Oil Fill Tube Assembly (includes 26)

$6.49

$

In Stock, Qty 7

0

26

MTD 710-04604

Cover Screw

$4.49

$

In Stock, Qty 20+

0

27

MTD 753-05815

Flywheel

$23.99

$

Usually ships in 3-6 days

0

28

MTD 753-05814

Spacer

$4.49

$

In Stock, Qty 7

0

29

MTD 9162-1

Clutch Washer

$4.49

$

In Stock, only 3 left!

0

30

MTD 753-05860

Clutch Assembly

$25.99

$

In Stock, Qty 10

0

31

MTD 753-06335

Clutch Cover Assembly (includes 26 & 40)

$5.49

$

In Stock, only 3 left!

0

32

MTD 791-182519

Anti-rotation Screw

$4.99

$

In Stock, only 4 left!

0

33

MTD 753-04291

Clamp Screw & Nut

$

$

Not available

34

MTD 753-06093

Fuel Tank (includes 36)

$23.99

$

In Stock, only 1 left!

0

35

MTD 753-05289

Fuel Cap

$22.99

$

In Stock, Qty 8

0

36

MTD 753-05259

Fuel Tank Pad

$6.99

$

In Stock, Qty 20+

0

37

MTD 753-06091

Pawl Assembly

$9.49

$

In Stock, only 3 left!

0

38

MTD 753-06104

Electric Start Adapter

$4.49

$

In Stock, Qty 20+

0

39

MTD 753-06096

Starter Cover Assembly (includes 26 & 40)

$26.99

$

Usually ships in 3-6 days

0

40

MTD 710-04194

Starter Screw

$4.49

$

In Stock, Qty 20+

0

41

MTD 753-06101

Muffler Shield

$5.99

$

Usually ships in 3-6 days

0

42

MTD 753-06333

Short Block Assembly

Note: (includes Crankcase, Cylinder, 8 & 13-17)

$

$

Not available

MTD 49M2027P799

Electric Start

Note: Not shown

$

$

Currently unavailable

MTD 49MESCBL799

Start Bit

Note: Not shown

$

$

Not available
