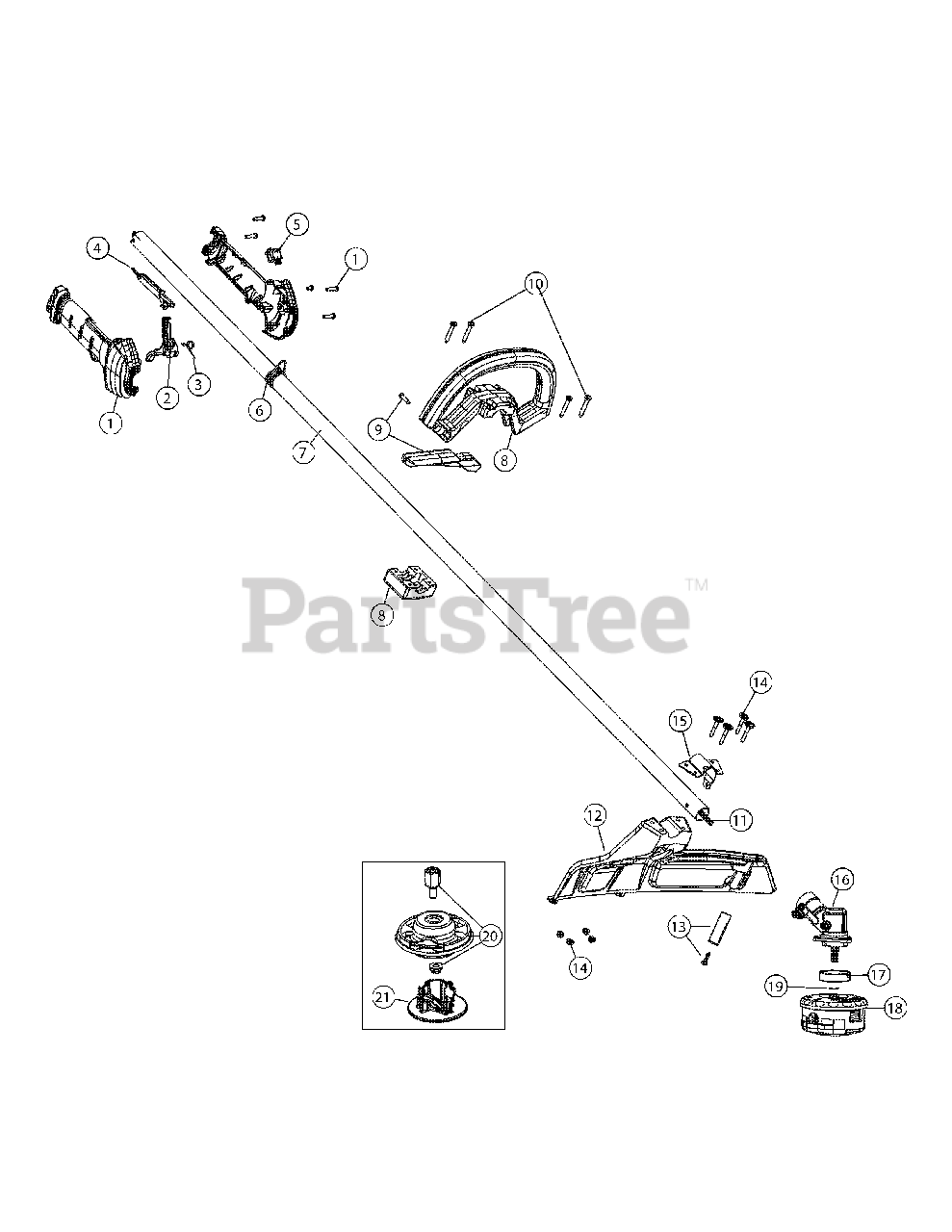

316.792020 (41AD604G799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-05296

Throttle Housing Assembly
(Superseded to 753-09645)

Note: (Incl. Ref No. 2-5)

$12.99

$

Usually ships in 3-6 days

0

2

MTD 731-04970A-2

Throttle Trigger
(Superseded to 731-04970B-10)

$9.49

$

In Stock, Qty 20+

0

3

MTD 753-05007

Spring

$5.49

$

In Stock, only 2 left!

0

4

MTD 731-04971-2

Throttle Lock-out
(Superseded to 731-04971C-10)

$5.49

$

In Stock, only 1 left!

0

5

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

6

MTD 791-610327

Shoulder Strap Clip

$32.99

$

Usually ships in 3-6 days

0

7

MTD 753-05474

Shaft Housing

$

$

Not available

8

MTD 753-05008

D-Handle Assembly

Note: (Incl. Ref No. 9 & 10)

$31.99

$

In Stock, only 2 left!

0

9

MTD 753-05295

Barrier Bar Assembly

$36.99

$

Usually ships in 3-6 days

0

10

MTD 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

11

MTD 753-06098

Flexible Drive Shaft

$14.99

$

Usually ships in 3-6 days

0

12

MTD 753-05820

Shield Assembly

Note: (Incl. Ref No. 13)

$24.99

$

In Stock, only 1 left!

0

13

MTD 753-05821

Blade Assembly

$9.49

$

Usually ships in 3-6 days

0

14

MTD 753-05822

Screw

$6.99

$

Usually ships in 3-6 days

0

15

MTD 753-06089

Guard Mounting Bracket

$

$

Not available

16

MTD 791-182193

Gearbox

$99.99

$

In Stock, only 2 left!

0

17

MTD 791-182196

Gearbox Spacer

$22.99

$

In Stock, only 2 left!

0

18

MTD 753-06102

Cutting Head Assembly

$17.99

$

Usually ships in 3-6 days

0

18

MTD 753-06149

Kit, Speed Spool

Note: Not shown, Kit contains head cover, spring and 4 eyelets for 753-06102 assembly.

$8.99

$

In Stock, Qty 8

0

19

MTD 753-04348

Palnut

$6.99

$

In Stock, only 3 left!

0

20

MTD 753-05779

Fixed Line Head

$

$

Not available

21

MTD 753-05780

Glide Plate

$9.49

$

Usually ships in 3-6 days

0

MTD 697-00368

Fixed Line, Tube

Note: Accessory, Not shown

$

$

Not available
