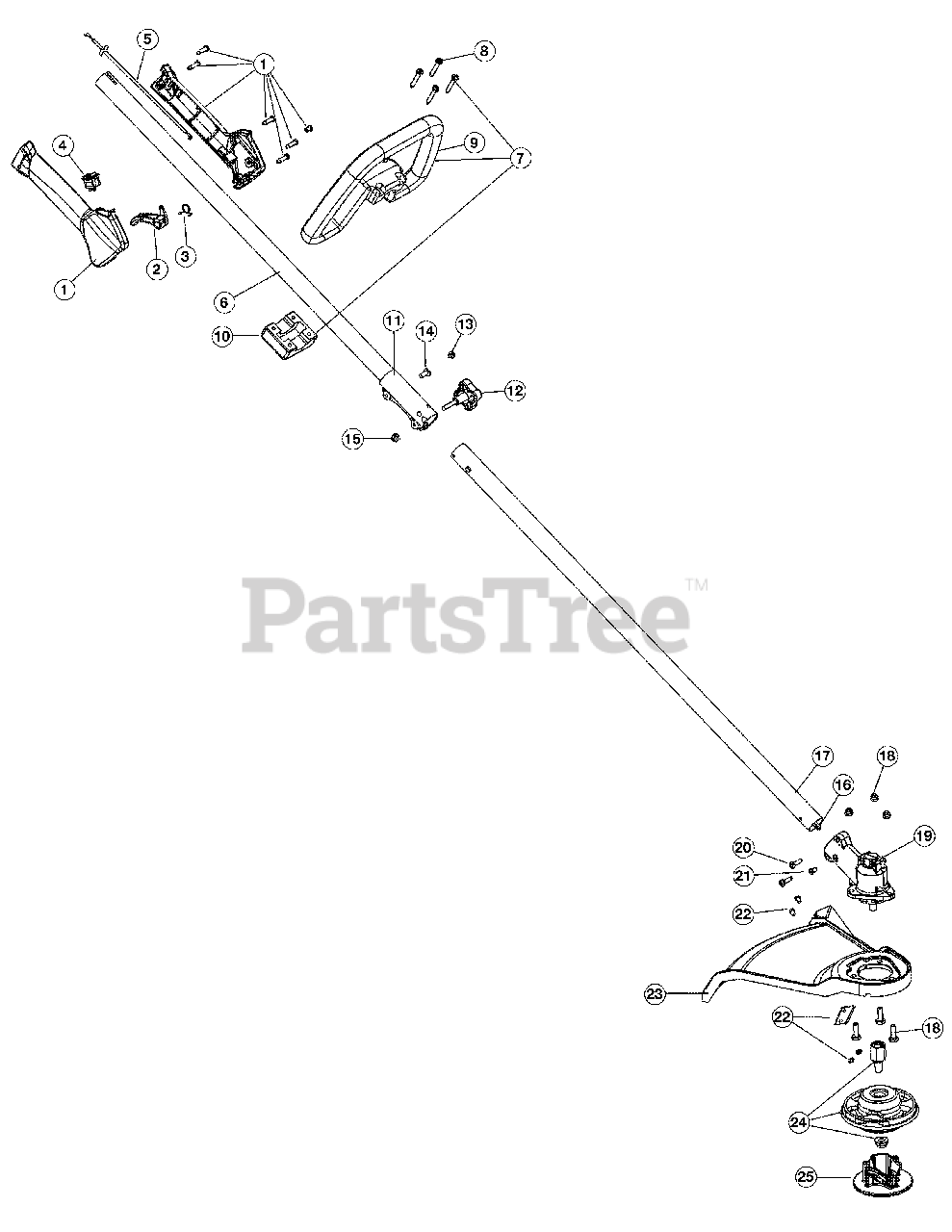

316.791970 (41AD578C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly

Note: (Incl.Ref No. 2-4)

$21.99

$

In Stock, Qty 7

0

2

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

MTD 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

5

MTD 753-05266

Throttle Cable Assembly

$20.99

$

In Stock, Qty 12

0

6

MTD 769-04236

Upper Drive Shaft Housing

$

$

Currently unavailable

7

MTD 791-180869

Deluxe D-Handle Assembly

Note: (Incl.Ref No.8-10)

$

$

Not available

8

MTD 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

9

MTD 791-182167

D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

D-Handle Base

$

$

Not available

11

MTD 753-1190

Split Boom Coupler

Note: (Incl.Ref No. 12-15)

$23.99

$

In Stock, only 1 left!

0

12

MTD 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

Note: (Incl.Ref No. 15)

$

$

Not available

13

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 7

0

14

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

15

MTD 753-04386

Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 5

0

16

MTD 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

17

MTD 753-04504

Lower Drive Shaft Housing

$69.99

$

In Stock, only 1 left!

0

18

MTD 791-182200

Shield Mount Screw Assembly

$6.99

$

In Stock, only 2 left!

0

19

MTD 753-05569

Gearbox Assembly

Note: (Incl.Ref No. 20 & 21)

$

$

Not available

20

MTD 791-182195

Gearbox Screw

$7.49

$

In Stock, only 1 left!

0

21

MTD 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

22

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

23

MTD 791-182189

Shield Assembly

Note: (Incl.Ref No.22)

$65.99

$

Usually ships in 3-6 days

0

24

MTD 753-05779

Cutting Head Assembly

Note: (Incl.Ref No.25)

$

$

Not available

25

MTD 753-05780

Cutting Head Cap

$9.49

$

Usually ships in 3-6 days

0

MTD 753-05038

Tube of Line
(Superseded to 697-00368)

$

$

Not available
