316.791932 (41DD588C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

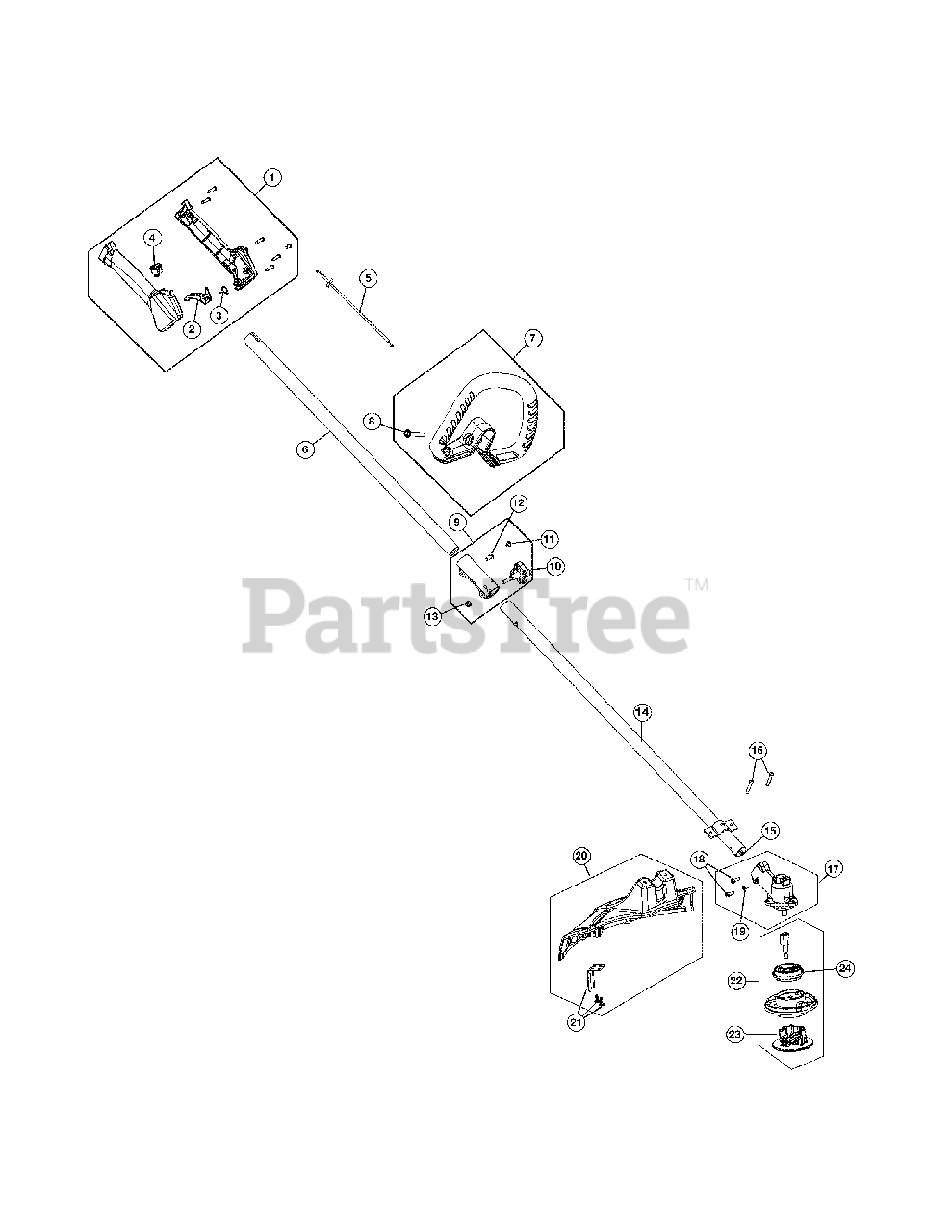

  • Title

1

MTD 753-04234

Throttle Housing Assembly (Incl Ref No. 2-4)

$21.99

$

In Stock, Qty 7

0

2

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

MTD 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

5

MTD 753-05266

Throttle Cable Assembly

$20.99

$

In Stock, Qty 12

0

6

MTD 753-04236

Upper Drive Shaft Assembly

$94.99

$

In Stock, Qty 5

0

7

MTD 753-06039

D-Handle Assembly (Incl Ref No. 8)

$11.99

$

Usually ships in 3-6 days

0

8

MTD 753-06040

Screw

$6.99

$

In Stock, only 1 left!

0

9

MTD 753-1190

Split Boom Coupler (Incl Ref No. 10-13)

$23.99

$

In Stock, only 1 left!

0

10

MTD 791-181981

Adjustment Knob (Incl Ref No. 13)
(Superseded to 697-00661-9)

$

$

Not available

11

MTD 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, only 3 left!

0

12

MTD 791-181617

Coupler Bolt

$5.49

$

In Stock, Qty 11

0

13

MTD 712-04018A

Adjustment Knob Nut

$4.49

$

In Stock, Qty 5

0

14

MTD 753-06139

Lower Drive Shaft Housing

$20.99

$

In Stock, Qty 20+

0

15

MTD 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

16

MTD 753-06125

Shield Mount Screw Assembly

$6.99

$

In Stock, only 4 left!

0

17

MTD 791-182193

Gearbox Assembly (Incl Ref No. 18 & 19)

$99.99

$

In Stock, only 2 left!

0

18

MTD 791-182195

Gearbox Screw

$7.49

$

In Stock, Qty 20+

0

19

MTD 791-182519

Gearbox Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

20

MTD 753-06292

Shield Assembly (Incl Ref No. 21)

$14.99

$

Usually ships in 3-6 days

0

21

MTD 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 5

0

22

MTD 753-05779

Cutting Head Assembly (Incl Ref No. 23 & 24)

$

$

Not available

23

MTD 753-05780

Cutting Head Cap

$9.49

$

Usually ships in 3-6 days

0

24

MTD 791-182196

Spacer

$22.99

$

In Stock, only 1 left!

0

MTD 697-00368

Tube of Line

Note: Not shown

$

$

Not available
