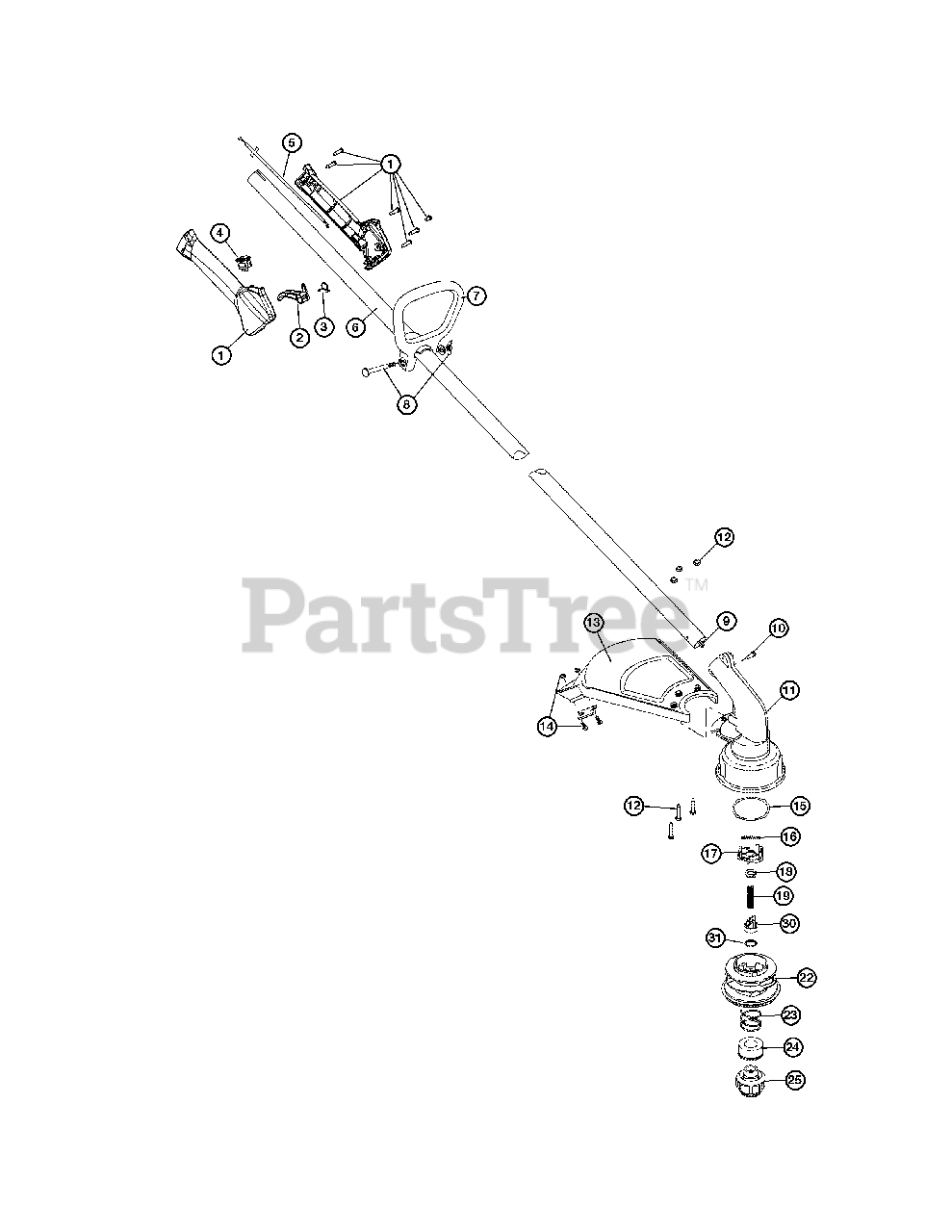

316.791910 (41AD546G799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly

Note: (Incl. Ref. No. 2-4)

$21.99

$

In Stock, Qty 7

0

2

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

MTD 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

5

MTD 753-05266

Throttle Cable Assembly

$20.99

$

In Stock, Qty 12

0

6

MTD 791-181808

Drive Shaft Housing

$

$

Not available

7

MTD 753-05461

D-Handle Assembly

Note: (Incl. Ref. No. 8)

$22.99

$

Usually ships in 3-6 days

0

8

MTD 791-181587

D-Handle Hardware

$19.99

$

In Stock, only 1 left!

0

9

MTD 791-181817

Flexible Drive Shaft

$70.99

$

Usually ships in 3-6 days

0

10

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

11

MTD 753-05841

Gear Box Assembly
(Superseded to 753-06389)

$

$

Not available

12

MTD 791-180547

Shield Mounting Hardware

$

$

Not available

13

MTD 791-180548

Shield Assembly

Note: (Incl. Ref. No. 15)

$

$

Not available

14

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

15

MTD 791-181561

Thrust Washer

$4.49

$

In Stock, only 4 left!

0

16

MTD 753-04257

Slider

$7.49

$

In Stock, only 1 left!

0

17

MTD 791-181459

Small Spring

$4.49

$

In Stock, only 2 left!

0

18

MTD 791-181532

E-Clip

$4.49

$

In Stock, Qty 8

0

19

MTD 791-181531

Spring

$4.49

$

In Stock, Qty 9

0

20

MTD 791-181462

Plunger

$

$

Not available

21

MTD 791-181463

C-Clip

$3.99

$

Usually ships in 3-6 days

0

22

MTD 791-181772

Inner Reel

$18.99

$

Usually ships in 3-6 days

0

23

MTD 791-181465B

Large Spring

$10.99

$

In Stock, only 1 left!

0

24

MTD 791-181467

Foam Seal

$

$

Not available

25

MTD 791-181468B

Bump Knob Assembly

Note: (Incl. Ref. No. 23 & 24)

$

$

Not available
